E-9
OPEN
OPEN
STA

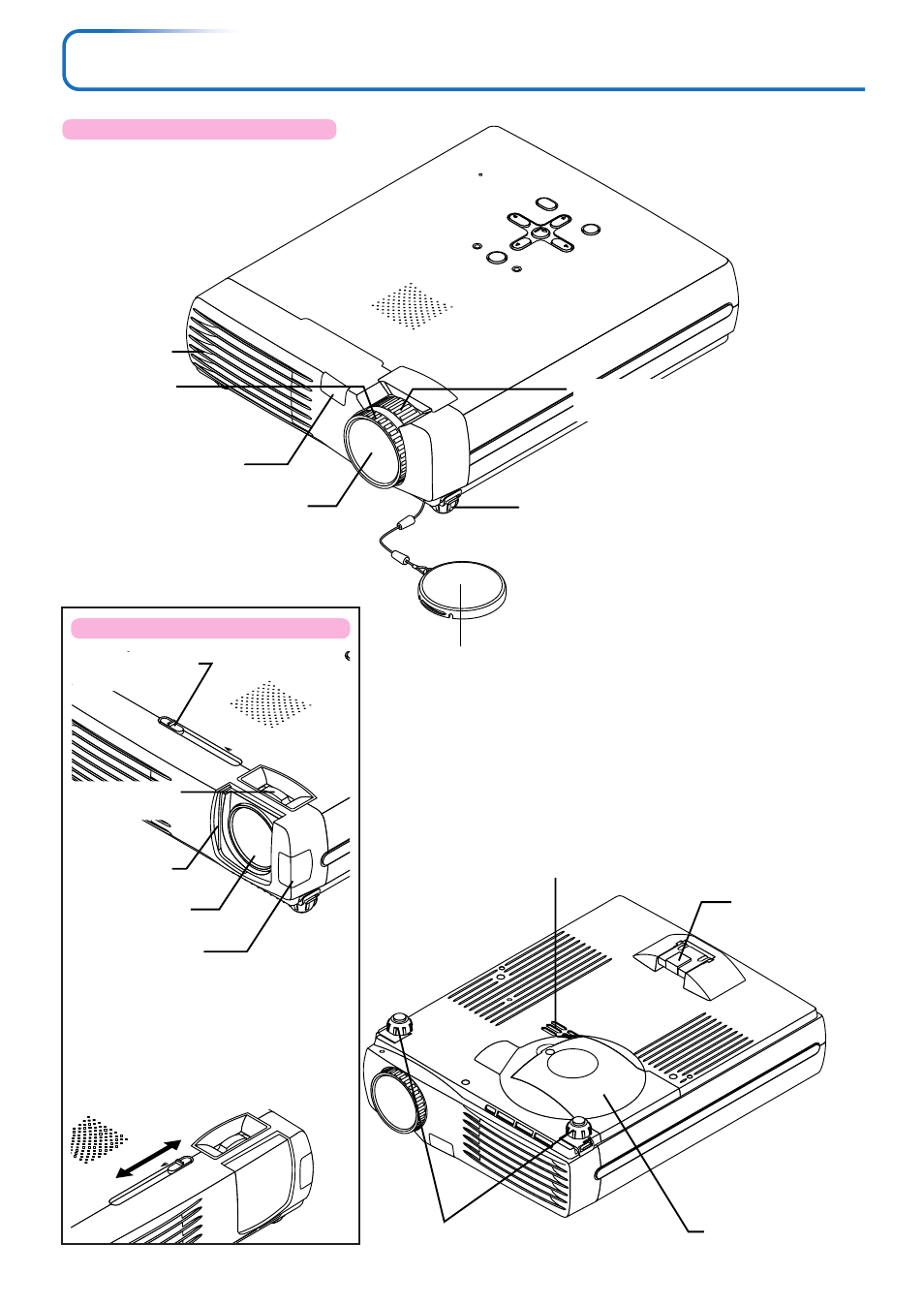

Names of the Main Unit Parts
ST ATUS
SO URCE
ST AND
BY
AUTO MENU
QUICK MENU
PC CAR
D
Front adjuster button [E-28]
(There is also one on the right side.)
Remote control
sensor [E-12]
Focus ring
[E-28]
Lens
Exhaust vents
Front adjusters [E-28]
Rear adjuster [E-28]
Lamp cover [E-74]
Opening the lens shutter
Slide the lens shutter lever to the left. The lens
shutter opens.
When the projector is not in use, slide the le-
ver to the right to close the lens shutter and
protect the lens.
Ventilation slots Lens shutter
Lens shutter lever
Focus ring
[E-28]
Lens cap
Remove before use. Attach
the lens cap after use to
protect the lens.
Remote control
sensor [E-12]
Lens
Zoom ring [E-27]
Applicable Projector: U4-136/U4-112
Applicable Projector: U4-131/U4-111
