12
CONNECTING THE PROJECTOR
USA
computer IN 1 computer IN 2 monitor OUT
PC control 1
video IN
video R-audio-L (mono)
S-video IN
audio IN 1 audio IN 2
PC control 2 Ext. speaker
(8 Ω)
Y Cb/Pb Cr/Pr
COMPUTER
OUTPUT
COMPUTER
MONITOR CABLE
(NOT PROVIDED)
SERIAL PORT
INPUT
MONITOR
OUTPUT
COMPUTER
AUDIO INPUT
1 or 2
MOUSE CABLE FOR
PS/2 PORT
(PROVIDED)
MOUSE CABLE FOR
SERIAL PORT
(PROVIDED)
PS/2 PORT
INPUT
VGA CABLE
(PROVIDED)
AUDIO CABLE
(PROVIDED)
EXTERNAL AUDIO
EQUIPMENT
(Refer to page 18)
NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be
disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.
COMPUTER
INPUT 1 or 2

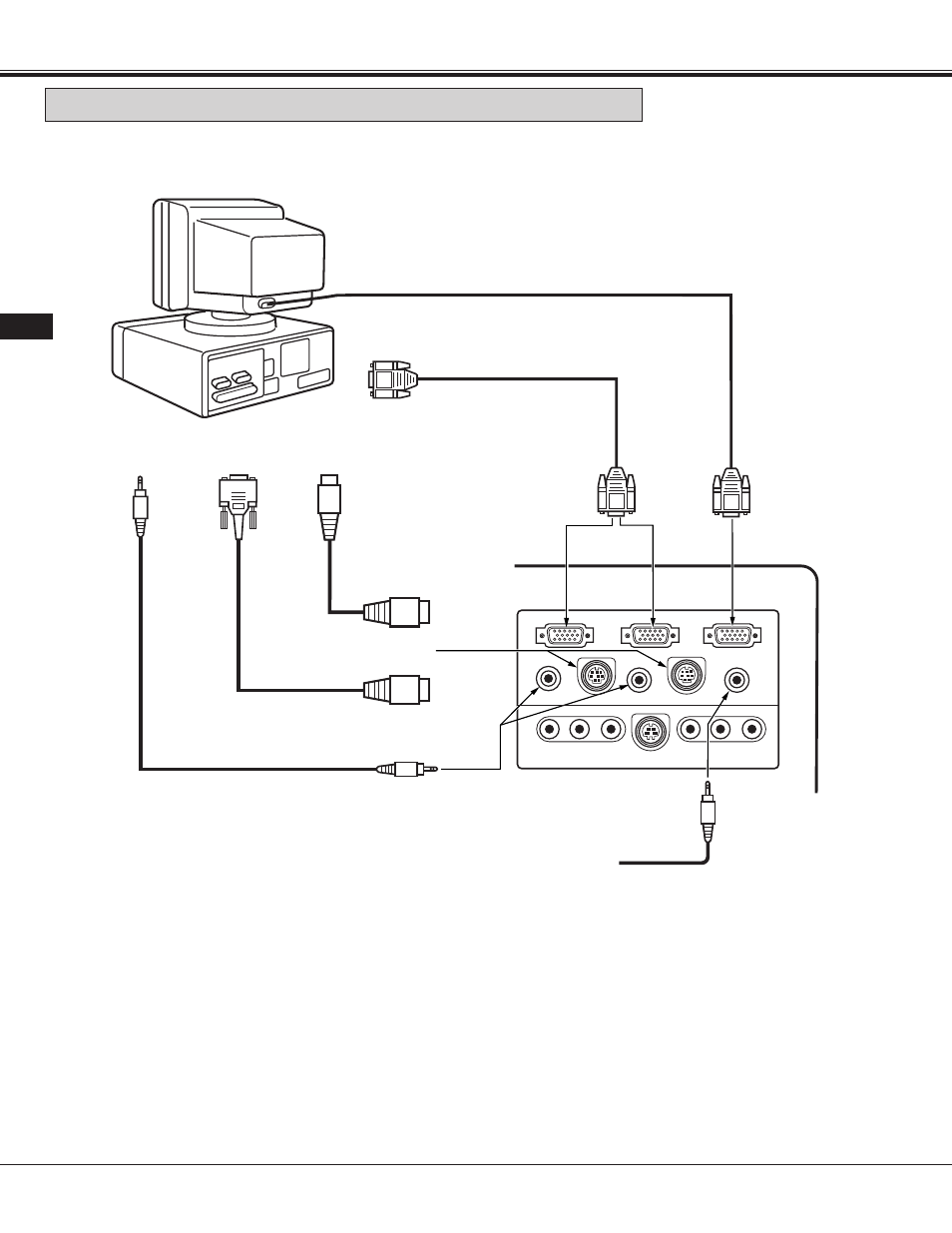

CONNECTING AN IBM-COMPATIBLE DESKTOP COMPUTER
AUDIO
OUTPUT
CONTROL PORT
OUTPUT 1 or 2
