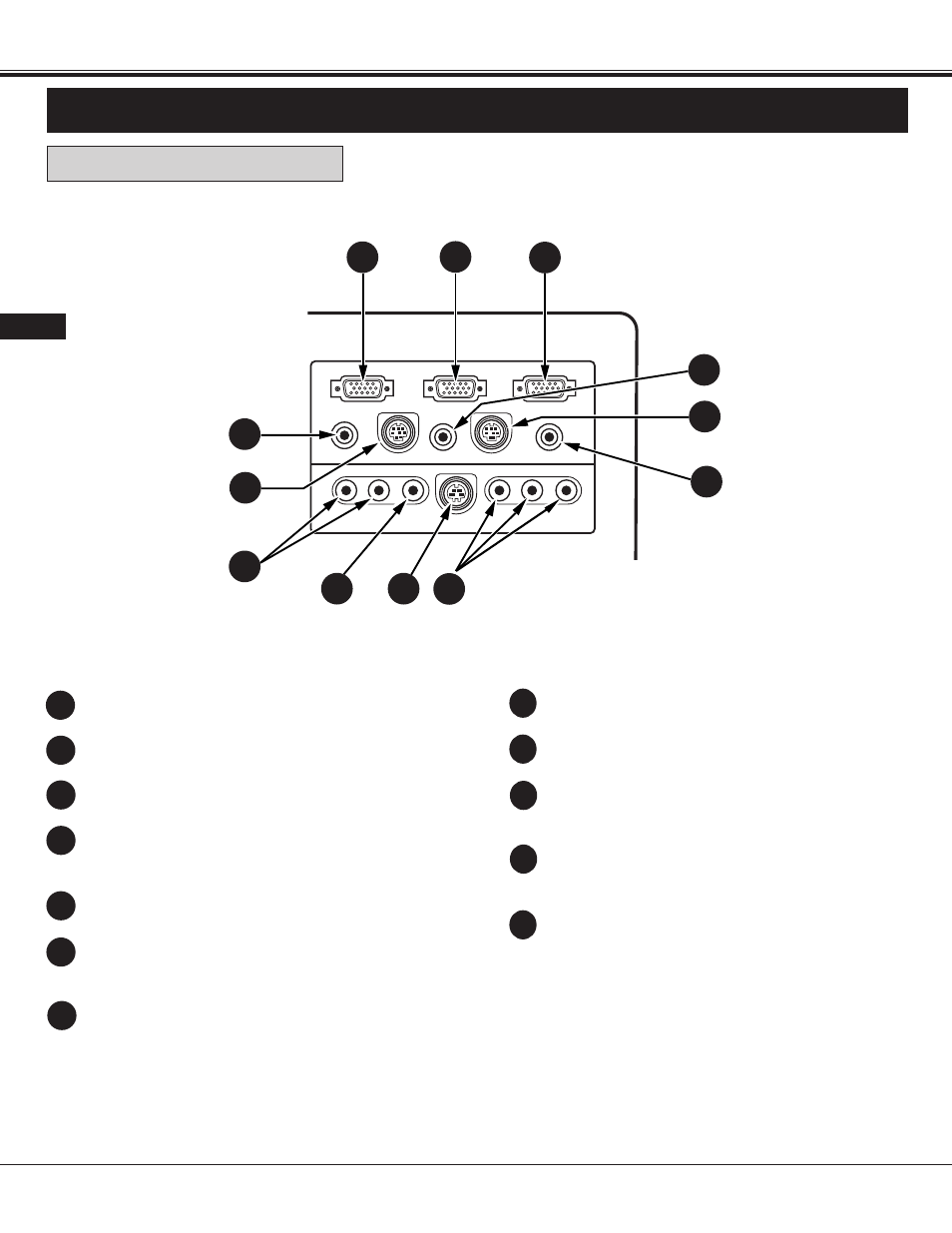

REAR OF THE PROJECTOR
AUDIO INPUT JACKS
Used to connect an audio input to the projector.
VIDEO INPUT JACK
Used to connect a video source to the projector.
S-VIDEO INPUT JACK
Used to connect a S-VHS video source to the
projector.
COMPONENT VIDEO INPUT JACKS
Used to connect a component video source to the
projector.
EXT. SP. JACK (3.5 mm mini stereo type)
Used to connect an external speaker system.
computer IN 1 computer IN 2 monitor OUT
PC control 1
audio IN 1 audio IN 2
PC control 2 Ext. speaker
(8 Ω)
video IN
video R-audio-L (mono)
Y Cb/Pb Cr/Pr
S-video IN
1 2 3
6
7
10 9
4
5
8
11
12
1
2
3
4
5
6
8
9
10
11
12
7
CONNECTING THE PROJECTOR
TERMINAL OF THE PROJECTOR
USA
COMPUTER INPUT-1 TERMINAL
Used to connect a computer to the projector.
COMPUTER INPUT-2 TERMINAL
Used to connect a computer to the projector.
MONITOR OUTPUT TERMINAL
Used to connect a monitor to the projector.
COMPUTER AUDIO INPUT-1 JACK
mini stereo type
Used to connect a computer audio input to the projector.
CONTROL PORT-1 CONNECTOR
Used to connect a mouse cable to the projector.
COMPUTER AUDIO INPUT-2 JACK
mini stereo type
Used to connect a computer audio input to the projector.
CONTROL PORT-2 CONNECTOR
Used to connect a mouse cable to the projector.
NOTE: Control port-2 connector can be also used as
serial port (RS-232C).
