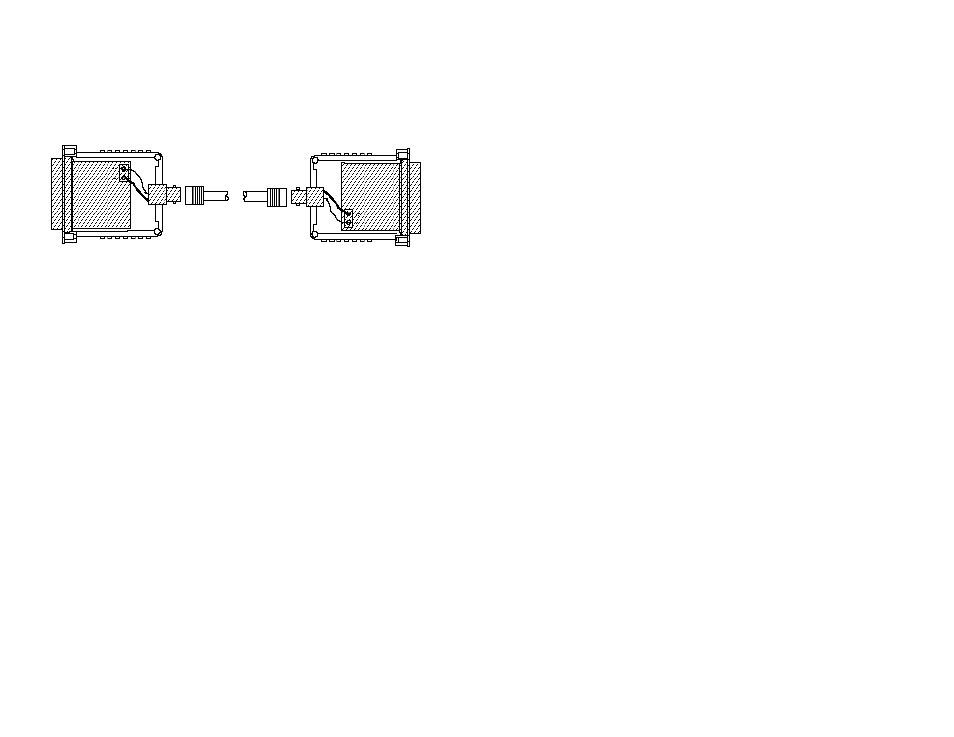

3.2.3 Connection Using Coax (BNC)
If you have the coax version of the Model 1002, simply connect the
BNC mating connectors to both modems.
APPENDIX A
PATTON MODEL 1002 SPECIFICATIONS
Transmission Format: Asynchronous
Transmit Line:
2 wire unconditioned twisted pair
or coaxial cable
Transmit Mode:
Full or half duplex
Transmit Level:
0 dBm
Control Signals
:
DSR and DCD turn “ON” immediately after
the terminal raises DTR; CTS turns “ON”
immediately after the terminal raises RTS
Surge Protection:
Compliant with IEC 801.5 level 2, 1kV
(Model 1002S Only)
Data Rate:
0 to 19.2 Kbps
Range:
2.0 miles @ 0 to 9600 bps
5.0 miles @ 19,200 bps
Power:
No external power required, derives
required power from RS-232 input signals
Size:
2.20” x 1.75” x 0.75” (5.6 x 4.4 x 1.9 cm)
Temperature:
32° to 140°F
Humidity:
95% non-condensing
