20
OPERATING CONTROLS AND ADJUSTMENTS
STARTING AND STOPING
RADIAL ARM SAW
The on/off switch (A) Fig. 56, is located at the front of the
cutting-head. To turn the saw “ON” move the switch (A)
Fig. 56, up to the “ON” position. To turn the saw “OFF”
move the switch (A) Fig. 56, down to the “OFF” position.
LOCKING SWITCH IN
THE “OFF” POSITION
IMPORTANT: When the machine is not in use, the switch
should be locked in the OFF position using a padlock (D)
Fig. 57, with a 3/16" diameter shackle to prevent
unauthorized use. This can be done by inserting a
padlock (D) Fig. 57, through the holes in switch plate (B)
and handle (C) as shown. Padlock (D) Fig. 57, is
available as an accessory.

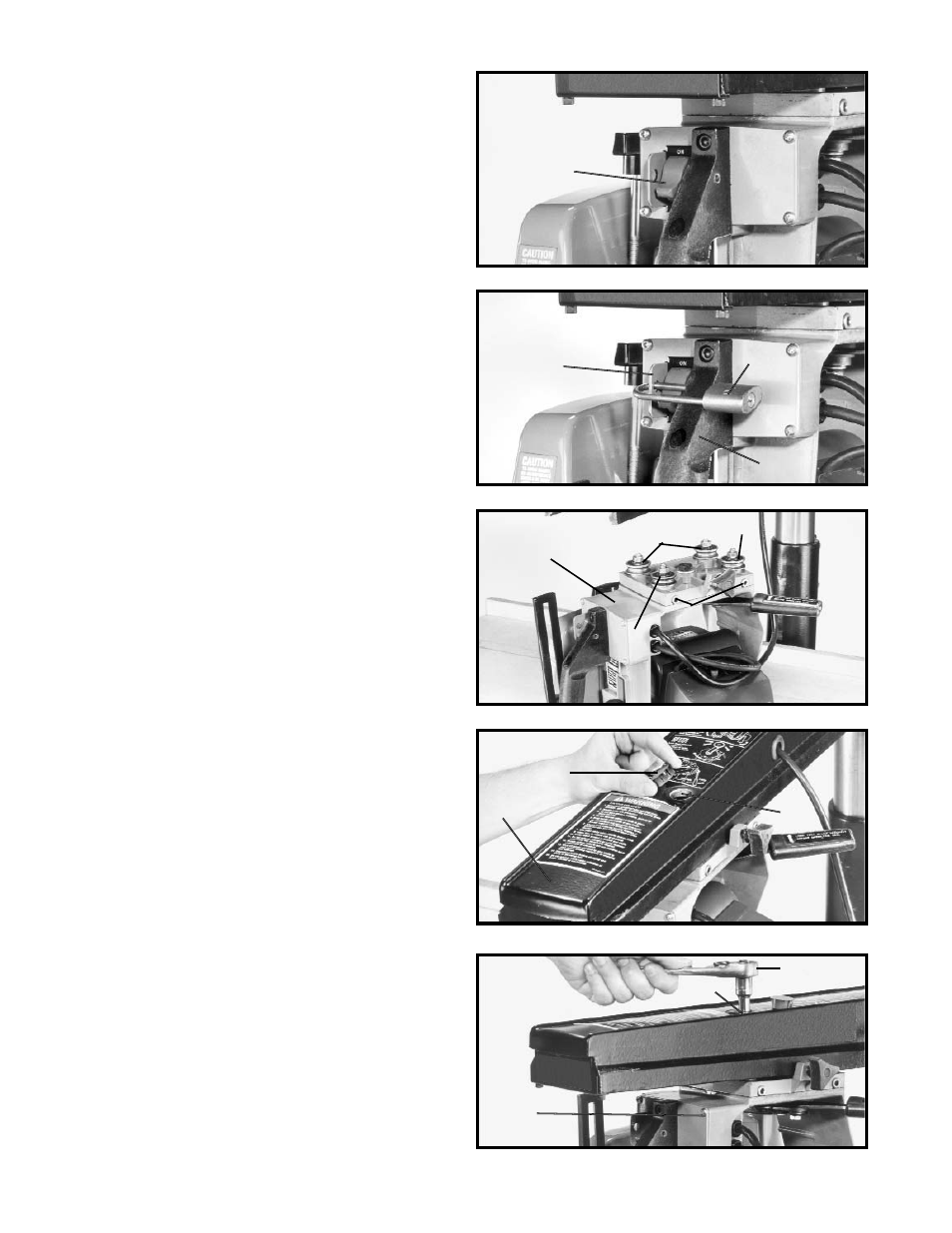

Fig. 56
Fig. 57
Fig. 61
Fig. 62
Fig. 63
ADJUSTING BALL
BEARINGS AGAINST TRACK
The cutting-head (C) Fig. 61, is suspended from four
pre-loaded, lubricated, shielded ball bearings, two of
which are on fixed shafts at (A) , and two on adjustable
shafts at (B). NOTE: CUTTING-HEAD (C) FIG. 61, IS
REMOVED FROM TRACK ARM FOR ILLUSTRATION
PURPOSES ONLY. DO NOT REMOVE CUTTING-HEAD
FROM TRACK ARM!
After extended use, wear may develop in the track arm,
causing “play” between the ball bearings and the track.
The ball bearings must ride smoothly and evenly in the
channels of the track arm. Adjustment to the two
bearings on adjustable shafts can be made as follows:
1. DISCONNECT MACHINE FROM POWER SOURCE.
2. Remove plastic plug (D) Fig. 62, from the top of
track arm (E).
3. Slide cutting-head (C) Fig. 63, until one of the ad-
justable bearings (B) Fig. 60, is visible through hole (G)
Figs. 62 and 63.
4. Using a 1/2" socket, extension, and ratchet (H) Fig.
63, through hole (G) in track arm, slightly loosen hex nut
on adjustable shaft (B) Fig. 61, approximately 1/8 turn.
Repeat procedure for other bearing.
A
B
D
C
C
A
B
B
K
G
D
E
H
G
C
