D and c boards connection – Panasonic Generation Plasma Display Television User Manual
Page 70

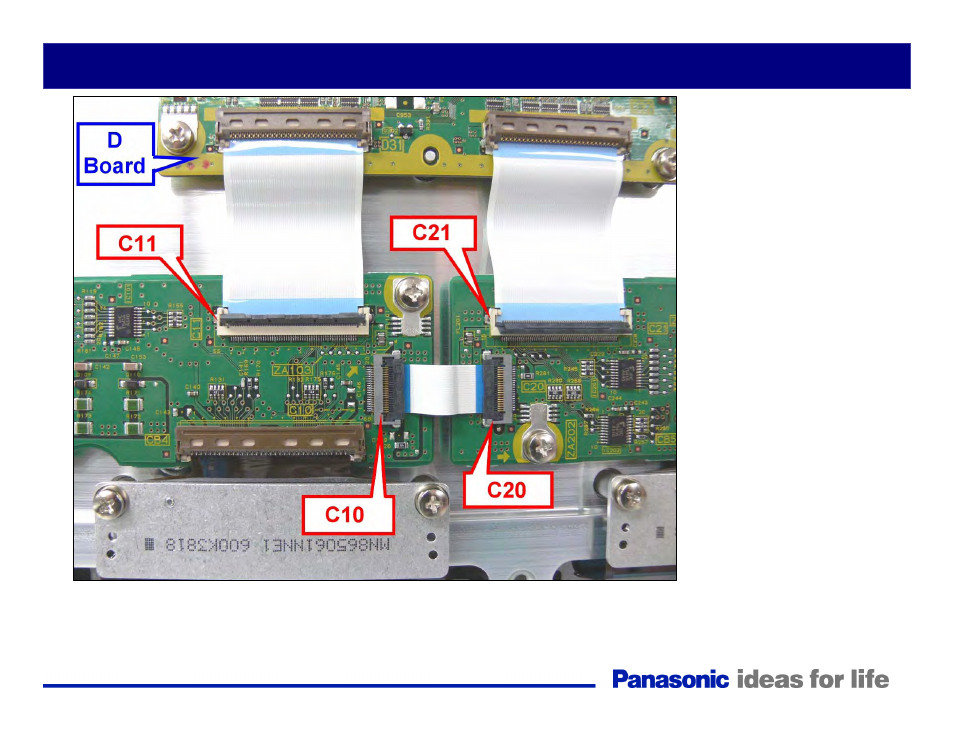

D and C Boards Connection
70
Caution:
1.
The ribbon cable C10/C20 must be transferred during a panel exchange.
2.
The improper installation of the connectors C11 and C21 may cause vertical lines to appear in the
picture.
The improper connection
of the connectors C11,
C21, C10 and C20
causes a DVR_RST
SOS. The power LED
blinks 6 times, leading
one to believe that there
is a problem in the audio
output circuit.
