CONNECTING AN EXTERNAL DC SOURCE FOR
AUTOMATIC TURN ON-OFF
To automatically turn on and off the A 52 with an external DC voltage, choose the DC Triggering
option by moving the Auto Turn On switch on the rear panel to its lower 12
V position.
What You’ll Need:
• A cable with a 2.5 mm sub-mini plug on each end (provided)
• A “control” component with +9 V dc to +12 V dc trigger voltage
Before Connecting
❑ Remove Power to all the components in your audio system.
❑ Make sure the Auto Turn On switch on the A 52 rear panel is in its 12
V (down) position.

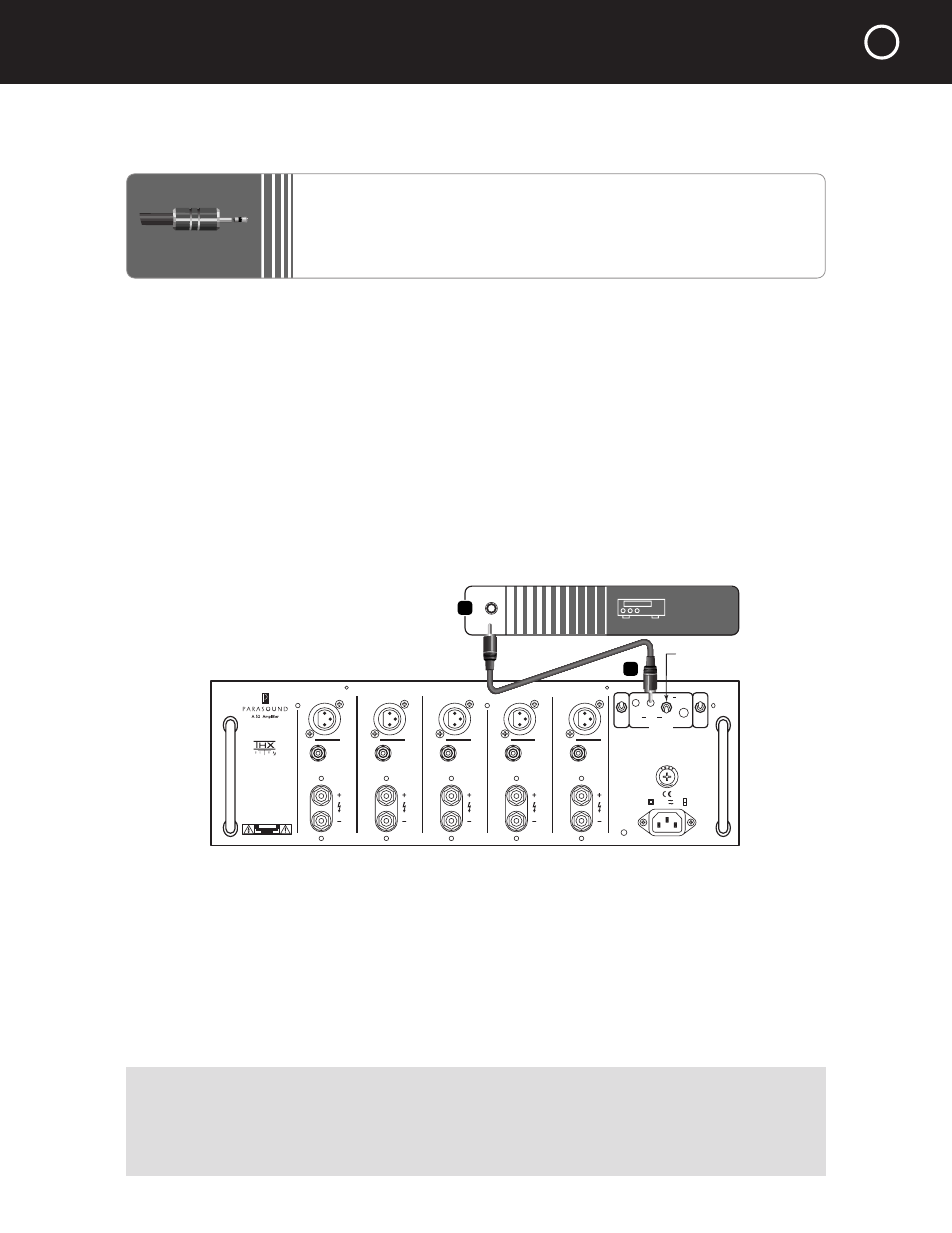

To Connect
1 Plug one end of the trigger wire into the 12 V Input jack on the A 52.
2 Plug the other end of this wire into the external DC source.
7
YOU SHOULD KNOW
If the device you want to use to control your A 52 doesn’t have a 2.5 mm trigger output
connector, you can cut one plug off the cable and terminate the end as required. The lead
with the red stripe is positive and the lead without the stripe is negative.
Output
CONTROL
COMPONENT
2
1
Ch 1 Ch 2 Ch 3 Ch 4 Ch 5
Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced
Man
Balanced
Inputs
Unbalanced Input 12 V Output
Audio Sensitivity
50 mV 250
Ground
Normal
Lift
WARNING
To Prevent Fire Or Shock Hazard,
Do Not Expose This Unit To Rain
Or Moisture.
Fuse T15A/250V1-115V Area
T8A/250V-230V Area
AC 115V 60Hz
AC 230V 50Hz
Power Consumption: 1350W
Parasound Products, Inc.
San Francisco, CA USA
Manufactured under
license from Lucasfilm
Ltd. Lucasfilm and THX
are registered Trademarks
of Lucasfilm Ltd.
CAUTION
To Prevent Electric Shock, Do Not
Remove Cover. No User-Serviceable
Parts Inside, Refer Servicing To
Qualified Service Personnel.
Auto Turn On
L U C A S F I L M L M
Audio Turn On Switch,
set to down position
2.5 mm sub-mini plug
