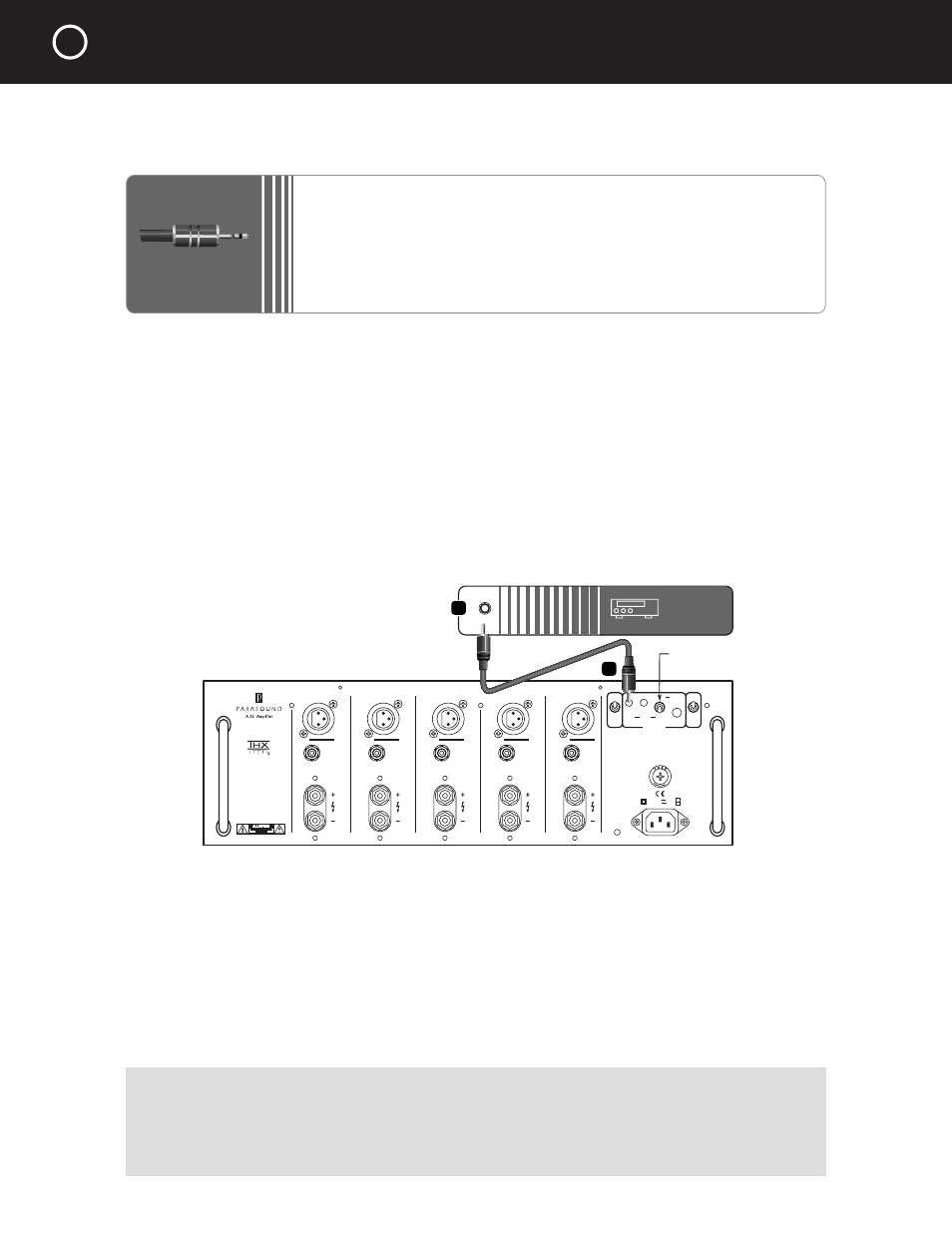

CONNECTING THE A 52 TO TRIGGER ANOTHER COMPONENT
Whenever the A 52 is turned on either manually or automatically, there is 12 Vdc present at its
own DC Trigger Out jack so it can trigger additional amplifiers or other components on and off.
What You’ll Need:
• A wire with a 2.5 mm sub-mini plug on each end (in addition
to the wire provided with the A 52)
• A component that can be triggered with an external +9 Vdc to +12 Vdc
source. The A 52 DC trigger output provides up to 150 mA of current
Before Connecting
❑ Remove power to all the components in your audio system.
To Connect
1 Plug one end of the trigger wire into the 12
V Output jack on the A 52.
2 Plug the other end of this wire into the component that you want the A 52 to trigger.
8
YOU SHOULD KNOW
If the device you want your A 52 to control doesn’t have a 2.5 mm trigger output
connector, you can cut one plug off the cable and terminate the end as required.
The lead with the stripe is positive and the lead without the stripe is negative.
CONTROLLED
COMPONENT
Input
2
1
Ch 1 Ch 2 Ch 3 Ch 4 Ch 5
Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced Input Balanced
Unbalanced
Man
Balanced
Inputs
Unbalanced Input 12 V Output
Audio Sensitivity
50 mV 250
Ground
Normal
Lift
WARNING
To Prevent Fire Or Shock Hazard,
Do Not Expose This Unit To Rain
Or Moisture.
Fuse T15A/250V1-115V Area
T8A/250V-230V Area
AC 115V 60Hz
AC 230V 50Hz
Power Consumption: 1350W
Parasound Products, Inc.
San Francisco, CA USA
Manufactured under
license from Lucasfilm
Ltd. Lucasfilm and THX
are registered Trademarks
of Lucasfilm Ltd.
CAUTION
To Prevent Electric Shock, Do Not
Remove Cover. No User-Serviceable
Parts Inside, Refer Servicing To
Qualified Service Personnel.
Auto Turn On
L U C A S F I L M L M
Auto Turn On Switch,
set to down position
2.5 mm sub-mini plug
