ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included tools, assembly requires a Phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .

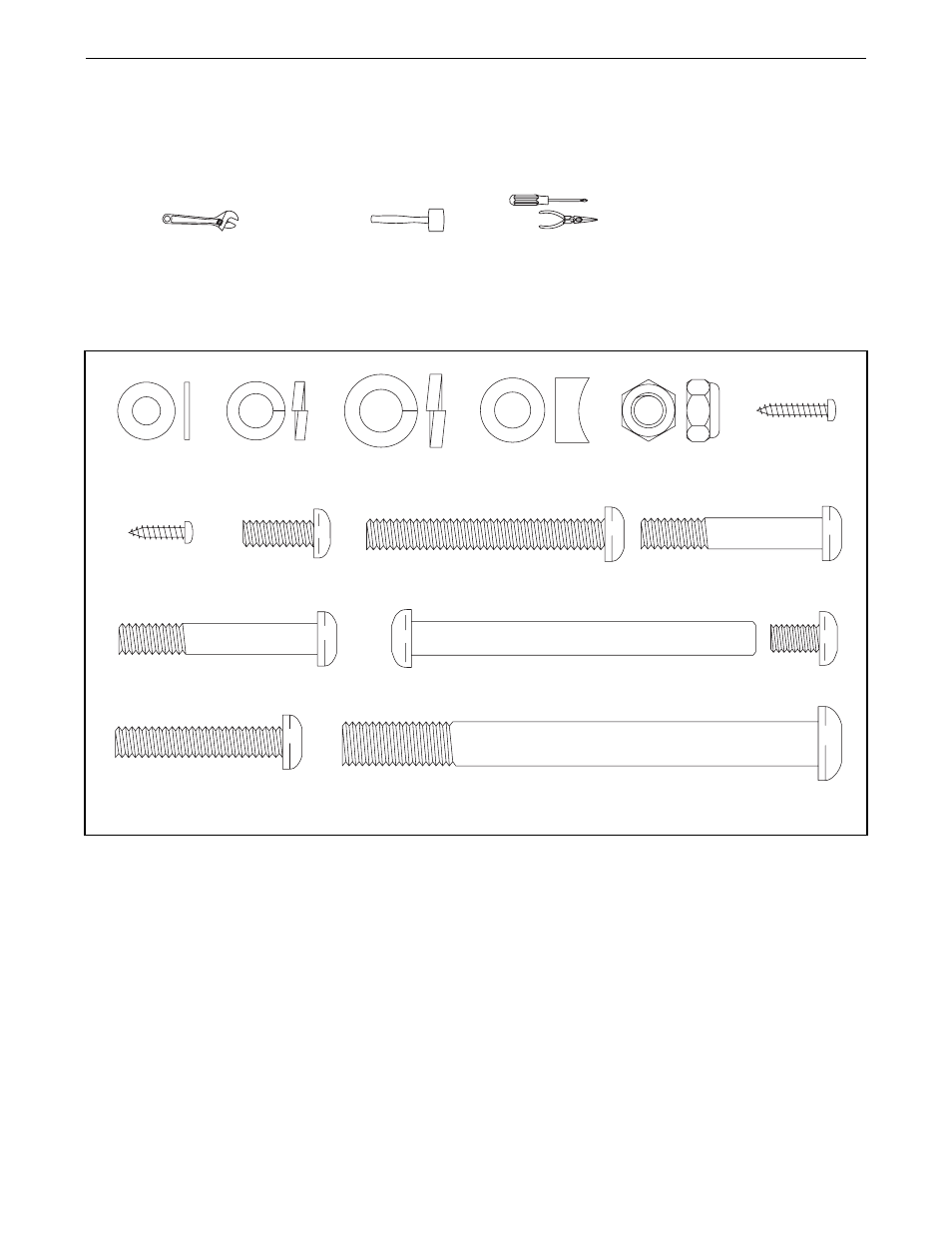

Use the drawings below to identify the small parts required for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the key number is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 x 54mm Button Screw (83)–4
M8 x 44mm Button Screw (84)–8
M6 x 16mm Patch
Screw (76)–4
M8 x 42mm Button
Bolt (85)–4
M10 Split
Washer (73)–2
M4 x 12mm
Round Head
Screw (96)–1
M6 Washer
(64)–2
7.6mm Spacer
(109)–2
M8 Jam Nut
(86)–6
M4 x 16mm
Screw (98)–4
M10 x 108mm Button Screw (70)–2 M8 x 38mm Button Bolt
(105)–2
M8 x 79mm Bolt Set (65)–2
M8 Split
Washer (130)–4
