11. Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
10. Plug the Power Cord (116) into the Power Socket
(117) at the rear of the elliptical exerciser.
116 117
10

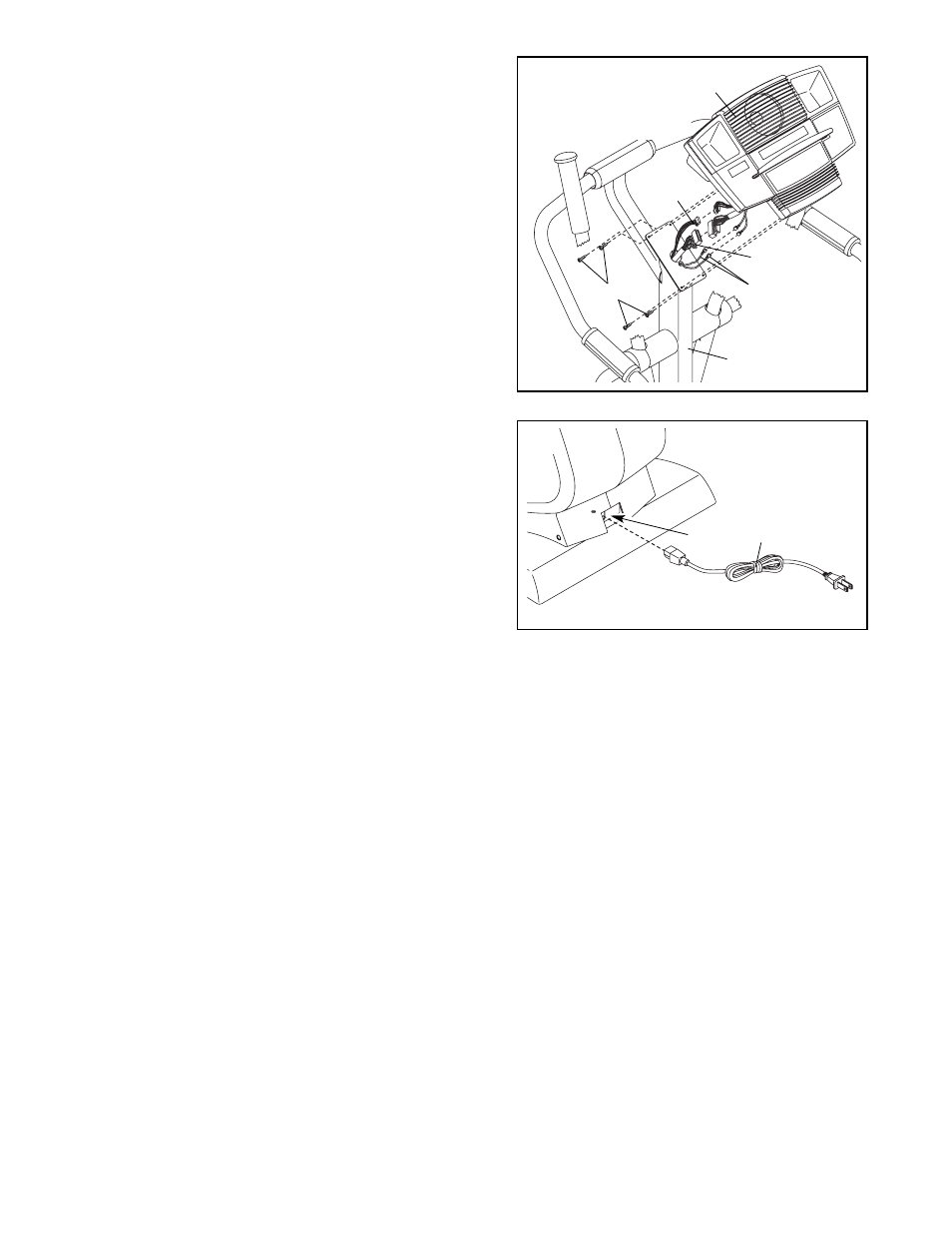

9. Have another person hold the Console (17) near the
Upright (2).
Connect the Upper Wire Harness (115) to the wire
harness on the Console (17). Connect the Pulse
Extension Wire (114) to the pulse wire on the
Console. Next, locate the two ground wires that are
attached with a screw to the Upright (2). Connect the
ground wires to the two smallest wires on the
Console.
Carefully insert all excess wiring up into the Console
(17) and down into the Upright (2). Attach the Console
to the Upright with four M4 x 16mm Screws (98).
(Note: The Screws may be shipped in the console
box.) Be careful to avoid pinching the wires.
17
Ground
Wires
2
98
115
114
9
Do not pinch
the wires
during this step
