HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 21.

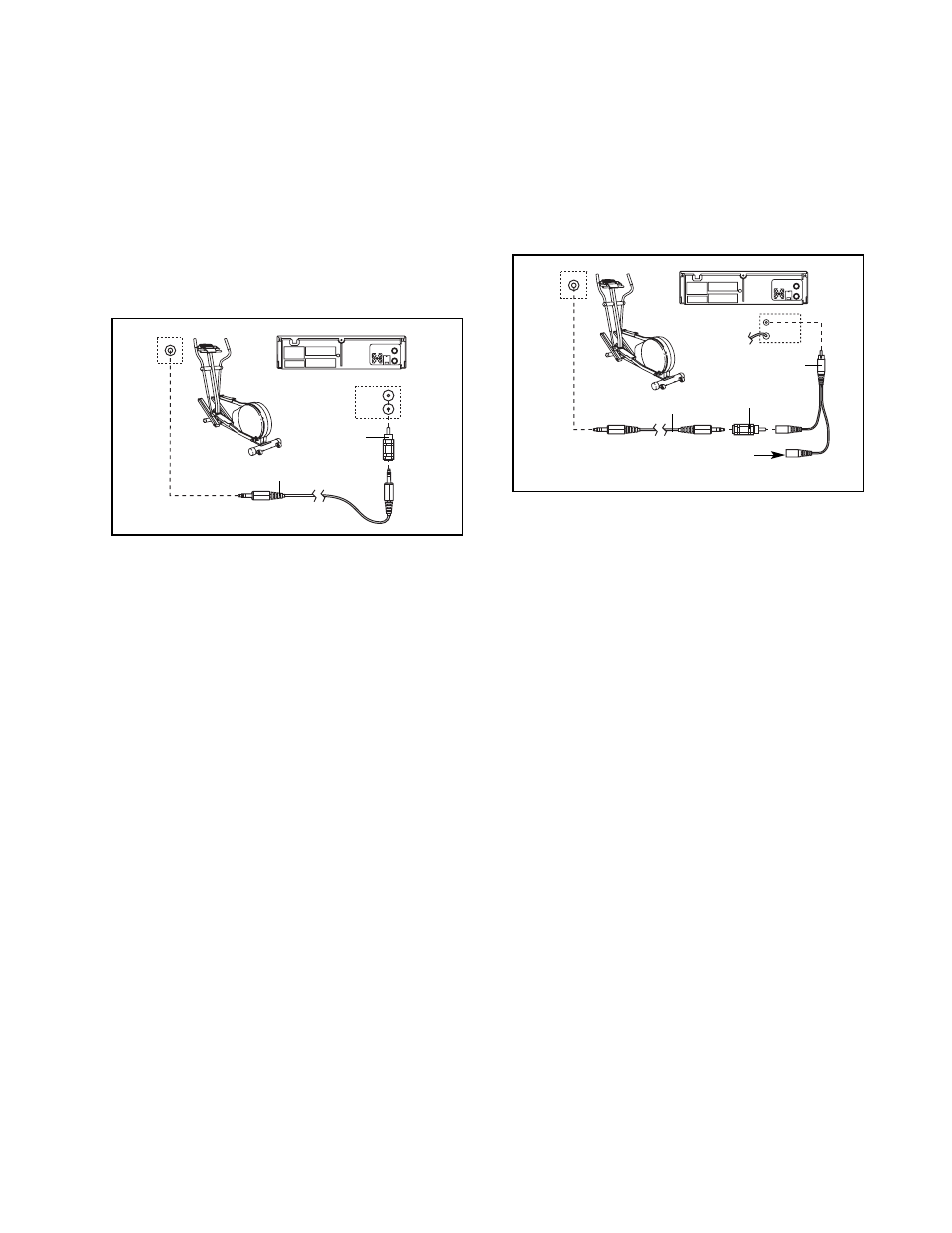

A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged
into the AUDIO OUT jack on your VCR and plug
the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the AUDIO OUT jack on
your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT IN
OUT
CH 3 4
Audio Cable
Adapter
A
VIDEO AUDIO
ANT. IN
RF OUT IN
OUT
CH 3 4
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
