The RJ-45 connector on the Model IM 1/F twisted pair interface is
pre-wired according to the signal/pin relationships shown in Figure 5
below.
Important: Connection of the Patton G.703 IM to a CSU
DTE requires a crossover twisted pair cable. Connection of the G.703
IM to a PCM network requires a straight through twisted pair cable.
If you need more assistance with cable selection and preparation, contact
Patton Technical Support at (301) 975-1007. Additional assistance at
our website, http://www.patton.com, or at our e-mail address at sup-
[email protected].
APPENDIX A
SPECIFICATIONS
Applications:
64K G.703 codirectional PCM network
extension or network replacement
Connector:
Symmetrically balanced pair, 4 wire RJ-45
female
Interface:
Entire module plugs into Patton Electronics
1090 or 1092 Modem
Operating
Modes/Speed:
Supports octet mode or clear channel mode
Co-directional timing, Rx recovered:
64Kbits + 500ppm
Octet Timing auto detect on receiver
Line Coding:
AMI with block violation for octet timing
Timing Modes:
Supports network timing mode or modem
timing mode
Transmit Level:
2.0V differential, into 100 Ohms, nominal
Load Impedance:
120 Ohms
Input Signal Level:
0 to -10dB
Jitter Performance:
CTR 14, G.823. <0.05UI jitter for network
extension applications
Isolation:
2000 VRMS isolation, transformer coupled
PC Board
2.950” X 3.200”, QuickConnect
TM
Interface
Dimensions:
Module size
Compliance:
FCC Class A
EN 50081-1, Emissions
EN 50082-1, Susceptibility
Designed for compliance with CTR 14
9
10
1 (RX Tip)
2 (RX Ring)
3 (N/C)
4 (TX Ring)
5 (TX Tip)
6 (N/C)
7 (N/C)
8 (N/C)
1
2
3
4
5
6
7
8
Pin
Signal Name
Direction
Function
(In reference to IM)
1
RD(T)
IN
Receive data in (tip)
2
RD(R)
IN
Receive data in (ring)
3
Not used
4
TD(R)
OUT
Transmit data out (ring)
5
TD(T)
OUT
Transmit data out (tip)
6
Not used
7,8
Not used

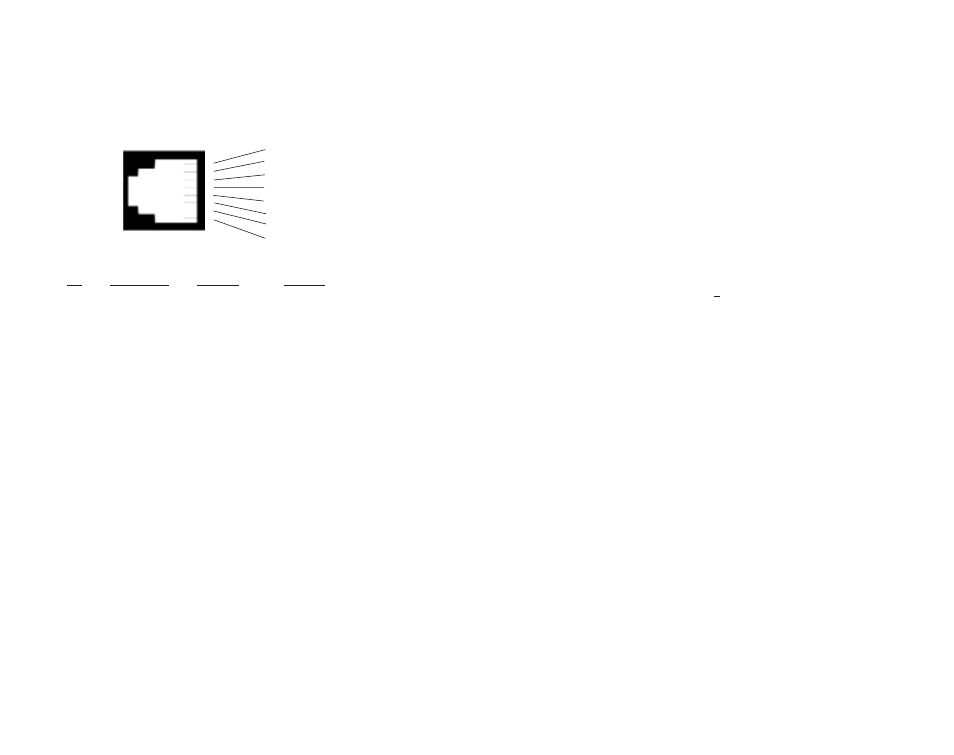

Figure 5. Model IM 1/F Twisted Pair Interface Signal/Pin Relationship
