12
PART NAMES AND FUNCTIONS
PHONES
FOOT SW
PROFESSIONAL 2CHANNEL MIXER
DJM-909
CH-1
CH-2
OFF
CH-1 C.F. CH-2
FADER REVERSE
OFF
ON
OFF
ON
OFF
ON
FADER CURVE
CROSS FADER 2 CROSS FADER 1 CH-2 CH-1
MAX MIN
FADER CUT LAG
FADER START
C.F. 1 CH-1 C.F. 2 CH-2
POWER
52 53
54
55
56 57 58

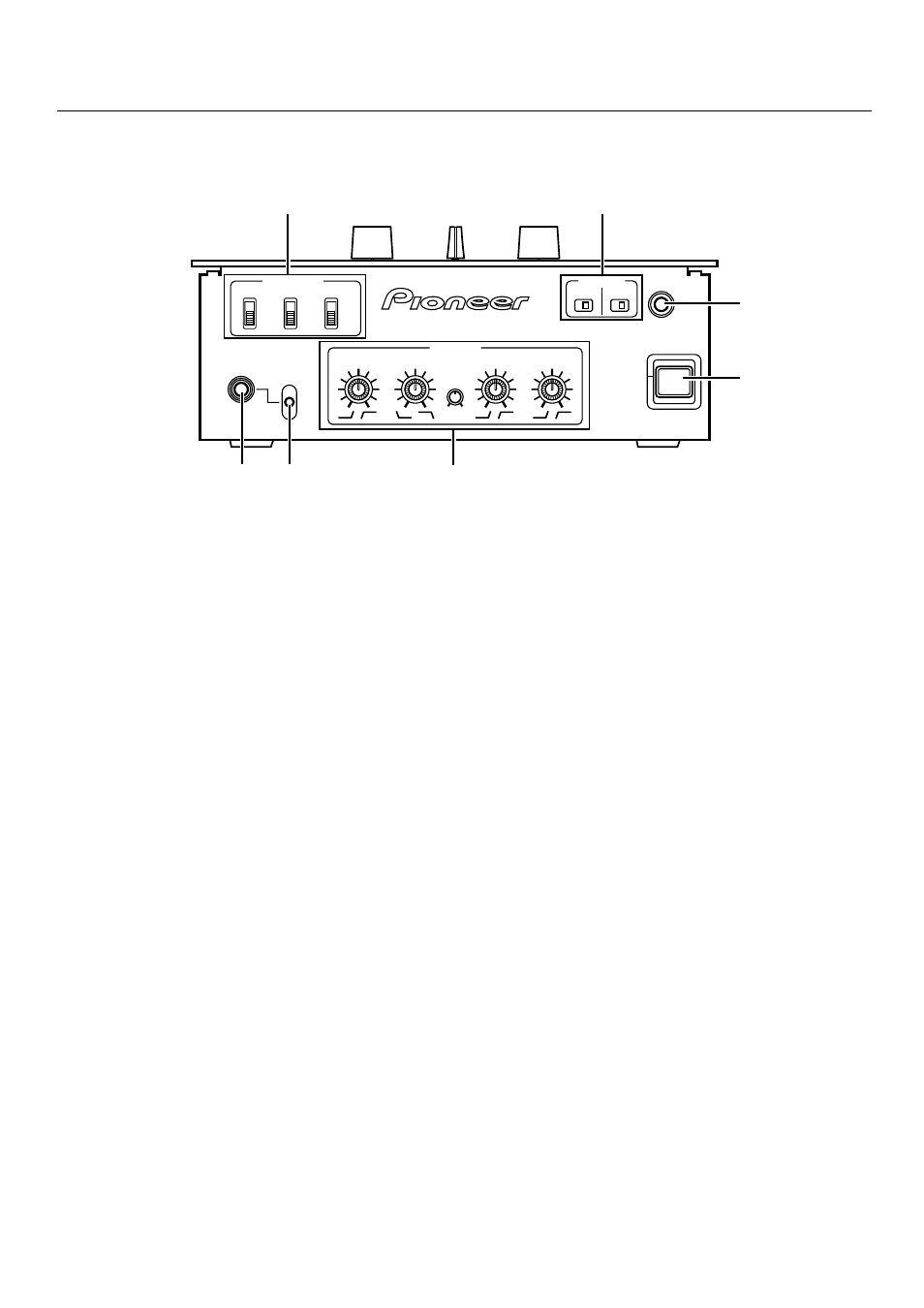

Front Panel
52 FADER REVERSE switches
CH-1 ON/OFF
When set to [ON], the top panel’s CH-1 REVERSE indicator
lights, and the CH-1 fader lever operates in the reverse
direction (scale mark “0” becomes 0 dB attenuation, and
“10” becomes minus infinity). The fader start function also
operates in reverse.
CH-2 ON/OFF
When set to [ON], the top panel’s CH-2 REVERSE indicator
lights, and the CH-2 fader lever operates in the reverse
direction (scale mark “0” becomes 0 dB attenuation, and
“10” becomes minus infinity). The fader start function also
operates in reverse.
C.F. ON/OFF
When set to [ON], the top panel’s cross fader REVERSE
indicator lights, and the cross fader lever operates in the
reverse direction (left side becomes CH-2, and right side
becomes CH-1). The fader start function also operates in
reverse.
53 FADER START selector switches
C.F.1 / CH-1
This switch determines whether the fader start operation for
the CD player connected to CH-1 is activated by the cross
fader lever, or by the CH-1 fader lever.
When the top panel’s CH-1 FADER START button is set to
On, selecting [C.F.1] causes the top panel’s C.F.1 FADER
START indicator to light, and selecting [CH-1] causes the top
panel’s CH-1 FADER START indicator to light.
C.F.2 / CH-2
This switch determines whether the fader start operation for
the CD player connected to CH-2 is activated by the cross
fader lever, or by the CH-2 fader lever.
When the top panel’s CH-2 FADER START button is set to
On, selecting [C.F.2] causes the top panel’s C.F.2 FADER
START indicator to light, and selecting [CH-2] causes the top
panel’s CH-2 FADER START indicator to light.
54 Headphone output jack (PHONES)
Accepts a 6.3 mm stereo headphones plug.
55 POWER switch
56 Fader attenuation dials (FADER CURVE)
CH-1
Use to adjust CH-1’s fader attenuation curve.
CH-2
Use to adjust CH-2’s fader attenuation curve.
CROSS FADER 1
Use to adjust cross fader’s CH-1 attenuation curve.
CROSS FADER 2
Use to adjust cross fader’s CH-2 attenuation curve.
FADER CUT LAG
Use to adjust mechanical play at both extremes of the cross
fader movement (the range in which lever movement
produces no effect).
(See page 17, “Fader attenuation curve adjustment”.)
57 Foot switch channel select switch
(FOOT SW CH-1/OFF/CH-2)
Use to select whether the Effect On/Off foot switch function
operates on channel 1 [CH-1], channel 2 [CH-2]. When the
switch is in the center position, both CH-1 and CH-2 are
[OFF].
58 Foot switch jack (FOOT SW)
This 6.3 mm RCA jack can be used to connect an On/Off type
pedal switch used to turn effects On and Off.
Various types of foot switch are available; some turn On
when pressed, some turn Off when pressed, and others
have locking mechanisms (alternate On/Off with successive
presses). Select the type in accordance with your own
preferences.
