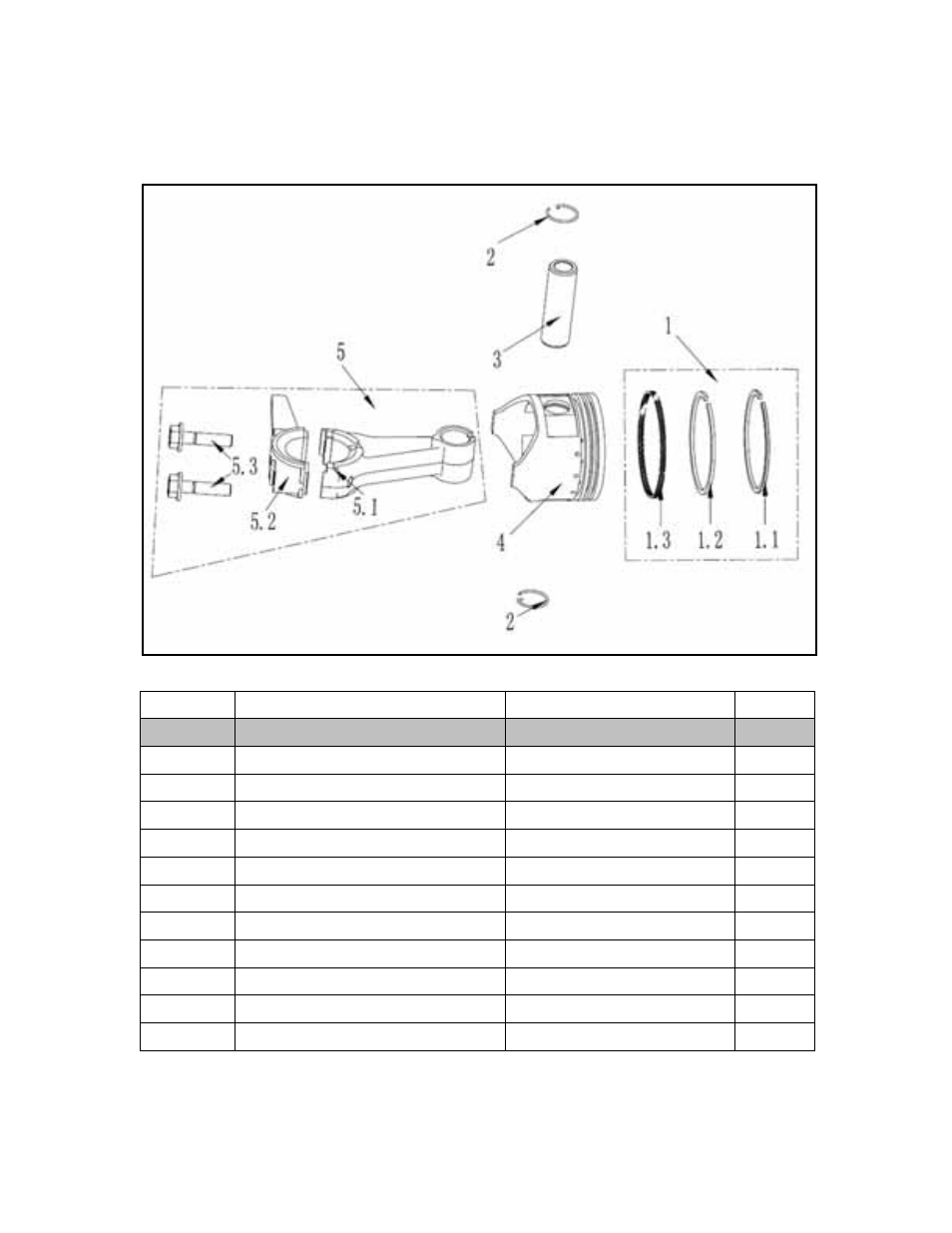

Piston / Connecting Rod Assembly

REF. NO.

DESCRIPTION

PART NO.

QTY

1

Piston Ring Assembly

A101157

1

1.1

Ring, First

For Reference Only

1

1.2

Ring, Second

For Reference Only

1

1.3

Oil Ring

For Reference Only

1

2

Circlip, Piston Pin

A101158

2

3

Pin, Piston

A101159

1

4

Piston

A101160

1

5

Connecting Rod Assembly

A101161

1

5.1

Connecting Rod Body

For Reference Only

1

5.2

Connecting Rod Cover

For Reference Only

1

5.3

Connecting Rod Bolt

For Reference Only

2
