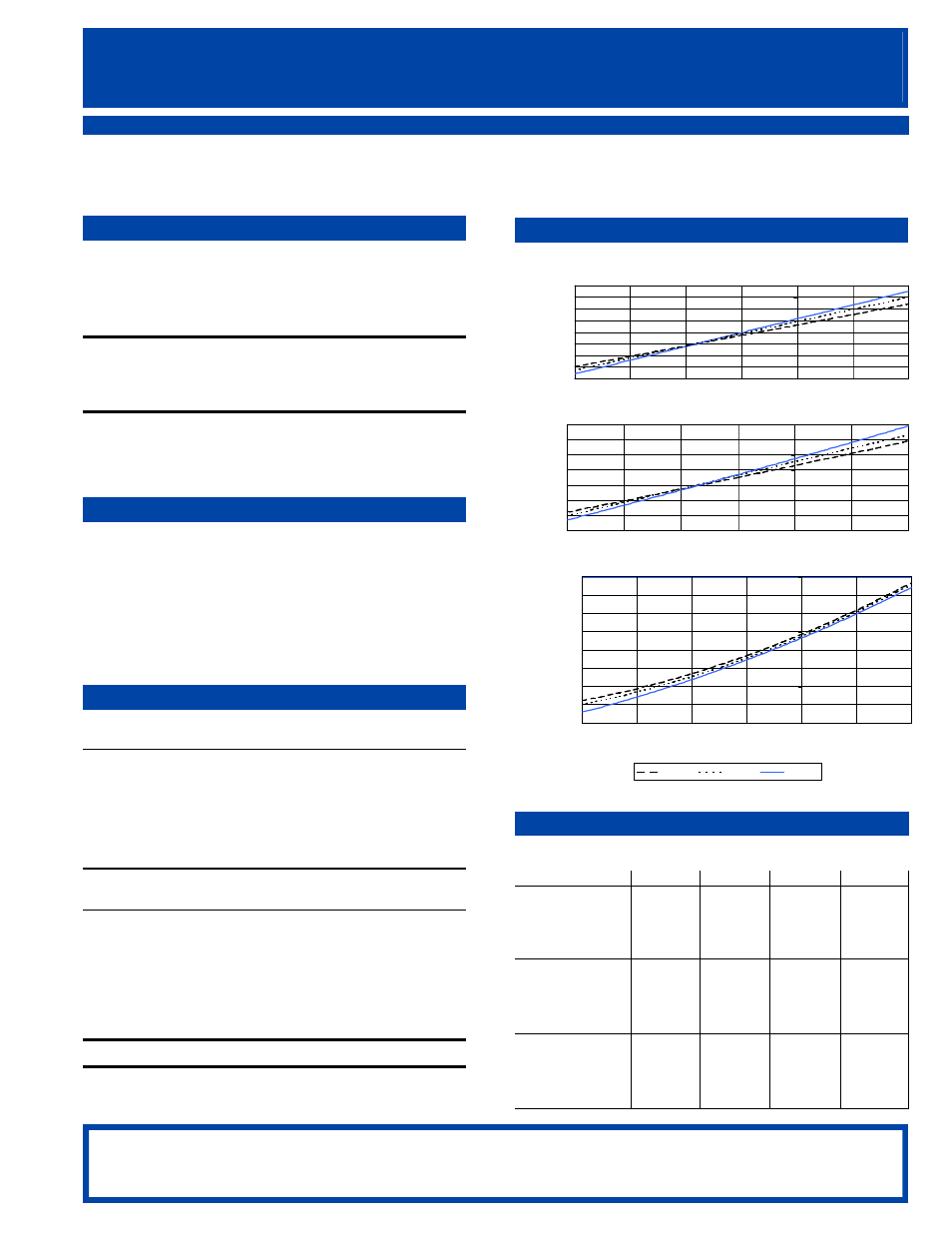

Panasonic Matsushita DA57C84RCU6 - Manual

0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
-40 -30 -20 -10 0 10 20
Current (A)
50
70
90
110
130
150
170
190
210
-40 -30 -20 -10 0 10 20
Input Power (W)
0
200
400
600
800
1,000
1,200
1,400
1,600
-40 -30 -20 -10 0 10 20
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
Rated Performance Data
Cond. Temp I* Cond. Temp II*
Capacity . . . . . . . . . . . . . . 690 Btu/h ±7%
761 Btu/h ±7%
E.E.R. . . . . . . . . . . . . . . . . . 5.35 Btu/Wh ±7% 6.19 Btu/Wh ±7%
Current . . . . . . . . . . . . . . . 1.14 Amps
1.08 Amps
Nominal Motor Data
Motor Input . . . . . . . . . . . . . . .129 Watts
123 Watts
Rated Current . . . . . . . . . . . . 1.11 Amps
Type . . . . . . . . . . . . . . . . . . . . RSCR, PTC relay
Locked Rotor . . . . . . . . . . 9.6 Amps
Start Current . . . . . . . . . . 15.5 Amps
Coil Resistances
Run . . . . 4.64 Ohms
@ 68°F (20°C)
Start . . . 5.10 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . ISO VG 10
Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C
Condensing Temp . . . . . . . . . (I) 130.0°F / 54.4°C
. . . . . . . . . (II) 105.0°F / 40.6°C
Evaporating Temp . . . . . . . . . -10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories †
Overload Protector
Nominal Operating Characteristics
Model Name 4TM319MFBYY
Manufacturer Texas Instruments
Temperature To . . . . . . . . . . . Open: 239°F ± 9°F / 115°C ± 5°C
Close: 142°F ± 16°F / 61°C ± 9°C
Trip Current . . . . . . . . . . . . . . @158°F (70°C) 2.7 Amps ± 7.5%
@77°F (25°C) 12.9 Amps @ 18 sec. max.
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name PTH7M100MD2 PTH490D-AS100
Manufacturer Murata Mfg. Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 10 10 Ohms
Power Consumption (max) 2.8 2.8 Watts
Operation time 0.45 to 1.35 0.45 to 1.35 seconds
Recovery time (max) 50 55 seconds
Run Capacitor
12 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -30°F -10°F +10°F
130°F Btu/h 284 690 1,193
Watts 81 129 177
Amps 0.73 1.14 1.57
E.E.R. 3.49 5.35 6.76
120°F Btu/h 338 710 1,214
Watts 85 127 169
Amps 0.77 1.13 1.49
E.E.R. 3.96 5.59 7.19
110°F Btu/h 375 737 1,234
Watts 88 124 160
Amps 0.79 1.10 1.42
E.E.R. 4.25 5.94 7.71
MATSUSHITA Compressor
Single Phase 115 V
MODEL# DA57C84RCU6
R-134a 60 Hz
Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static / Fan Cooling Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
9 – Point Data
Panasonic
®
