Placement Guide
Installation Height of Projection Screen [Reference]
Once the installation location and position have been decided, the projection height should be checked. In the case of large
screen sizes, there are instances where the image cannot be projected within the floor to ceiling height.
The required installation height can be found using the following formula:
[Height from center of lens to top edge of the projection(h1)] m (feet) + 0.03m (0.1 feet) + Stand height
Example:
Using a 150" 4:3 screen and placing the projector horizontally, the required installation height will be
3.13m (10.3 feet) + 0.03m (0.1 feet) = 3.16m (10.4 feet) (without a stand)
An installation room with a height of 2.4m (7.9 feet) will have insufficient room height even when the projector is placed on the
floor. (The rear adjusters can be extended to lower the projected image.)

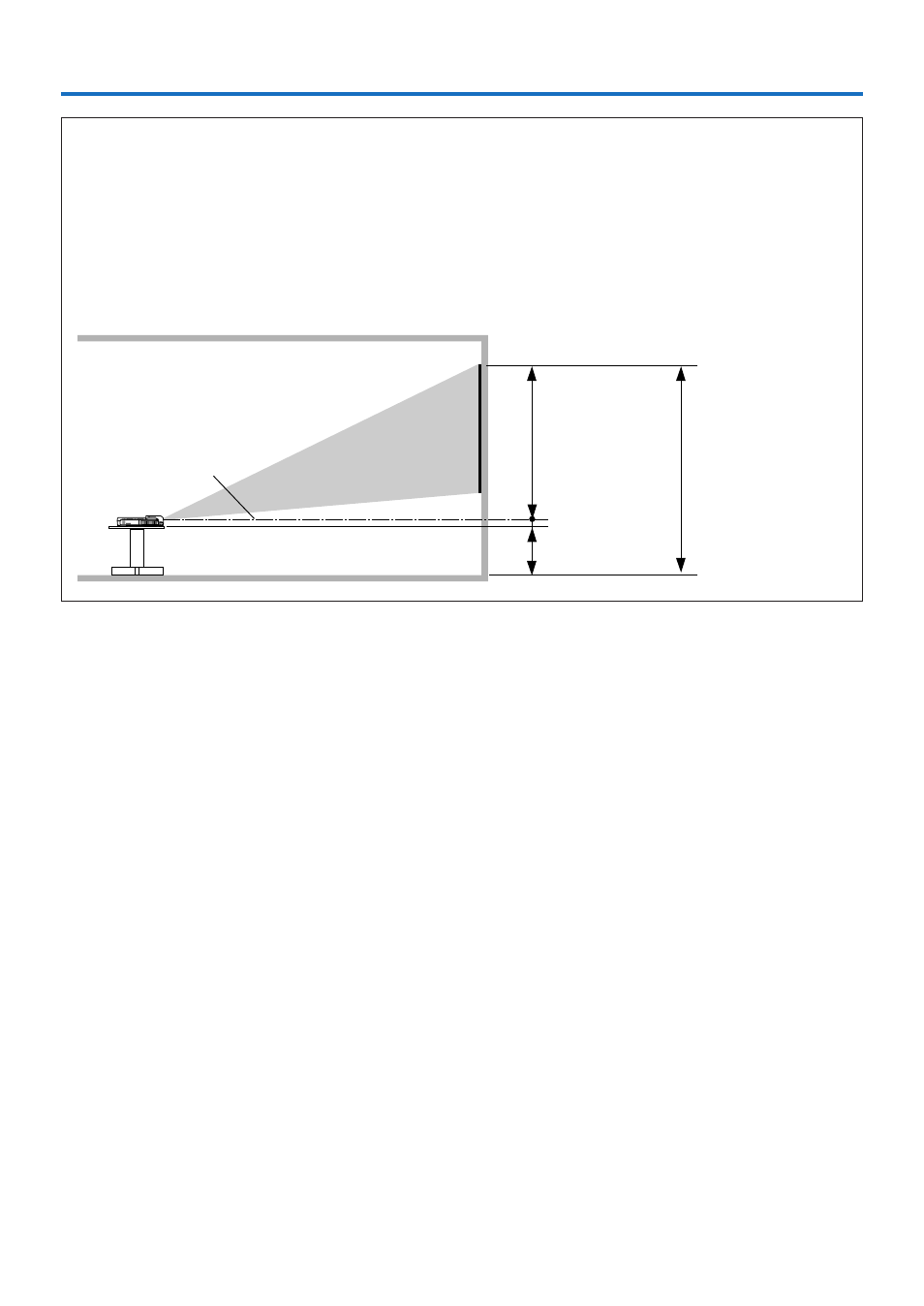

Screen size top edge
dimension measured
from floor
Stand dimension
Lens center
Screen size vertical
dimension
Approx. 0.03m (0.1feet)
