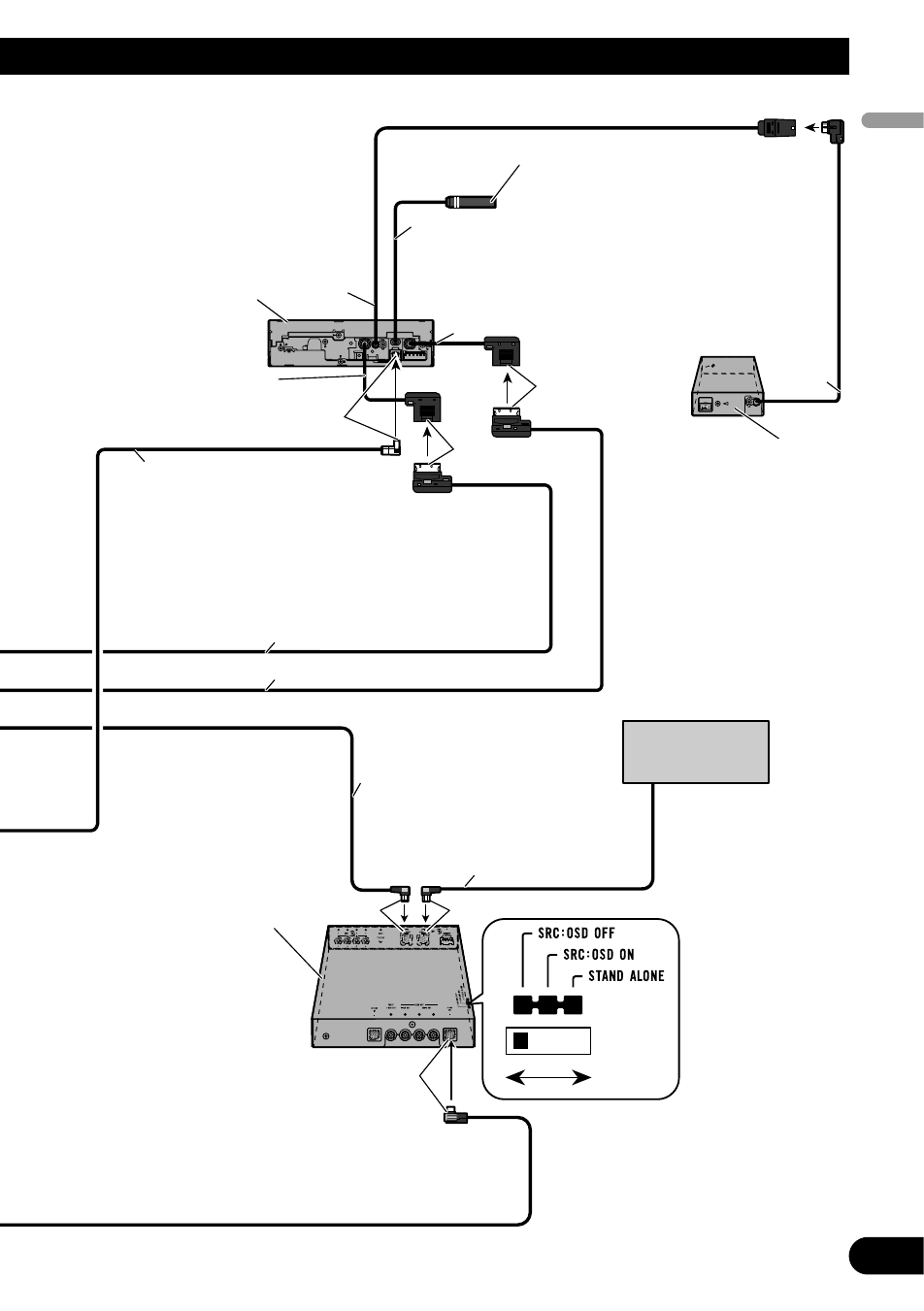

Fig. 2
4
Black Blue
Black
Violet
Blue
40 cm
15 cm
40 cm
1 m
This product
Power supply box
(supplied)
Blue
IP-BUS cable
Multi-CD player
(sold separately)
Hide-away TV tuner
(e.g. GEX-P5750TV(P))
(sold separately)
IP-BUS cable (supplied
with TV tuner)
Microphone/auxiliary input jack (3.5 ø)
(MIC/AUX IN)
1.5 m
30-pin cable (supplied)
30-pin cable (supplied)
Optical cable
(e.g. CD-AD600)
(sold separately)
Before installing this unit to your
vehicle, pull out the jack to the place
where you can easily plug in/out the
microphone or stereo mini plug cable.
Use a stereo mini plug cable to connect
with auxiliary equipment.
