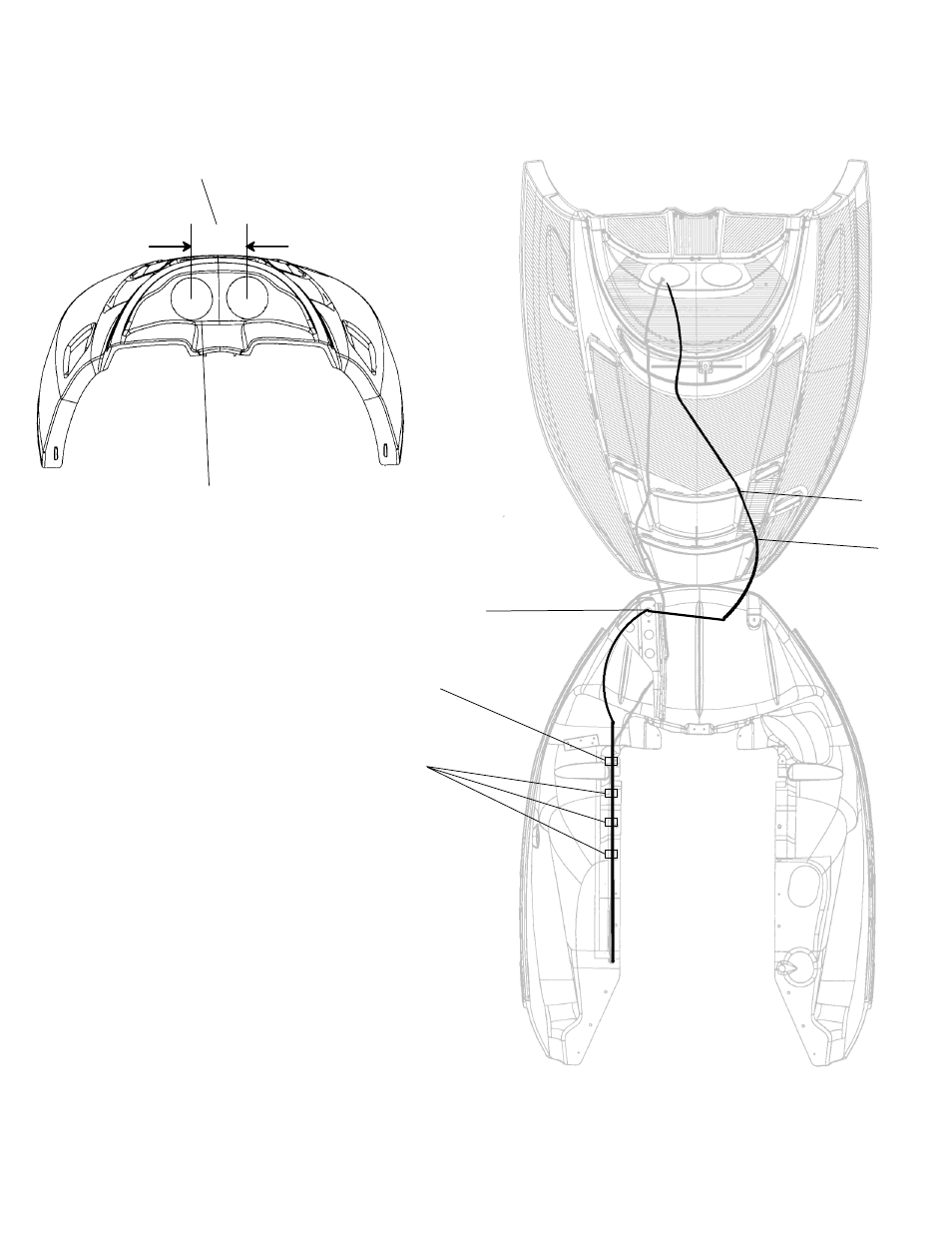

- Drill 4.5² hole in instrument housing 5.9² from the
tachometer center to the center of the new hole.
2001 PRO X 440 / XCF SP
SPEEDOMETER KIT INSTALLATION INSTRUCTIONS
5.9²
- Install speedometer into left hole, placing the
cushion between the speedometer and the hood.
- Route speedometer cable through plenum
- Route speedometer cable as illustrated. Tighten cable ends.
l
- Using cable ties provided (3) secure cable in places
illustrated by a l.
Dark line indicates speedometer cable routing.
Route Cable through left
hinge hole at this point.
Route through hole in plenum
l
- Remove plenum.
- Relocate tachometer to right side.
-
Install plenum
Install “J” retainer (PN 7080963)
using rivet (PN 7621435)
Install three “U” Clips
- Lay speedometer cable in the channel of the nosepan.
Attach with three clips as snown. Use the “J” clip and rivet to
secure the wire to the nosepan channel where indicated.
