3.2.1 Configuring the Local 1092

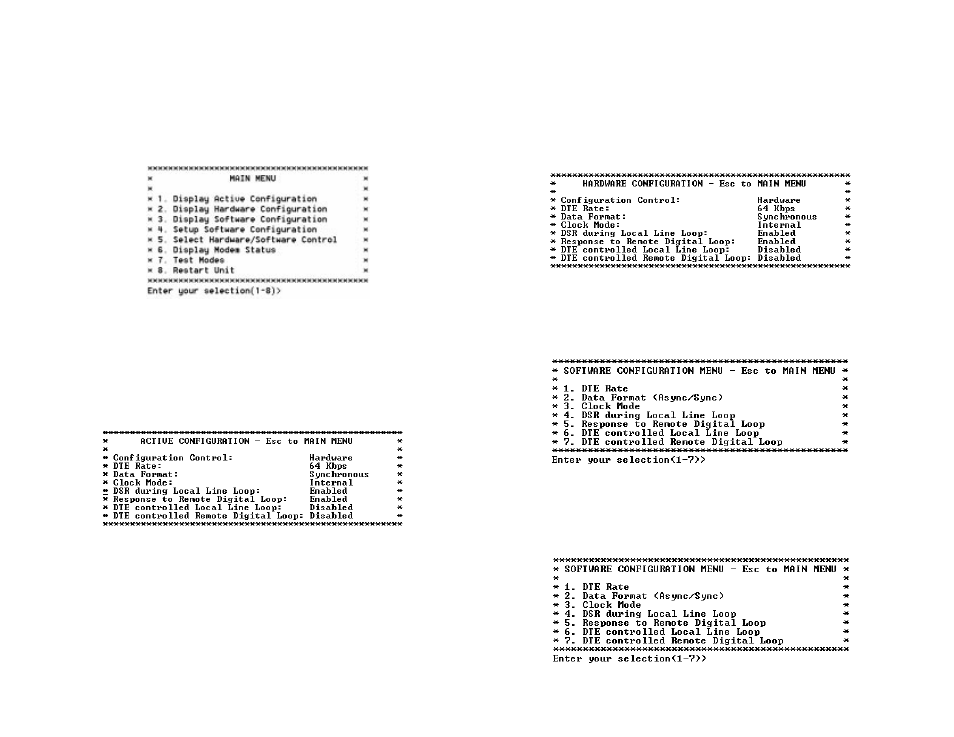

To configure the LOCAL 1092, make a selection from the following

MAIN MENU screen. To configure the REMOTE 1092, type [$] (Shift-
4) and refer to Section 3.2.2.

MAIN MENU Option 1: Display Active Configuration

Select Option 1 to display the most recent configuration of the local

Model 1092 (See below). The Model 1092 uses the active
configuration for its operation. If you make changes to the
configuration, you must select MAIN MENU Option 8. This will update
the unit to the new active configuration.

MAIN MENU Option 2: Display Hardware Configuration

Select Option 2 to display the configuration of the hardware DIP-

switches. To use the Hardware Configuration for the Active
Configuration, select MAIN MENU Option 5. Then select “Use
Hardware DIP-Switches”. Finally, select MAIN MENU Option 8 to save.

MAIN MENU Option 3: Display Software Configuration

Select Option 3 to display the configuration of the software

switches. To use the software configuration for the Active
Configuration, select MAIN MENU, Option 5. Then select “Use
Software Switches”. Finally, select MAIN MENU Option 8 to save.

MAIN MENU Option 4: Setup Software Configuration

Select Option 4 toedit the software configuration of the Model 1092.

To save changes after editing the software configuration, select MAIN
MENU Option 5, then select “Use Software Switches” and then select
MAIN MENU Option 8.
