AM3/AM3-B

Universal Mounting Bracket Assembly

Step 1. Place the universal bracket bar and the universal brackets on a flat surface.
Step 2. Slide the universal brackets onto the universal bracket bar (as shown in Figure 9) with the set screws facing up. At this time,

do not tighten the set screws that are located on the universal bracket.

Step 3. Place the display on a soft, flat surface, face-down. Next, place the universal bracket assembly on the back of the display,

with the universal brackets resting directly over the display mounting points.

Step 4. Once the desired position has been determined, place the griplates over each mounting point (dimples facing up) and secure

them using the appropriate hardware (see Page 5).

Step 5. At this time, center the universal bracket bar and tighten the set screws that are located on the universal brackets.

For the two upper mounting points, the dimples (griplates) must be facing up. For the two lower mounting points, the
dimples (griplates) must be facing down.

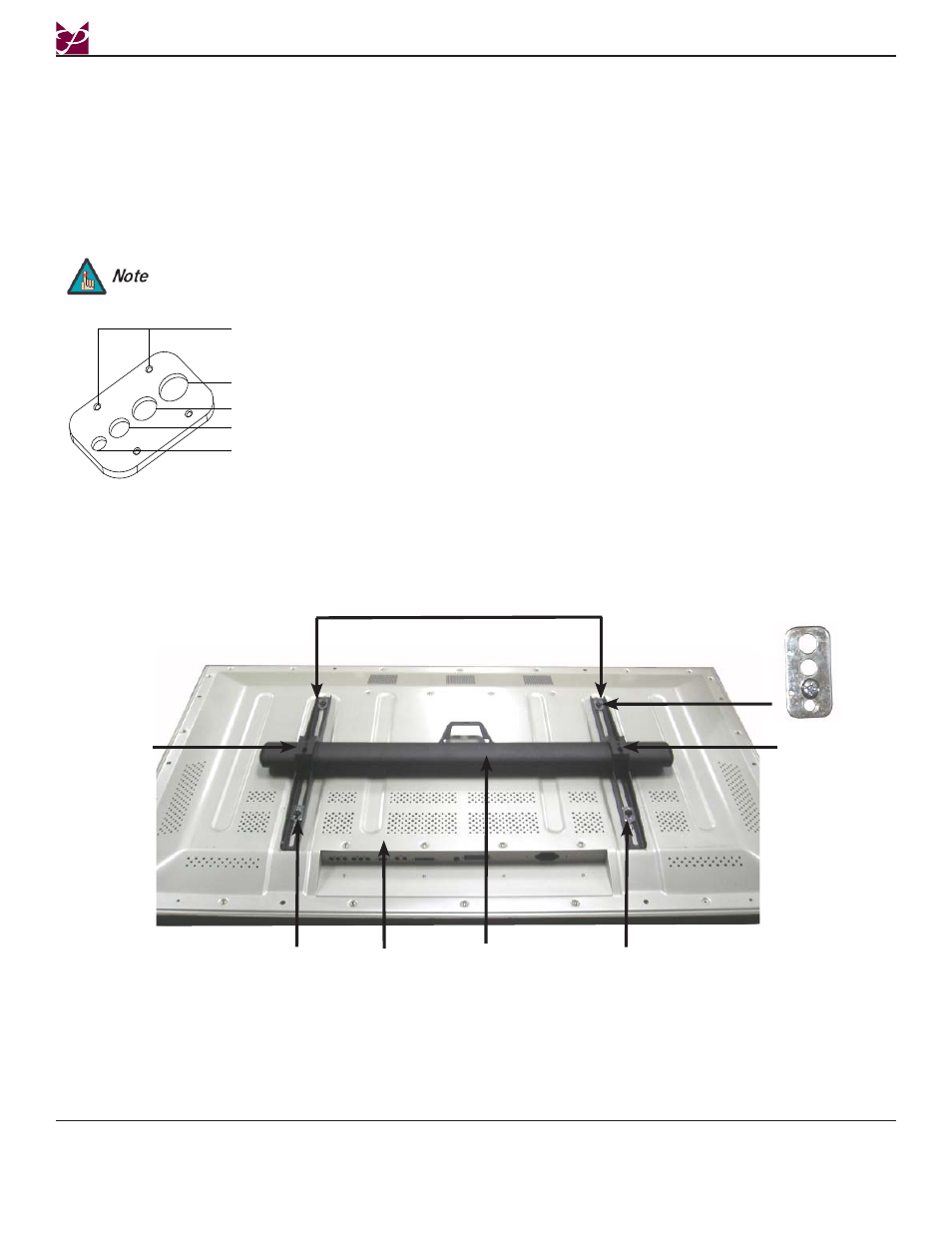

Dimples

Set Screw

Universal Bracket
Bar

Display

Griplate

Universal Mounting Bracket

Figure 9

Page 10

Installation Instructions
