V. MECHANICAL
SPECIFICATIONS

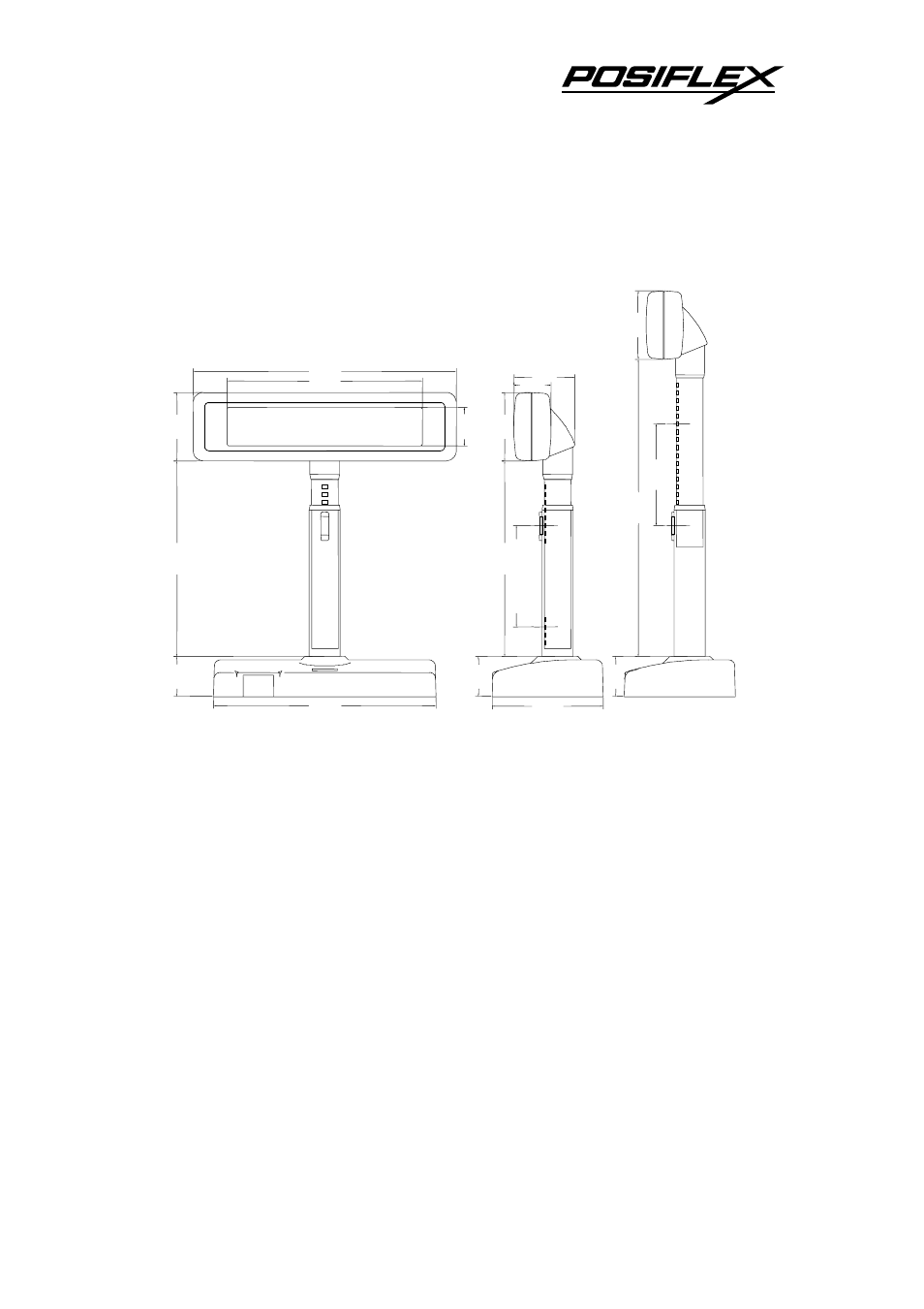

A. Mechanical Drawings
B. Mechanical Function
The pole of this customer display consists of 2 sections enabling
adjustment on the height of the pole. The total height of this display is dependent
on the pole adjustment, please refer to the drawings of last section The
difference between maximal and minimal height is 104 mm.
The display unit of this pole display can be rotated horizontally 359
° and
can also be slid horizontally.
At the bottom of this display is a base where an on/off switch is and that
the signal/power cable from the host computer and the cable to the pass through
connected device can be connected to.
The signal/power cable length between the base and the host computer is
1.8 M. This pole display offers 2 tilt angles 14.5
° / 30° from vertical position.
WARNING: If the user opens the pole display housing to make any change, all
the product warranty will be voided.
104.0
Stroke
104.0
70.0
260.0
193.0
39.4
36.8
60.3
70.0
70.0
(Lowest height)
(Max. height)
220.0 110.0
200.0 200.0
41.0 41.0
304.0
41.0
