ISSUED:07-25-11 SHEET #: 125-9225-1
Some parts may appear slightly different than illustrated.
Before you start make sure all parts listed are included with your product.
F
A
E
G H
I J K
B
D C
N L M

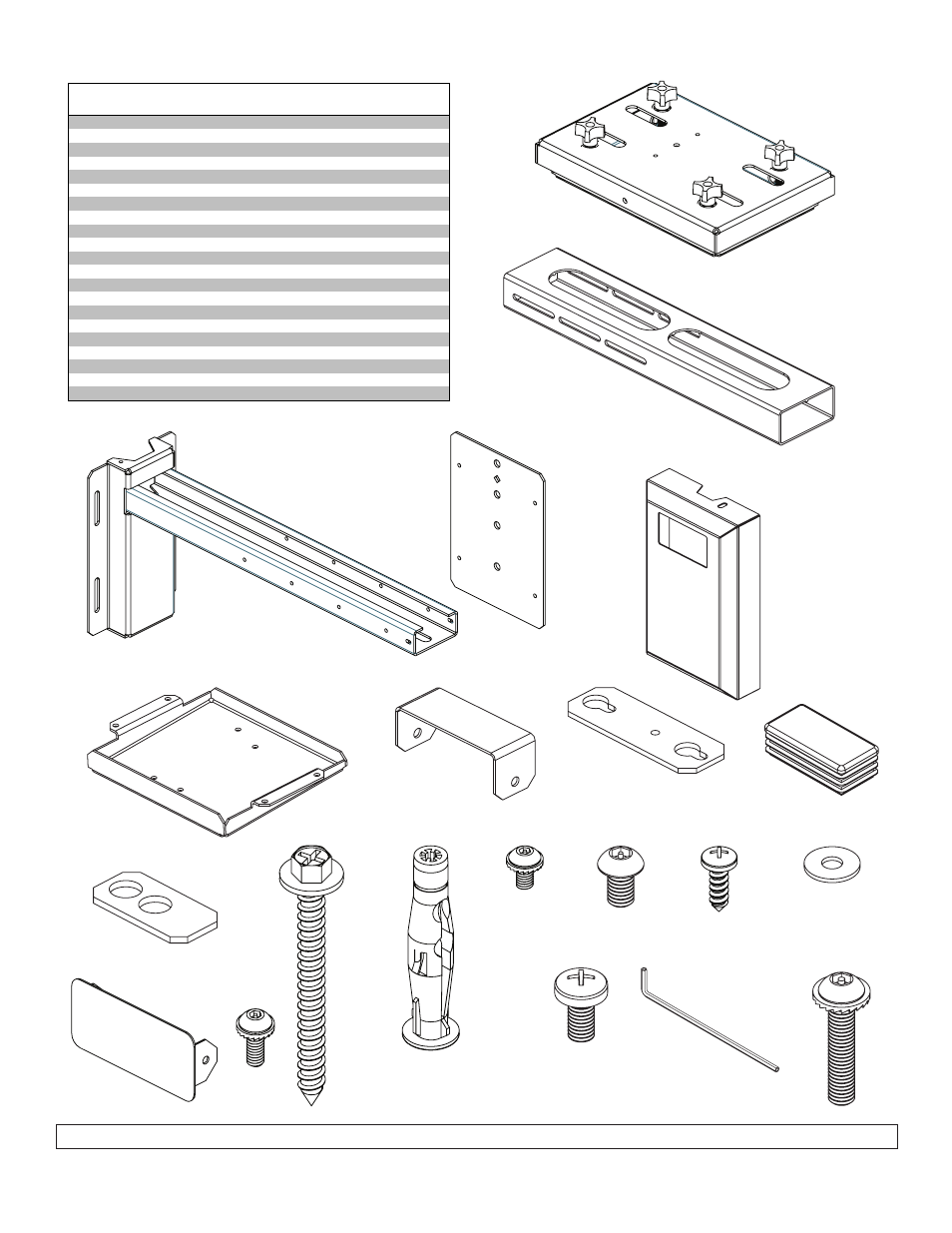

PARTS LIST
Description Qty. Part #
A adapter plate assembly 1 056-2051
B extension bracket 1 056-2039
C wall arm bracket 1 056-2045
D wall plate 1 056-2046
E wall plate cover 1 056-2047
F projector tilt plate 1 056-2042
G cable management bracket 2 056-2050
H projector attachment bracket 1 056-2048
I shim spacer plate 1 056-2049
J #14 x 2.5" wood screw 4 5S1-015-C04
K concrete anchor 4 590-0230
L M4 x 8 mm socket pin serrated washer head screw 4 510-2005
M M6 x 10 mm socket pin screw 4 520-2255
N #8 x 3/8" sheet metal screw 2 500-2008
O #10 flat black washer 4 540-9400
P M5 x 8 mm pan head black screw 4 570-0005
Q 4mm allen wrench 1 560-9646
R M5 x 20 mm socket pin serrated washer head screw 5 510-2065
S wall arm cap 1 056-2054
T M5 x 10 mm socket pin serrated washer head screw 6 510-2063
U extension cap 1 590-2337
P
O
Q
R
S T
U
