ISSUED:07-25-11 SHEET #: 125-9225-1
FRONT OF PROJECTOR FRONT OF PROJECTOR
FIGURE 9.2 FIGURE 9.1
FRONT OF PROJECTOR
FRONT OF PROJECTOR
FRONT OF PROJECTOR FRONT OF PROJECTOR

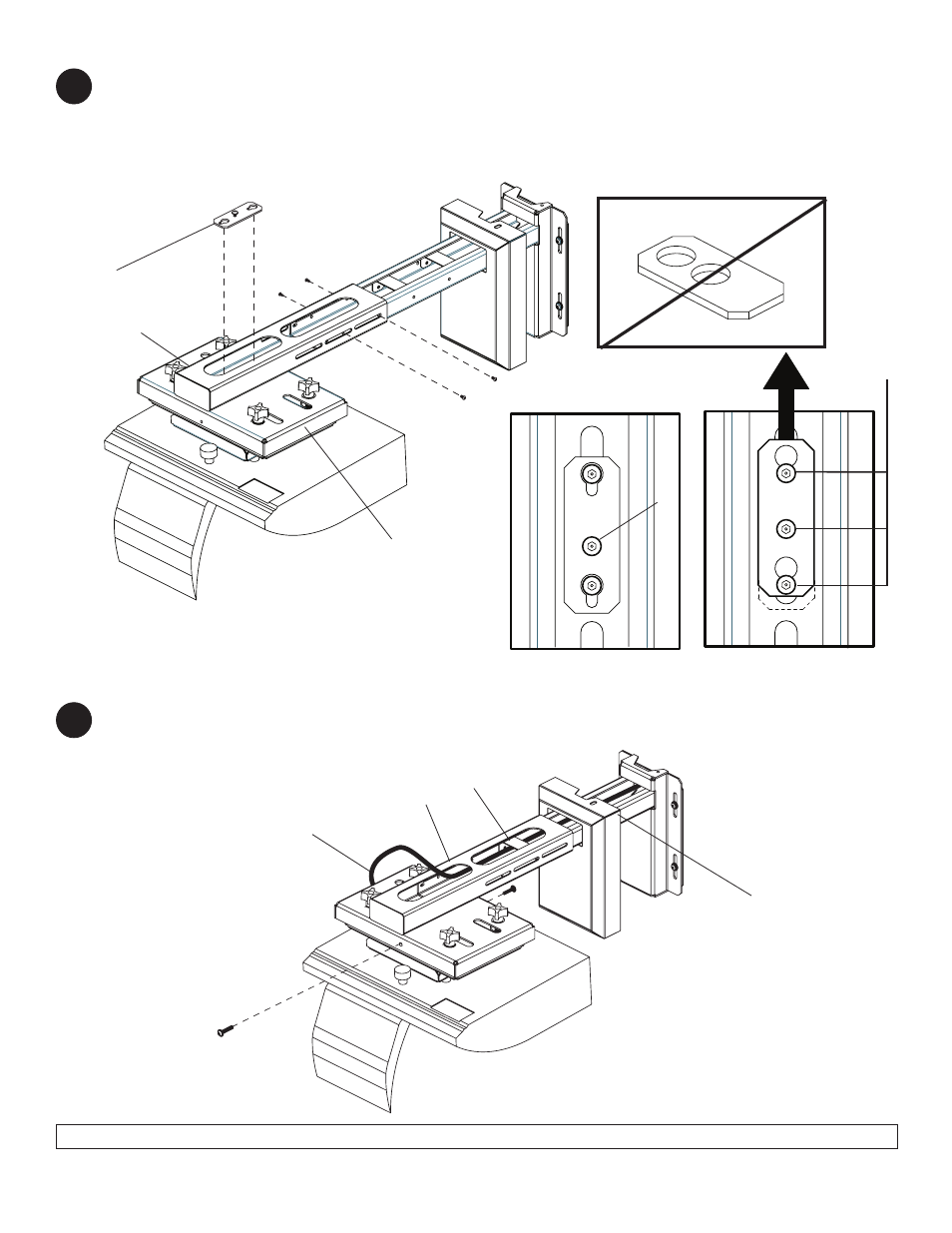

Installation using Wall Arm Bracket and Extension Bracket
PROJECTOR CABLES
11
12
Attach exposed M5 x 20 mm socket pin serrated washer head screws ( R) into top of adapter plate assembly (A)
through slot in extension bracket ( B) and keyholes in projector attachment bracket (H) as shown in detail 5.
Slide projector attachment bracket (H) toward wall. Once in locked position tighten all three M5 x 20 mm socket pin
serrated washer head screws ( R) using security wrench (Q) as shown in detail 6.
Secure extension bracket ( B) into wall arm bracket (C) and secure using four M5 x 10 mm socket pin screws (T)
using security wrench ( Q) in desired position. NOTE: Make sure that four M5 x 10 mm socket pin screws (T)
are used.
TIGHTEN
SCREWS
G
B
C
Route projector cables as shown. Use two cable management brackets ( G) as needed.
Fasten two M5 x 20 mm socket pin serrated washer head screws ( R) into top of adapter plate assembly (A).
R
NOTE: Verify that all screws
are in the center of the slot.
T
DETAIL 3 DETAIL 4
DETAIL 5 DETAIL 6
B
H
A
R
R
