OPEN
;
EQ MODE
REW FF REW FF
7
2 Ë
1
5 21 ∫
9
6
3
8
4
B 21
A
E
G
H
C
>
?
S-XBS TRAIN
REPEAT
A-B
D
@
Main unit
1 Volume control (VOL)
2 Headphone/remote control jack
(
Ë )
3 Hold, battery check/ recharging
window and lamps
Black when on hold.
4 Fast forward, Rewind buttons
(FF, REW)
While stopped
Fast forwards/rewinds the tape.
During play
Skip forwards/backwards as many
programs as the number of times (up
to 9) the button is pressed.(TPS)
???(Quick skip)
5 Play, stop button ( 21 / ∫ )
Press and hold during play to
change play direction.
6 Hold/release, battery check
switch (HOLD, RELEASE, BATT
CHECK)
HOLD:
Set to HOLD to prevent inadvertently
starting or interrupting play.
Release before using the unit.
The main unit and remote control
each have independent HOLD
switches.
Battery check:
Switch to HOLD then to RELEASE.
3 lamps: full
1 flashing lamp : almost empty
When recharging:
Flashing lamp: recharging
3 lamps: almost full
No lamps: fully charged
7 Cassette holder open switch
(OPEN)
8 Connection terminals and holes
for battery case
Charging stand / battery case
terminals and holes.
9 Battery compartment cover
Speaker/battery-charger stand
: Main unit terminal
; Speaker on/off switch
< DC IN jack
= Speaker plug
Remote control
> Display
? Hold switch (HOLD)
@ Rewind, Fast forward buttons
(REW, FF)
A Volume control (VOL)
Set the main unit’s volume to
between 5 and 7, then adjust this
control.
B Play, stop button ( 21 / ∫ )
C Earphone jack
D Reverse mode, A-B repeat button
(MODE)
To play the tape continuously:
Press and hold while stopped so
that “
k ” is displayed.
If you select “ l ”, both the
forward and the reverse sides are
played through once.
???
E Tone control, battery check button
(EQ)
To change the tone
Press during play.
S-XBS: Boosts the bass.
TRAIN: Reduces annoying sounds.
F Clip
G Plug
Stereo earphones
H Plug

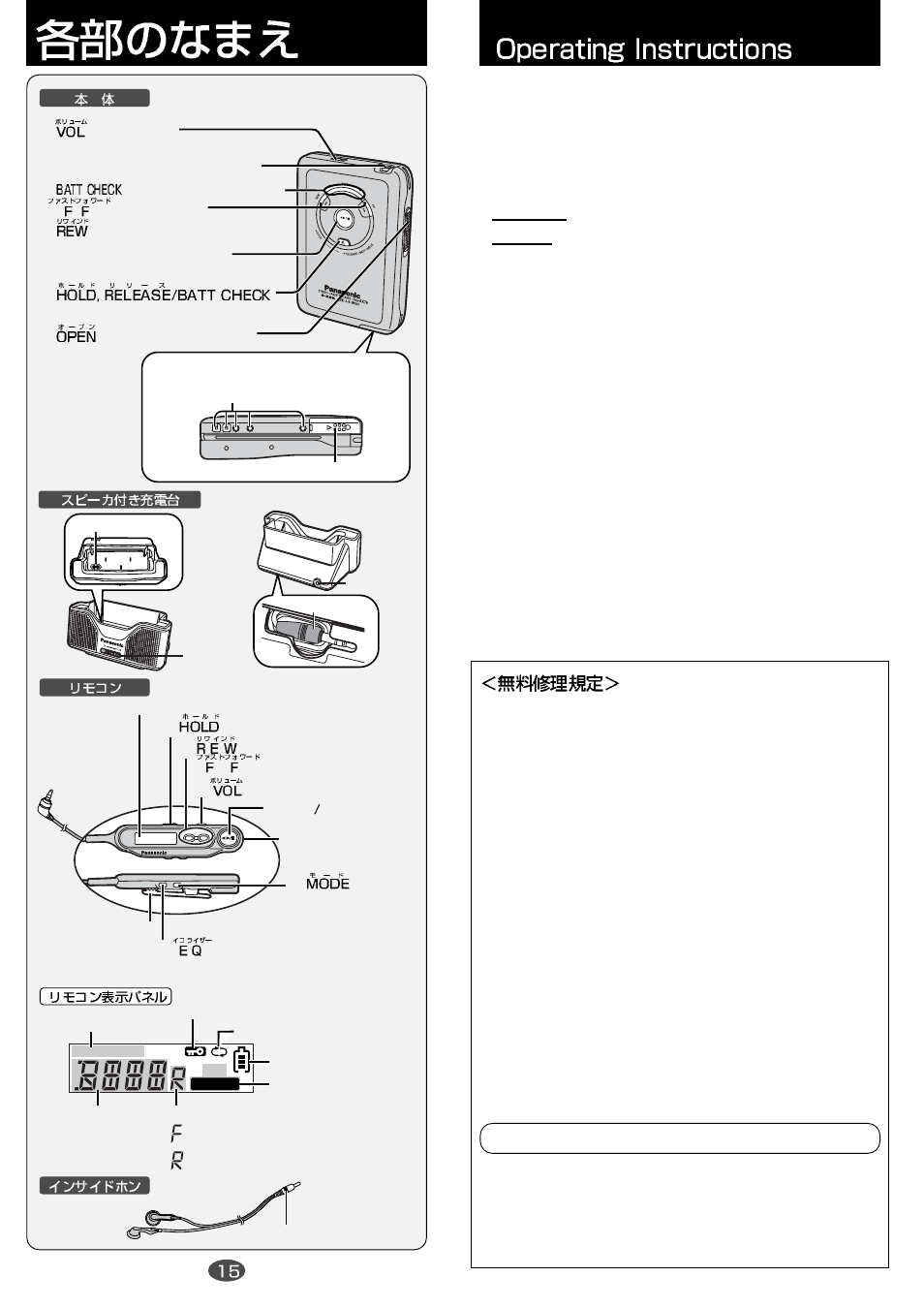

Refer to the illustration on the left for the location of the controls.
