7
3

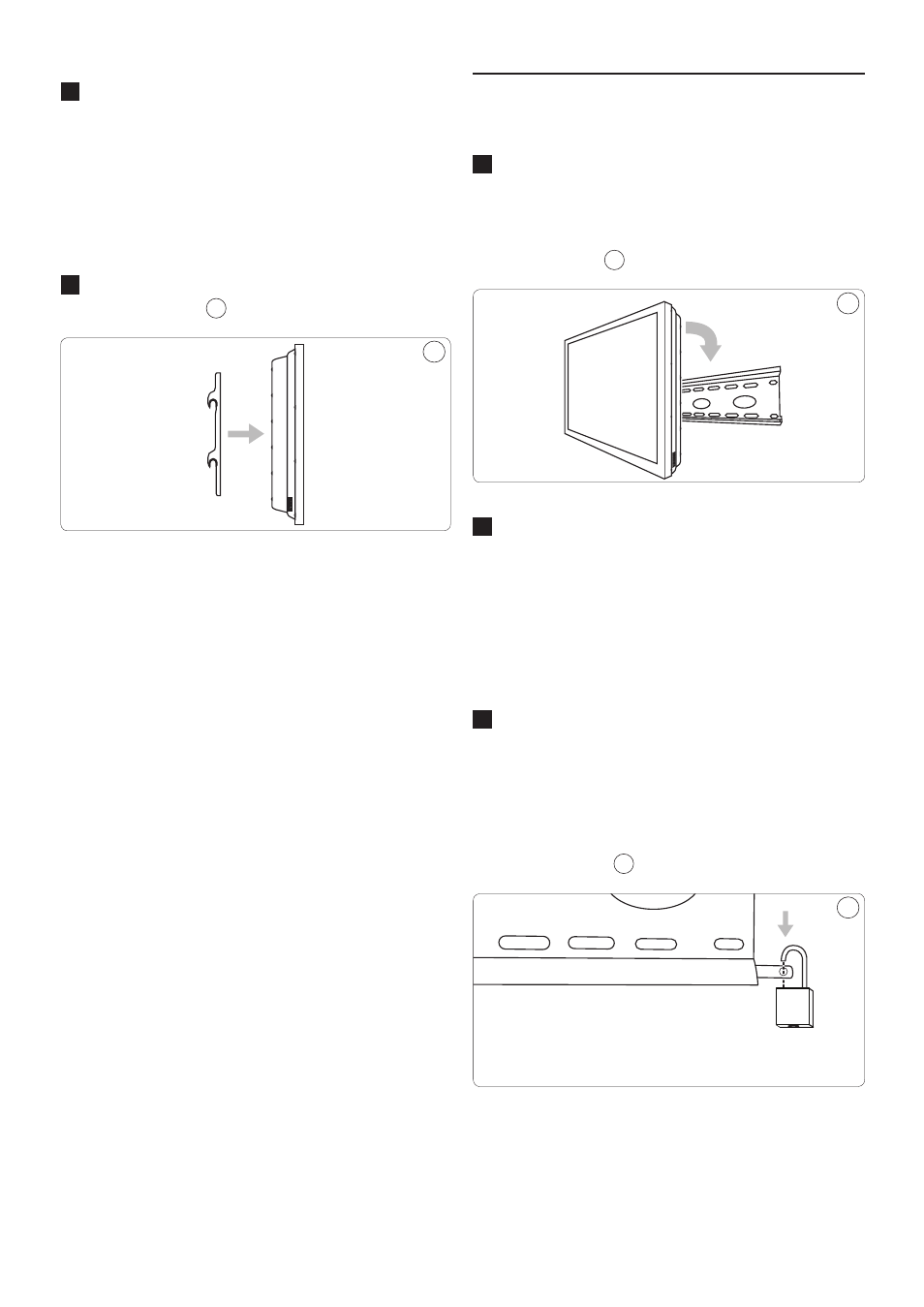

Attach the arms to the back of your display
using the bolts identified in Steps 1 and
2 and the corresponding lock washer
(C,F,I,orL).YouwillneedtousetheM6
washers(O)ifyouareusingtheM4,M5,
or M6 bolts. If your display has a curved or
recessed back, you may also need to use a
spacer(MorN).
4
Make sure the screws are snug, but do not
over-tighten.
5
5
E Tip
Use a longer bolt and spacer for displays
with curved or recessed backs. Do not use
the M6 washer (O) if you are using the M8
bolts (J or K).
4 Mounting and adjusting
1
With the help of another person, carefully
lift your display and place it on the wall
plate. Do not release the display until the
mounting arms have securely hooked onto
the mount.
6
6
2
Carefully hook the display onto the
wall plate.
B Warning
Insert the safety bar at the bottom of
the mount to avoid having the display
accidentally knocked off the mount.
2
ThisMUSTbedoneinordertosecurethe
displaytothemount.NOTE:Acotterpin
(included) Is used to secure the arms to
themountORapadlock(notincluded)can
be inserted into the hole at the end of the
safety bar to help prevent theft of
your display.
7
7
