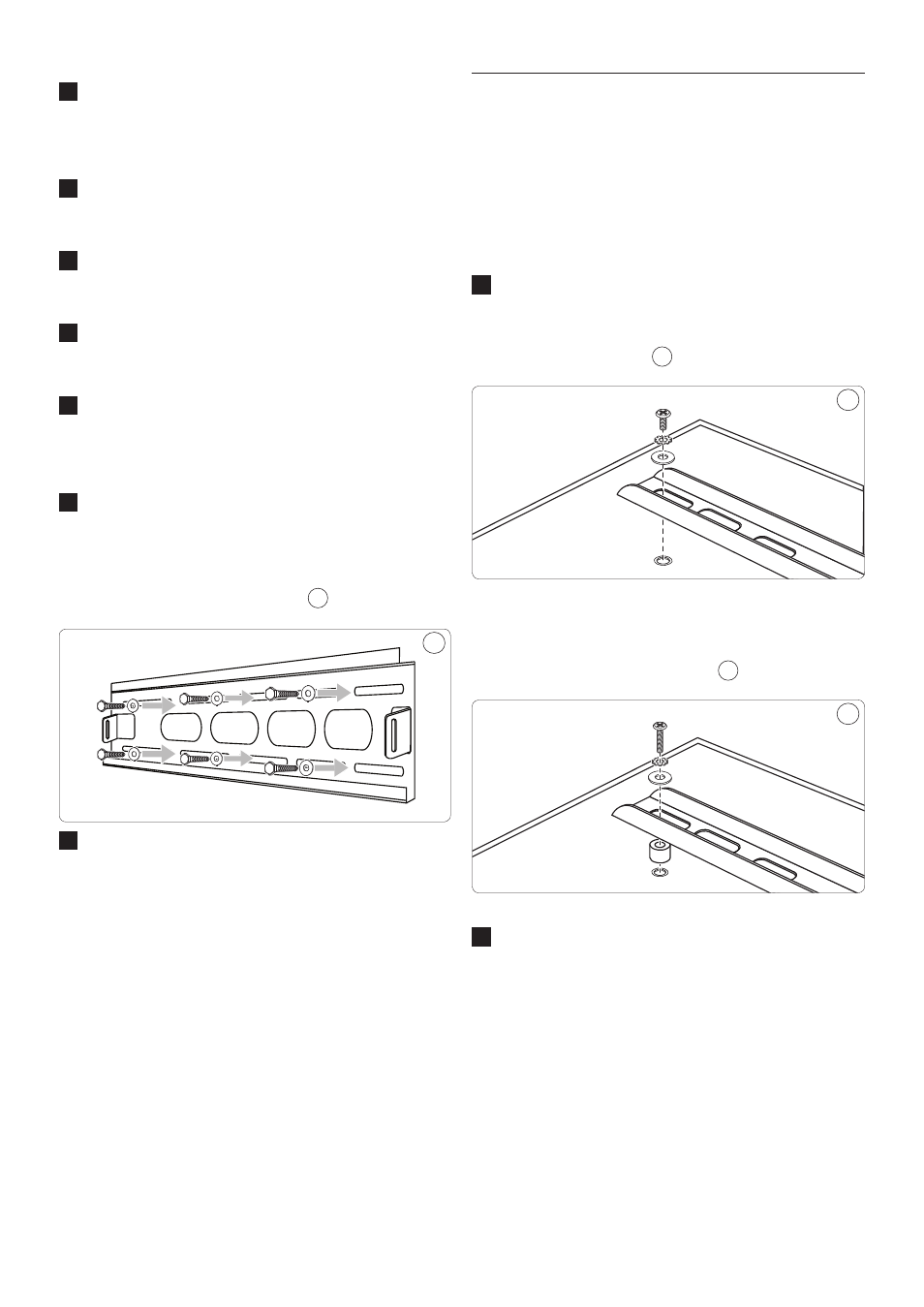

6
2
Usingtheenclosedmountingtemplate,
place the diagram against the wall and mark
six locations on the wall where the mount
Is to be Installed.
3
With the help of another person, place the
mount against the wall and level it using the
bubble guide.
4
While another person holds the mount in
place, mark six locations on the wall where
the mount is to be installed.
5
Setthemountasideanddrilla7/16"(11mm)
pilot hole at each marked location. Remove
any excess dust from the holes.
6
Insertaconcreteanchor(P)intoeachhole
so that it is flush with the concrete surface.
A hammer can be used to lightly tap the
anchors into place if necessary.
7
Placethemountbackagainstthewalland
secureitusingthelagbolts(Q)andlagbolt
washers(R)provided.Donotover-tighten
these bolts and do not release the mount
until all bolts are in place.
2
2
8
Onceall(6)lagboltsareinplaceyoumust
tighten each one. Be sure not to over
tighten.
D Note
If the concrete wall is covered by a layer
of plaster or drywall, the concrete anchor
must pass completely through the layer to
rest flush with the concrete surface.
3.3 Attaching the arms to the display
B Warning
Use extra care during this part of the
installation. Avoid laying your display face
down if possible as it may damage the
viewing surface.
1
Examinethebackofyourtelevision.
If the back of your display is flat: You
will be using one of the shorter bolts from
the hardware kit.
3
3
If the back of your display is curved
or recessed: You will be using one of the
longer bolts and a spacer.
4
4
2
Determine the correct diameter bolt
to use by trying one bolt each from Bags
1-4ofthehardwarekit.Donotforceany
of the bolts – if you feel resistance stop
immediately to avoid damaging your display.
