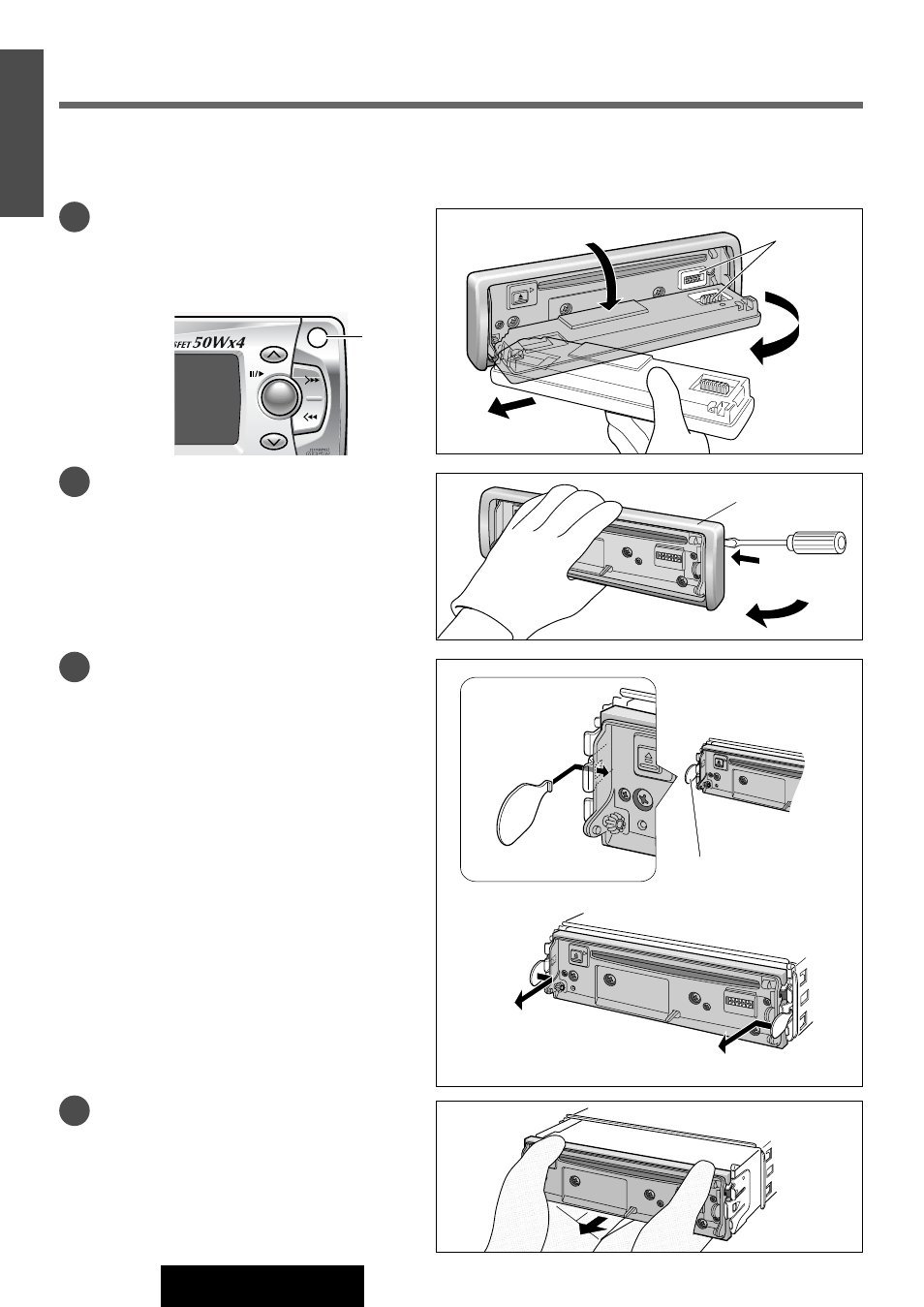

To Remove the Unit
Switch off the power of the unit.
Remove the removable face plate.
q Press [OPEN]. The removable face plate will
be opened.
w Push the face plate to either the right or left.
e Pull it out toward you.
Remove the Trim Plate t with a screwdriver.
Remove the unit pulling with both hands.
Installation
(continued)
BAND
OPEN P·SET / DISC
FOLDER
SET / APM
TUNE
TRACK
Open
Contact
Pull out
Push
t Trim Plate
Screwdriver
u Lock Cancel Plate
Open
q Insert the Lock Cancel Plates u along the
grooves on both sides of the main unit
until “click” is heard.
w Pull out the unit while pushing the plates
further inside.
Insert the tab
end in the
outer groove.
“ Click”
Insert
Pull out
