07MSN4552-DS4

SN4552/2BIS/EUI: 2-port ISDN BRI VoIP Gateway-Router, 10/100Base-T WAN, 4-port
10/100Base-T switch 100–240VAC external power supply
Note: Standard firmware includes SIP signaling protocol. H.323 or MGCP/IUA
firmware can be requested at order time, or downloaded free of charge from

http://upgrades.patton.com

Options & Accessories

PM-BRI-EXT: External S-Bus Phantom-Power Supply 40V DC for Phone only (not
required)
SNSW-VPN1: License Key for IPsec VPN support (DES, 3DES, AES)
SNSW-QSIG1: License Key for QSIG support
SNSW-REG: SIP Registrar

Ordering Information

Network Integration

Specifications*

LAN and IP Services

4-port 10/100Base-T LAN Switch •
Auto-MDI-X • IPv4, RIPv2, ICMP •
Dynamic and static NAT and NAPT •
ACL Firewall • DNS, DynDNS • DHCP
Server • SNTP Client • Optional IPsec
VPN (DES, 3DES, AES)

WAN Connectivity

10/100BaseT Ethernet WAN • Auto-MDI-
X • DHCP Client • PPPoE Client (multi-
session) • IP Multi-Netting

IP Quality of Service

Voice priority, DownStreamQoS

™

•

Traffic Management, shaping policing •
IEEE 802.1p, TOS, DiffServ Labeling •
IEEE 802.1Q, 4096 VLANs (Tag inser-
tion/deletion)

Management

Web-based GUI • Fully documented CLI •
Telnet and HTTP access • TFTP configu-
ration up- and download • TFTP firmware
upgrade • SNMPv1 agent, MIB II and
enterprise MIB • Built-in diagnostic tools
• Auto-Provisioning—Configuration and
Firmware

ISDN Specification

2 ports Euro-ISDN BRI/So RJ-45 • 1 NT
port/1 TE port • DSS-1, Q.921, Q.931 •
Point-point and point-multipoint •
Lifeline Bypass Relay TE port to NT port
• Optional QSIG support

Voice Signaling

SIPv2 • H.323v4 • MGCP/IUA • SIP call
transfer, redirect • Overlap or en-bloc

dialing • DTMF in-band & out-of-band •
Configurable call progress tones

Fax and Modem Support

T.38 Fax over IP • Fax relay and bypass •
Modem bypass

Call Routing & Services

• Regular expression number matching •
Regular expression number manipulation
• Least Cost Routing • Number blocking
• Short-Dialing • Digit collection •
Distribution- and Hunt- Groups • 2nd
call offering

Voice Processing

G.711μ/A-law • G.723.1 (5.3/6.3 kbps) •
G.729, G.729a, G.729ab (8 kbps) • G.726
ADPCM (16 ,24, 32, 40 kbps) • G.168
echo cancellation (25ms) • Transparent

ISDN data • Silence suppression and
comfort noise • Adaptive and config-
urable dejitter buffer • Configurable pack-
et length

Power & Packaging

Dimensions: 4.2W x 1.5H x 5.0D in.
(10.6W x 3.9H x 12.7D cm)
Weight: < 15.9 oz (450 g)
Power Consumption < 4W

Operating Environment

Temperature: 32–104°F (0–40°C)
Humidity: up to 90%, non condensing

Compliance

FCC Part 15 Class A (US EMC) • CE per
RTTE 99/5/EC (EMC and LVD) • Safety -
EN60950 • TBR-3 (ISDN BRI/So)

Patton is a registered trademark and the
termsSmartNode, DownStreamQoS,and
SessionRouter are trademarks of Patton
Electronics Company in the United States and
other countries.

* Specifications subject to change without notice.

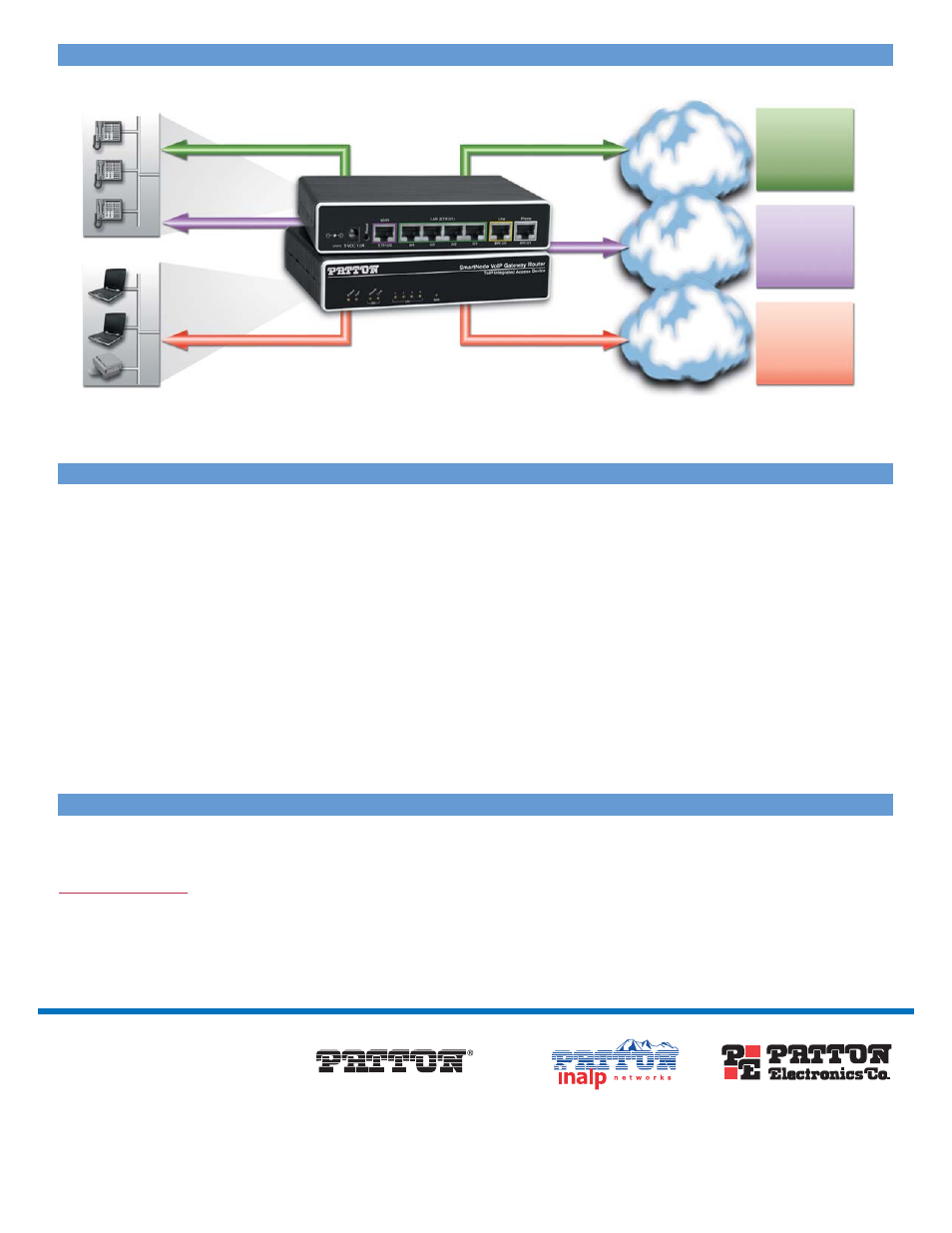

VoIP

LAN

SN4552

PSTN

Internet

VoIP/

Packet Voice

Regular Telephone Calls

Internet Access

Still make

incoming and

outgoing PSTN

calls with

one phone

Bypass the

PSTN for low-

est cost access

using VoIP

Complete data

access con-

nects your LAN

to the WAN
