Page 41
41
10
3
7
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
59192
Cap Valve Tire
2
65139
Stem Valve
3
106222X
Tire F T 15 X 6 0 - 6 Service
4
59904
Tube Front (Service Item Only)
5
106732X624
Rim Asm 6"front Service
6 278H
Fitting
Grease
(Front
Wheel
Only)
7 9040H
Bearing
Flange
(Front
Wheel
Only)
8
184707X624
Rim Asm 12"rear Service
9
184708
Tire R T 22 x 9.5-12 Service
10
7154J
Tube Rear (Service Item Only)
11
104757X428
Cap Axle 1 50 X 1 00
- -
144334
Sealant, Tire ( 10 oz. Tube)
8
14
5
1 176674
Decal
Dash
2
173493
Decal Fender Auto
3
184927
Decal Hood LH
4 181253
Decal
Footrest
5 186906
Decal
Tec
3yr
Warranty
6 106202X Refl
ector
Tail
Light
7
184926
Decal Hood Rh
8
170563
Decal Warning Mower
9
158166
Decal Fender Logo
KEY PART
NO. NO. DESCRIPTION
1
6
2
1
5,8
4,10
3,9
11
7
WHEELS & TIRES
10
157140
Decal Fender Danger E/F
11
184928
Decal Ins Strg Whl
12 140837
Decal
Brake
Parking
13
185625
Decal Replace Part
14
175291
Decal V-Belt Schematic
20 145005
Decal
Bat
Dan/Psn
- -
184433
Manual Owner's (English)
- -
184434
Manual Owner's (French)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
2
11
20

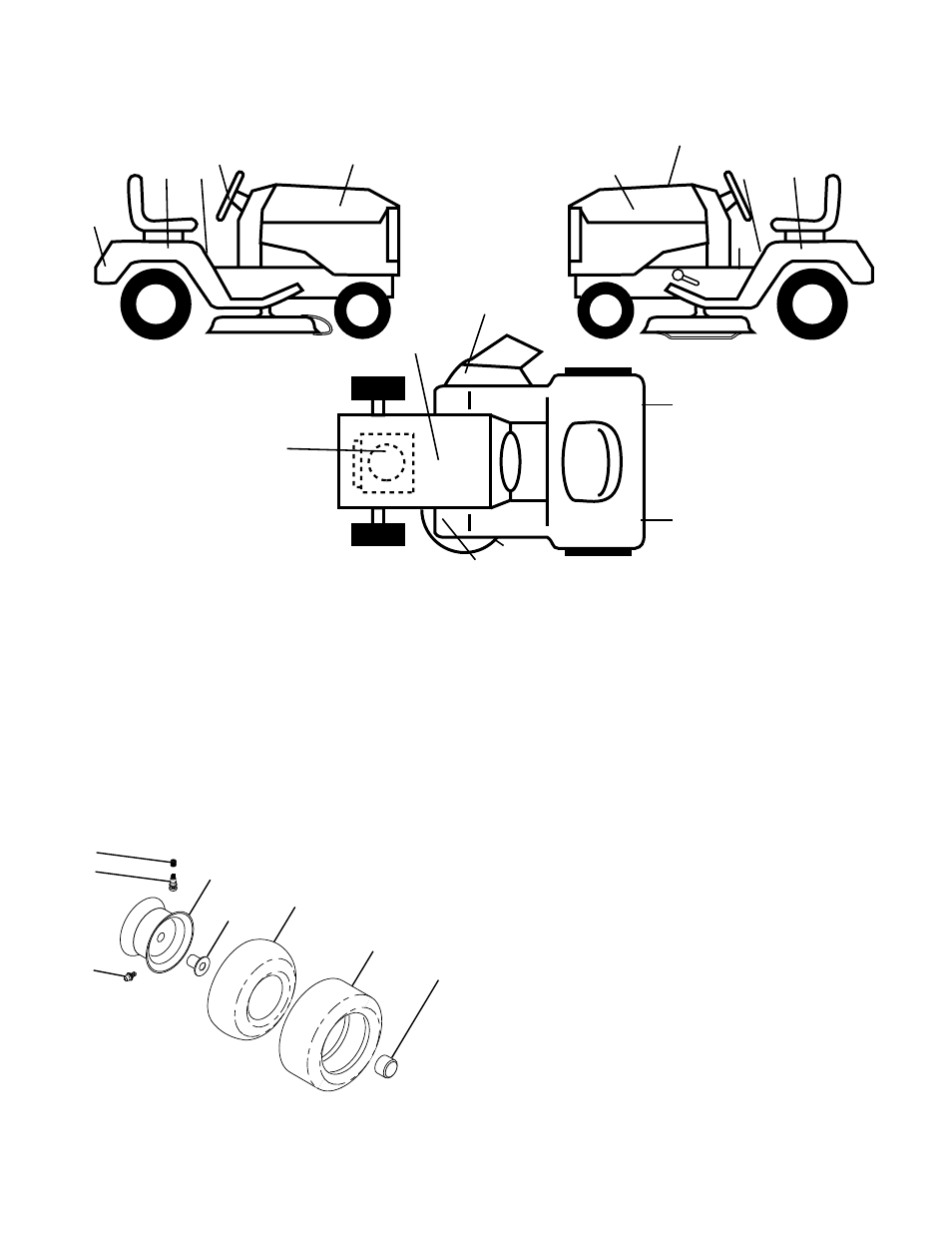

REPAIR PARTS
TRACTOR - MODEL NUMBER POGT20T48STA, PRODUCT NO. 954 56 96-77
DECALS
4
13
6
6
12
