KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 140117 Seat
2 140551 Bracket Pivot Seat 8 720
3 71110616 Bolt Fin Hex 3/8-16 Unc x 1
4 19131610 Washer Flat 13/32 x 1 x 10 Ga.
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 Unc
7 124181X Spring Seat Cprsn 2 250 Blk Zi
10 182493 Pan Seat
11 166369 Knob Seat Adj. Wingnut
12 121246X Bracket Mounting Switch
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 134300 Spacer Split
16 121250X Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 171852 Bolt Shoulder 5/16-18 Unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 X 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
27 17490608 Screw 3/8-16 x 1/2
28 171877 Bolt 5/16-18 x 3/4
11
1
24
16
15
12
13
17
25
7
7
27
2
6
22
21
5
10
5
14
28
28
4
3
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
REPAIR PARTS
TRACTOR - MODEL NUMBER POGT20T48STA, PRODUCT NO. 954 56 96-77

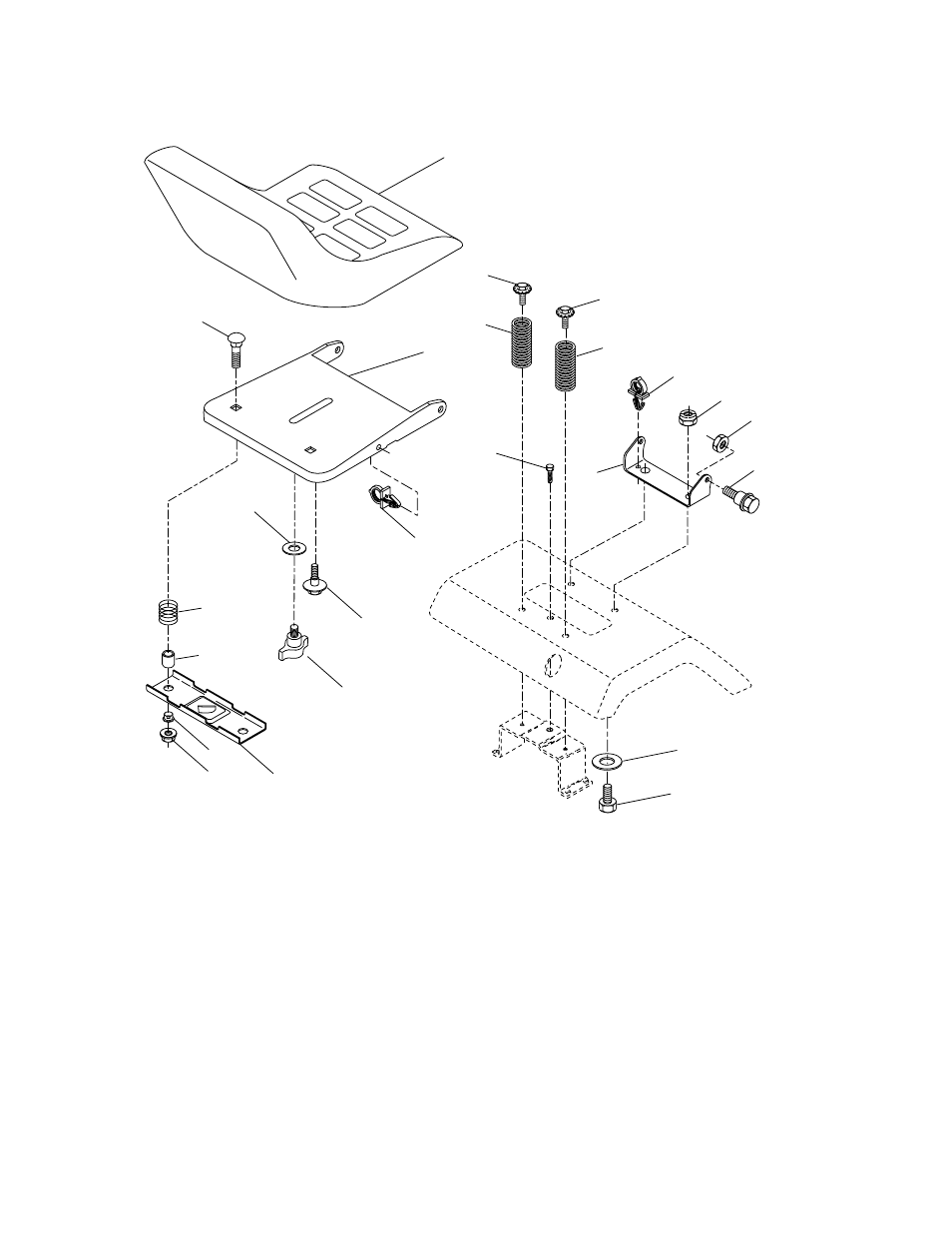

SEAT ASSEMBLY
