O PTIONAL E QUIPMENT C ONNECTIONS
5
EN
GLI
S
H
Optional Equipment Connections
Note: The remote control must be programmed with supplied
codes to operate the optional equipment.
PIP Operation with VCR
This television includes a two tuner Picture In Picture (PIP)
feature. This allows viewing two (2) live broadcasts at the
same time with or without an external video source (VCR).
Note: VIDEO 1 input is a dual-purpose input. It is primarily
intended for connection with 480i devices such as a DVD
player using the Y P
B
P
R
component video jacks and
Audio L & R jacks. However, it can also be connected to
conventional composite video sources such as a VCR,
using only the Y/Video jack and Audio L & R jacks. The
on-screen label will display Component or Video 1
depending on which source is connected.

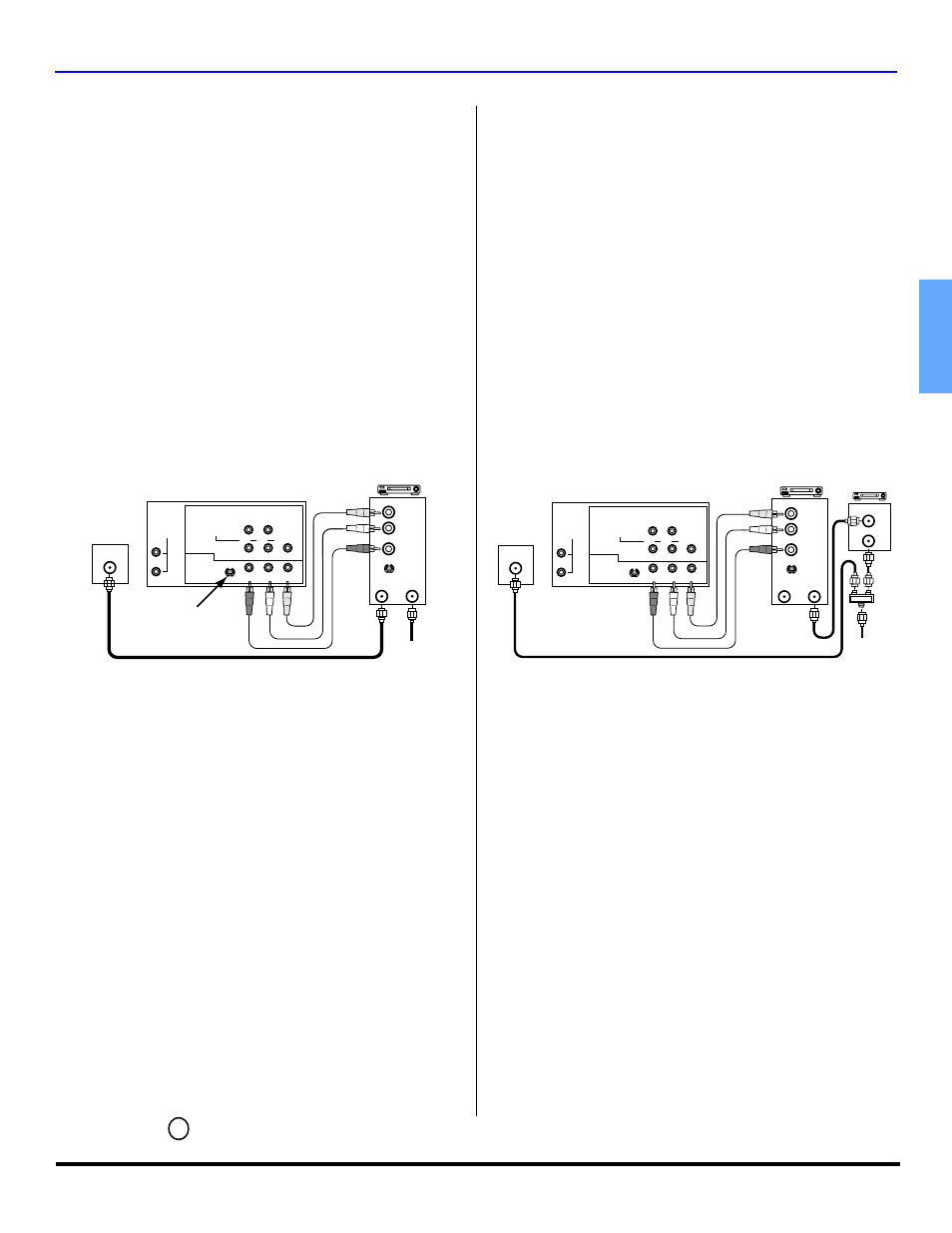

Connect your television to a VCR, as shown.
Note: Do not connect S-Video and Video signal to input 2 at
the same time. If both are connected, signal interference
will result. Use either the S-Video or the video signal
only.
Procedure
Press the PIP button on the Remote Control to display the
PIP frame on screen.
Note: The audio is from the Main Picture only.
To view an external video source in the PIP frame:
• Press the TV/VIDEO button on the Remote Control to
select the same video input to which your VCR is
connected.
• Verify that the VCR is on.
• Choose channels for the Main Picture by pressing the
TV button on the Remote Control and using the numeric
keypad or CH up/down button.
• Choose channels for the PIP frame by pressing the VCR
button on the Remote Control and using the PIP CH up/
down buttons.
Note: The SWAP button switches the PIP and Main Picture
source. Press the RECALL button for on screen PIP and
Main Picture source status.
Front Control Panel
The front control panel can be used to access menus and switch
video mode when the remote control is not available.
Procedure
• Press to select VIDEO input mode.
PIP Operation with VCR and Cable Box
This television includes a two tuner Picture In Picture (PIP)
feature. This allows watching two (2) live broadcasts at the
same time with or without an external video source (VCR).
Without a VCR (External Video Source)
Procedure
• Connect incoming cable to antenna (ANT) input on back
of TV.
• Press the PIP button on the Remote Control to display
the PIP frame.
Note:
Audio is for the Main Picture only.
• Choose channels for the PIP frame by pressing the
Remote control PIP CH up/down buttons.
• Choose channels for the main Picture by pressing the
Remote Control CH up/down buttons or by using the
numeric keypad.
With a VCR (External Video Source) and Cable Box
Connect your television to a VCR and Cable Box, as shown.
Procedure
• Press the PIP button on the Remote Control to display
the PIP frame.
To view scrambled channels through your Cable Box in the
PIP frame:
• Press the TV/VIDEO button on the Remote Control to
select the same video input to which your VCR is
connected.
• Verify that the CABLE BOX and VCR are ON and the
VCR tuned to channel 3 or 4.
• Choose channels for the PIP frame by pressing the CBL
button on the Remote Control and using the numeric
keypad or PIP CH up/down buttons.
• Choose channels for the Main Picture by pressing the
TV button on the Remote Control and using the numeric
keypad or CH up/down buttons.
Note:
The SWAP button switches the on screen PIP
and Main Picture source. Press the RECALL
button for PIP and Main Picture source status.
P R P B Y/VIDEO
R-AUDIO-L
R-AUDIO-L VIDEO
COMPONENT
VIDEO INPUT
INPUT 1
S-VIDEO
INPUT 2 L
R
TO AUDIO
AMP
P L A Y
S T O P R
E
W F F
VCR
VIDEO OUT
AUDIO OUT
L
R
ANT OUT ANT IN
S-VIDEO OUT
Use either the S-Video or Video
Connection
ANT
Incoming
Cable
CONNECTIONS ON BACK OF THE TV
CABLES NOT SUPPLIED
TV/VIDEO
P R P B Y/VIDEO
R-AUDIO-L
R-AUDIO-L VIDEO
COMPONENT
VIDEO INPUT
INPUT 1
S-VIDEO
INPUT 2 L
R
TO AUDIO
AMP
PLAY
STOP R E W FF
VCR
VIDEO OUT
AUDIO OUT
L
R
ANT OUT ANT IN
S-VIDEO OUT
ANT
Incoming
Cable
CONNECTIONS ON BACK OF THE TV
CABLES NOT SUPPLIED
ANT IN
ANT OUT
PLAY
STOP R
E
W FF
CABLE BOX
