240
96 66
Ø113
G1”
Product Code
XGP388 48Vdc A
XGP388 220-240Vac
50-60Hz A/AF
XGP388 48Vdc B
ZGB388 220-240Vac
50-60Hz / 48Vdc L P
ZBG388 220-240Vac
50-60Hz / 48Vdc L T
ZGP388 TW3
ZGP388 TW4
ZPP388
ZVB388
ZWB388
ZGL388 P
Ordering Number
9199 186 76132
9199 186 77132
9199 186 76532
9199 186 72732
9199 186 72232
9199 186 71032
9199 186 71132
9199 186 70032
9199 186 70132
9199 186 70232
9199 186 70332
Description
ObstiVision 48Vdc Type A
ObstiVision 220-240Vac 50-60Hz Type A
(flasher selector is integrated)
ObstiVision 48Vdc Type B
Control Box 220-240Vac 50-60Hz input
48Vdc output with photo switch
ontrol Box 220-240Vac 50-60Hz input
48Vdc output with timer
3-way throughwiring junction box
4-way throughwiring junction box
Mounting Kit - pipe installation
Mounting Kit - building top installation
Mounting Kit - wall mounted installation
Photo sensor
product details
Technical descriptions
Mechanical
• Yellow powder painted high pressure die-cast aluminium housing
• UV-protected clear glass cover – 5mm thick
• Stainless steel plate to support L E D unit
• Operating temperature = - 40
°
C to +70
°
C
• I P 6 5
• Wind load at 200 km/hr of less than 40 Newton force
• Threaded base for 1 inch in diameter size of pipe
(other size can be applied with the reducer or enlarger)
Electrical
• Standard type using nominal operating voltage of 48Vdc or
220-240Vac; 24 Vdc systems are available upon request
• Terminal block for 2 x 1.5mm 2 cables
• Power consumption: 5W for 48Vdc Type A version, 7W for
220-240Vac Type A version and 12W for 48Vdc Type B version
• Constant current 100mA for Type A, 250mA for Type B
• Surge protection device integrated: according to Institute of
Electrical and Electronics Engineers ( I E E E ) requirement
Optical
• Luminous intensity of greater than 10 cd for low intensity
type A obstacle light and greater than 32 cd for low intensity
type B obstacle light
• Horizontal radiation coverage 360
°
• Vertical radiation coverage 50
°
• Color: aviation red, choice of fixed or flashed light
Installation
• Pipe installation: the standard luminaire comes with threaded
base – ready to be installed with threaded pipe of 1 inch in
diameter (other size of pipe – use standard reducer or enlarger)
• To attach ObstiVision with existing antenna / pipe or
wall-mounted installation, the mounting kit is required.
Accessories
• Control box *
• Photo switch and sensor
• Mounting accessories *
• 3-way and 4-way junction box for through-wiring
• Solar cell
Product compliances
• Product compliance with International Civil Aviation Organization
( I C AO ) standards and recommended practices – Aerodromes
Annex 14 Volume 1, 3rd edition – July 1999, Chapter 6.
• Federal Aviation Administration ( FA A ) standard
* please check with your local Philips agent for details
Specifications subject to modification
All intellectual property rights reserved,
Koninklijke Philips Electronics N.V.

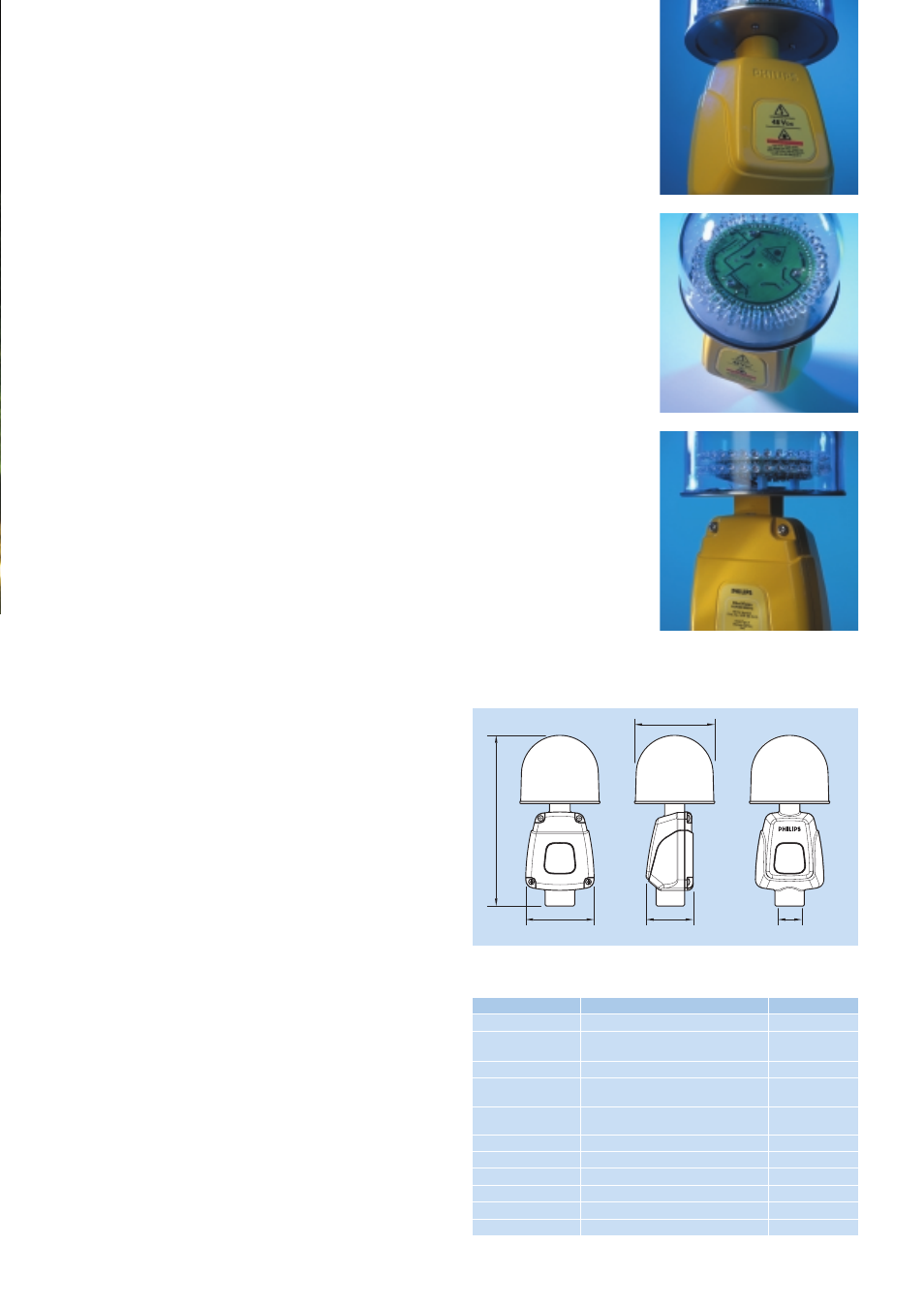

Dimensional Sketches
Ordering Data
dimensions in mm
