9

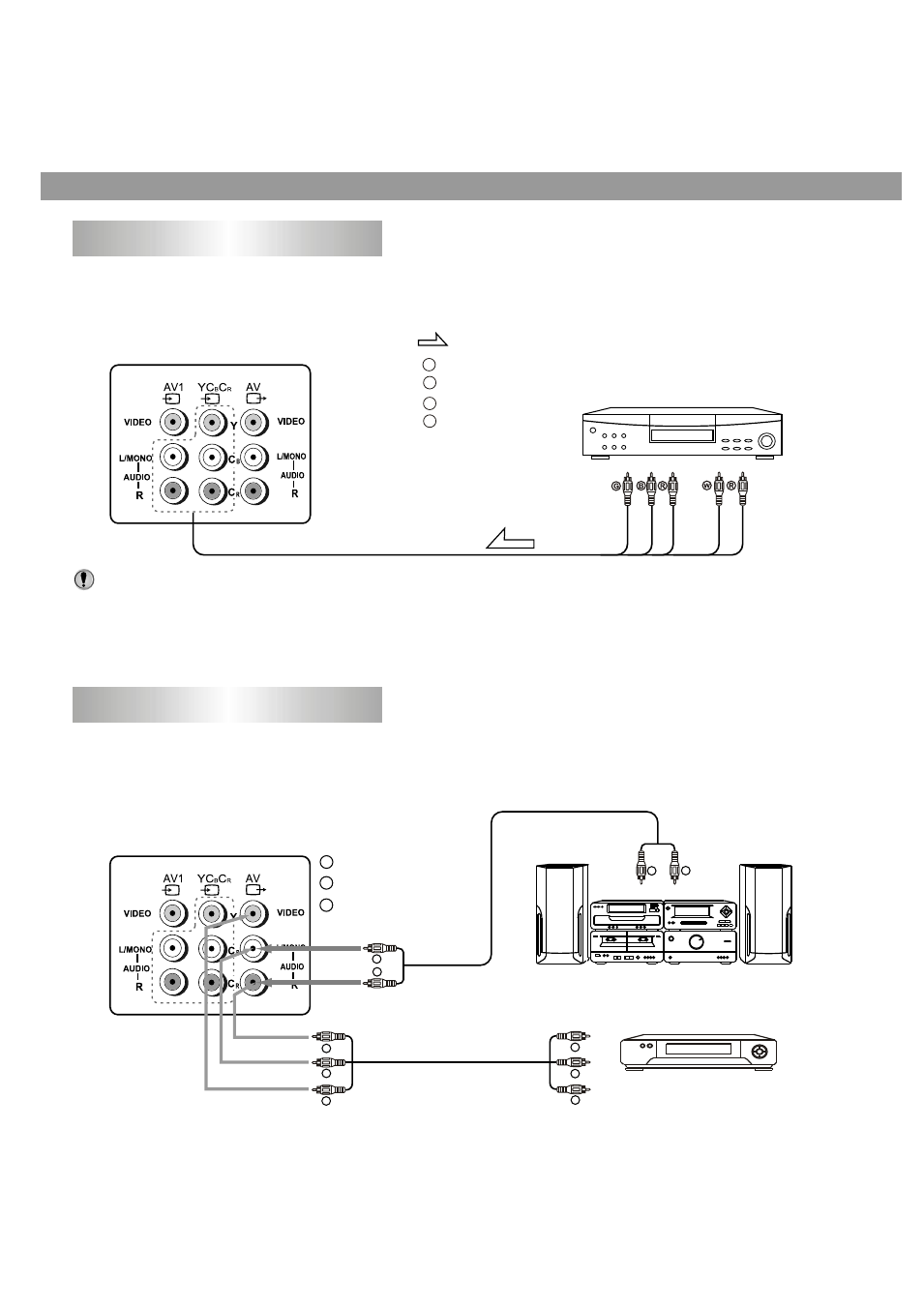

The figure below shows how to connect the DVD input terminals of the TV set to the DVD
Player, Laser Disk Player, etc
TV SET REAR
Notes:
1. Both the C
R
terminal and the audio R terminal are red for easy identification. Make sure
they are correctly connected.
2. DVD and AV1 use the same group of audio input terminals.
3. DVD has priority over AV1 If use AV1 input, disconnect DVD.
You can connect a stereo system to the audio output terminals (RCA) on the set to enjoy a
high quality sound from the stereo system. You can also connect the AV output terminals
to VTR to record TV programs being displayed on the screen.
TV SET REAR
To external input
Stereo System
To audio inputs
(Another VTR for recording)
To video input
: Yellow (video)
: White (audio L/MONO)
: Red (audio R)
W
Y
R
W
Y
R
W
Y
R
W
R
W R
To connect AV output terminals
DVD Player,
Laser Disk Player etc.
Signals
:Direction of the signal
:White (audio L/MONO)
:Red (audio R, C
R
)
:Green (Y)
:Blue (C
B
)
G
B
W
R
Y C B C R R L/MONO
To connect DVD input terminals
