Functional Overview

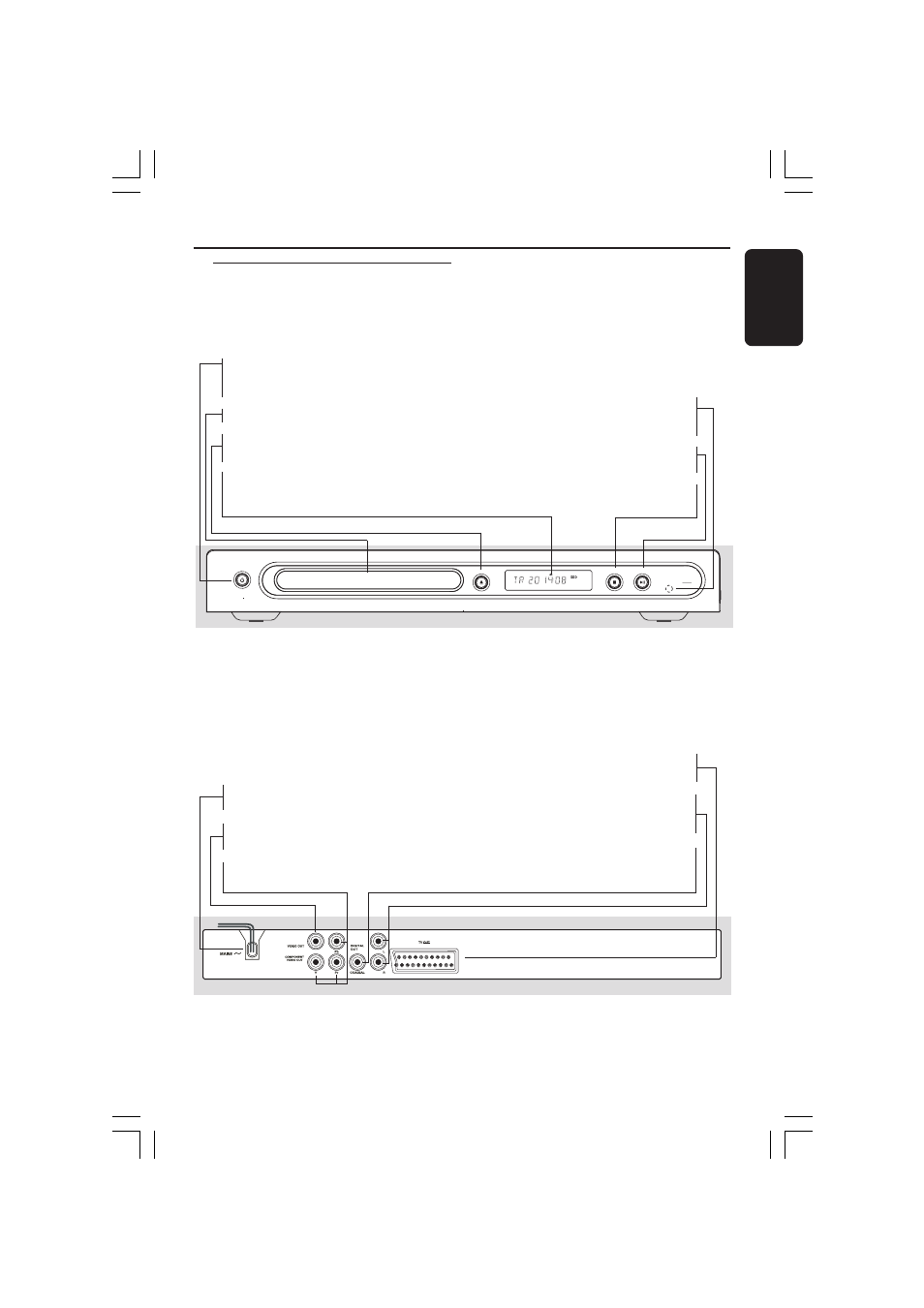

Front and Rear Panels
TV OUT
– Connect to Scart input of a TV
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier,
receiver or stereo system
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input of a
digital audio equipment
Mains (AC Power Cord)
– Connect to a standard AC outlet
CVBS (VIDEO Out)
– Connect to CVBS Video input of a TV
YPbPr (Component Video Out)
– Connect to YPbPr input of a TV
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
OPEN/CLOSE OPEN/CLOSE
MIC LEVEL
STOP STOP PLAY/ PLAY/PAUSE PAUSE
STANDBY TANDBY-ON ON
IR Sensor
– Point the remote control towards this
sensor
2; PLAY/PAUSE
– To start or interrupt playback
9 STOP
– To stop playback
STANDBY-ON B
– To switch the DVD Player to Standby
mode or ON
Disc tray
OPEN/CLOSE /
– Open/Close the disc tray
Display
– Shows the current status of the DVD
Player
