Replace the Battery
You need a #2 Phillips screwdriver and a #2 flathead screwdriver for this installation.

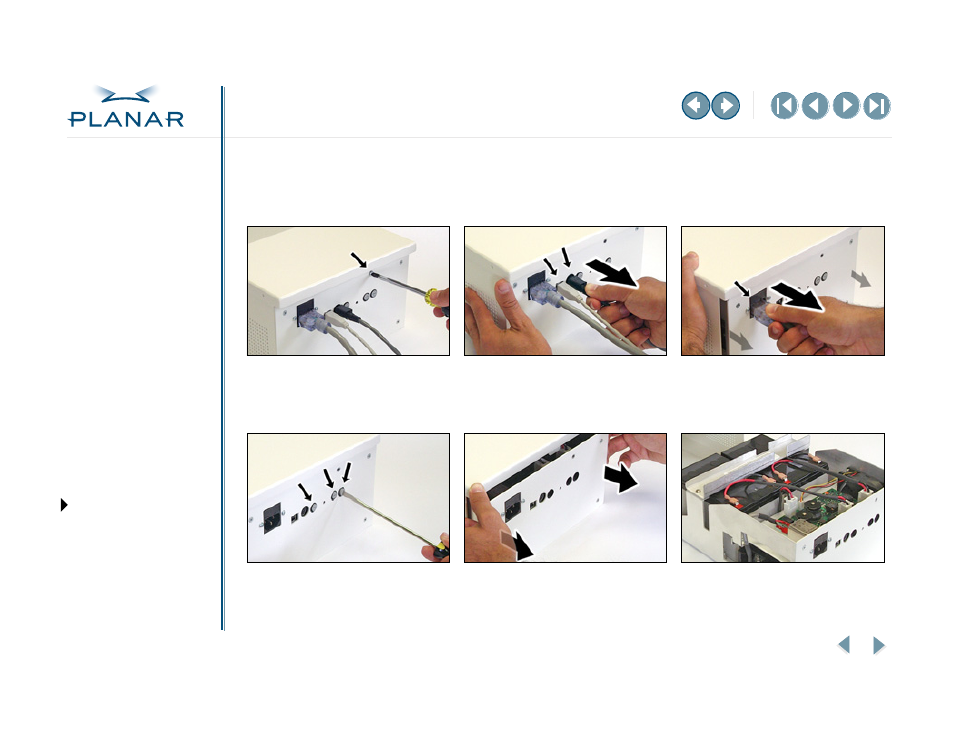

To remove the battery tray
1 Use the Phillips screwdriver to remove
the two screws from the front of the
enclosure. Then remove the screw
(top center) from the back, as shown.
2 Unplug the USB cable and the
output power cable.
3 Unplug the power cord.
4 Use the flathead screwdriver to
remove the three fuses. Make a
quarter turn counterclockwise.
5 Pull out the battery tray carefully.
Note: The battery cables may catch on
the sheet metal lip during removal.
6 Make sure the battery tray is seated
on a flat and stable surface.
