Installing the Console
25
Connecting Cables (P80)
After the console has been seated, separate the individual
cables out of the end of the cable assembly and attach them
to the appropriate circuit connectors inside the console. Refer
to the following diagram and table to identify the cables and
connectors.

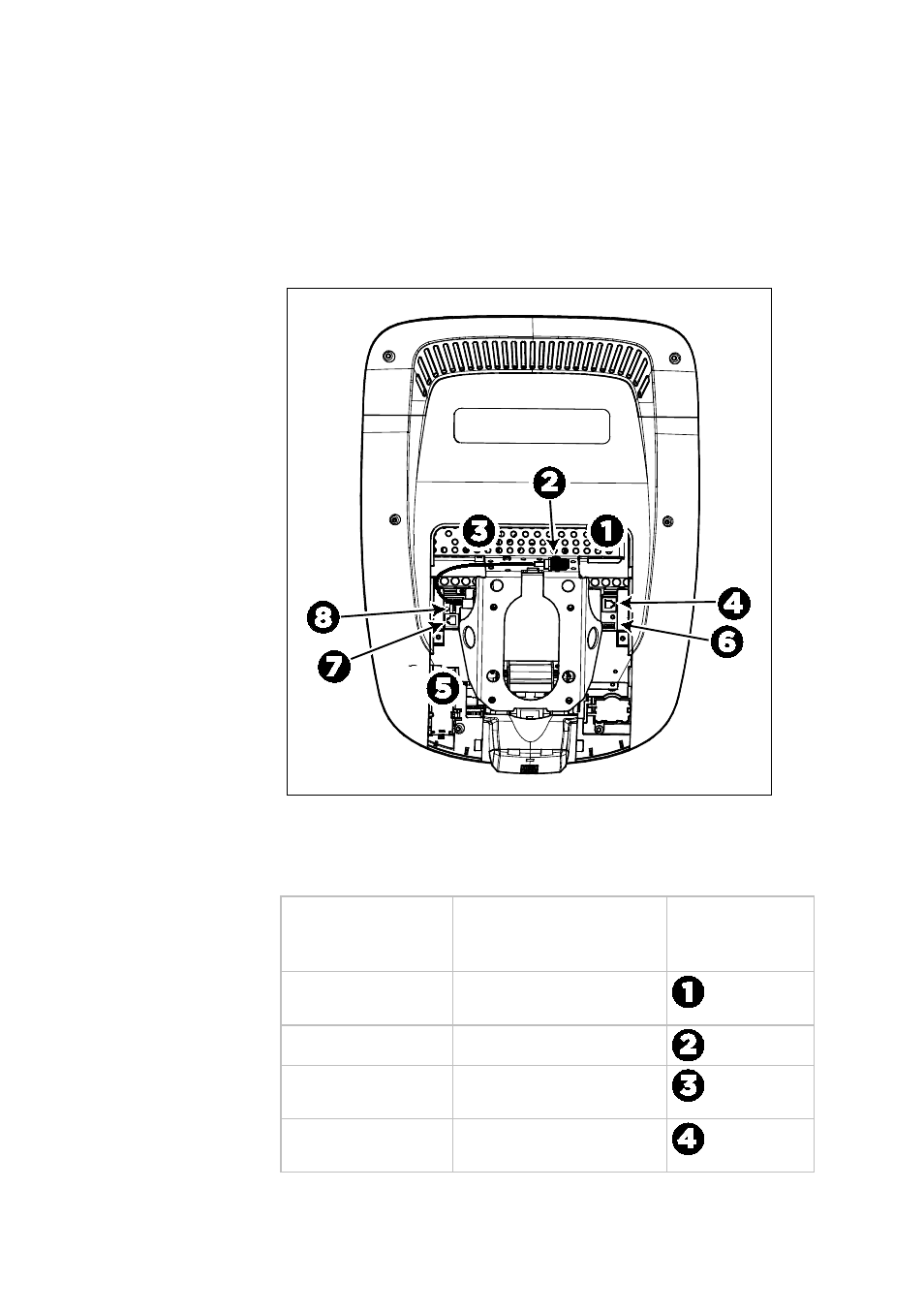

Figure 11: Cable connections, P80 console
Table 1. P80 internal cable connections
Cable Connector Type Circuit
Connector
Location
Ethernet (LAN) Eight-contact modular, on
round black cable
TV in F-type coaxial
Power Two-contact plug,
polarized and latched
Data from base unit Eight-contact modular, on
flat gray cable
