Installing the bottle holder – Precor UBK 800 User Manual
Page 21
Assembling the Exercise Bike
19
Installing the Bottle Holder
The bottle holder attaches to a plastic support that has been
mounted on the upright support at the factory.
To install the bottle holder:
1.
Position the bottle holder on its support so that the three
tabs on the bottle holder fit into the three rectangular
holes in the support.
2.
Secure the bottle holder onto its support using the two #8
x ⁵₈-inch self-tapping screws, as shown in the following
illustration.

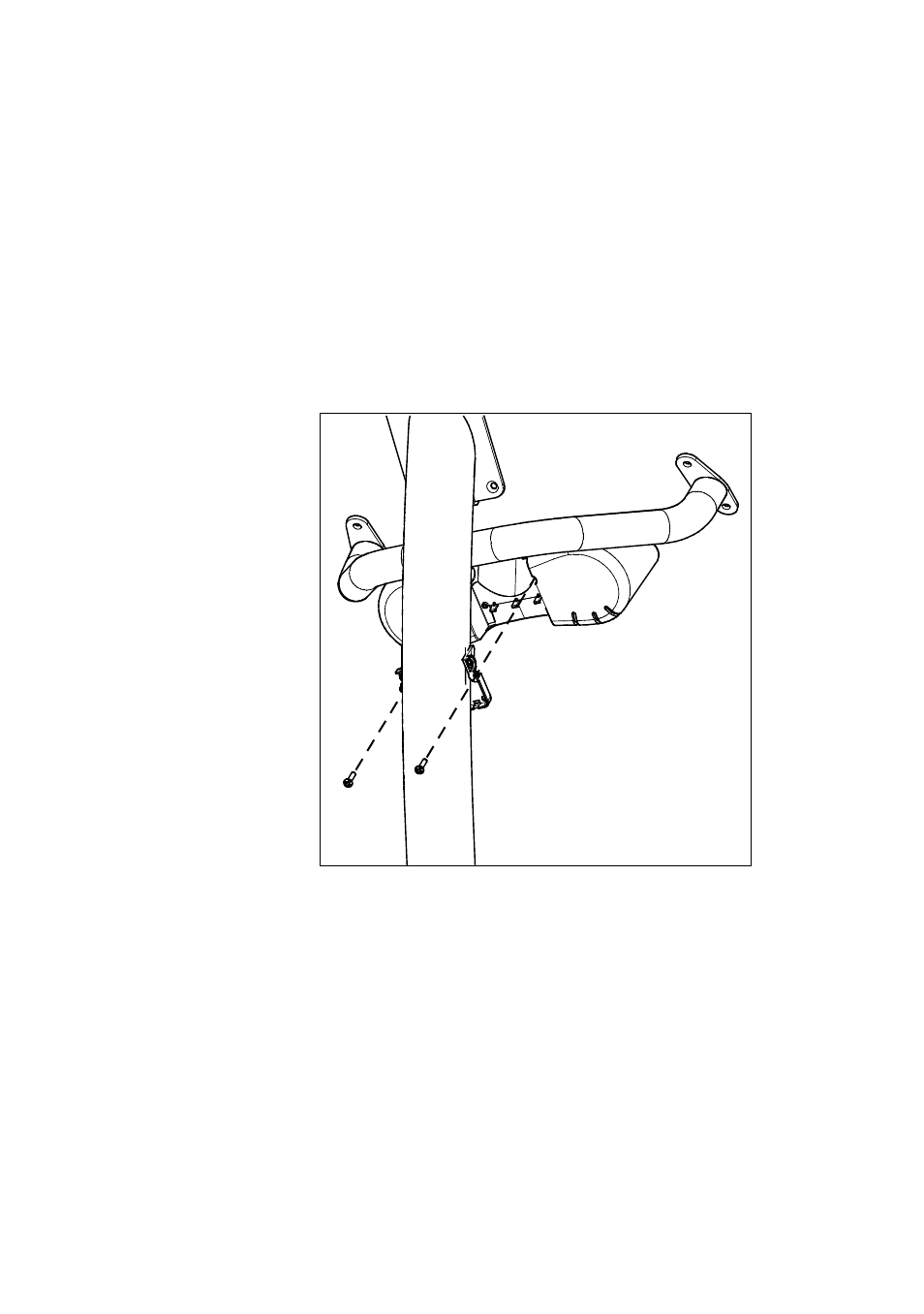

Figure 7: Installing the bottle holder
