18
Assembling and Maintaining UBK 800-Series Upright Exercise Bikes
Note: If the support is positioned correctly, it rests on a
metal tab in the upright support channel.

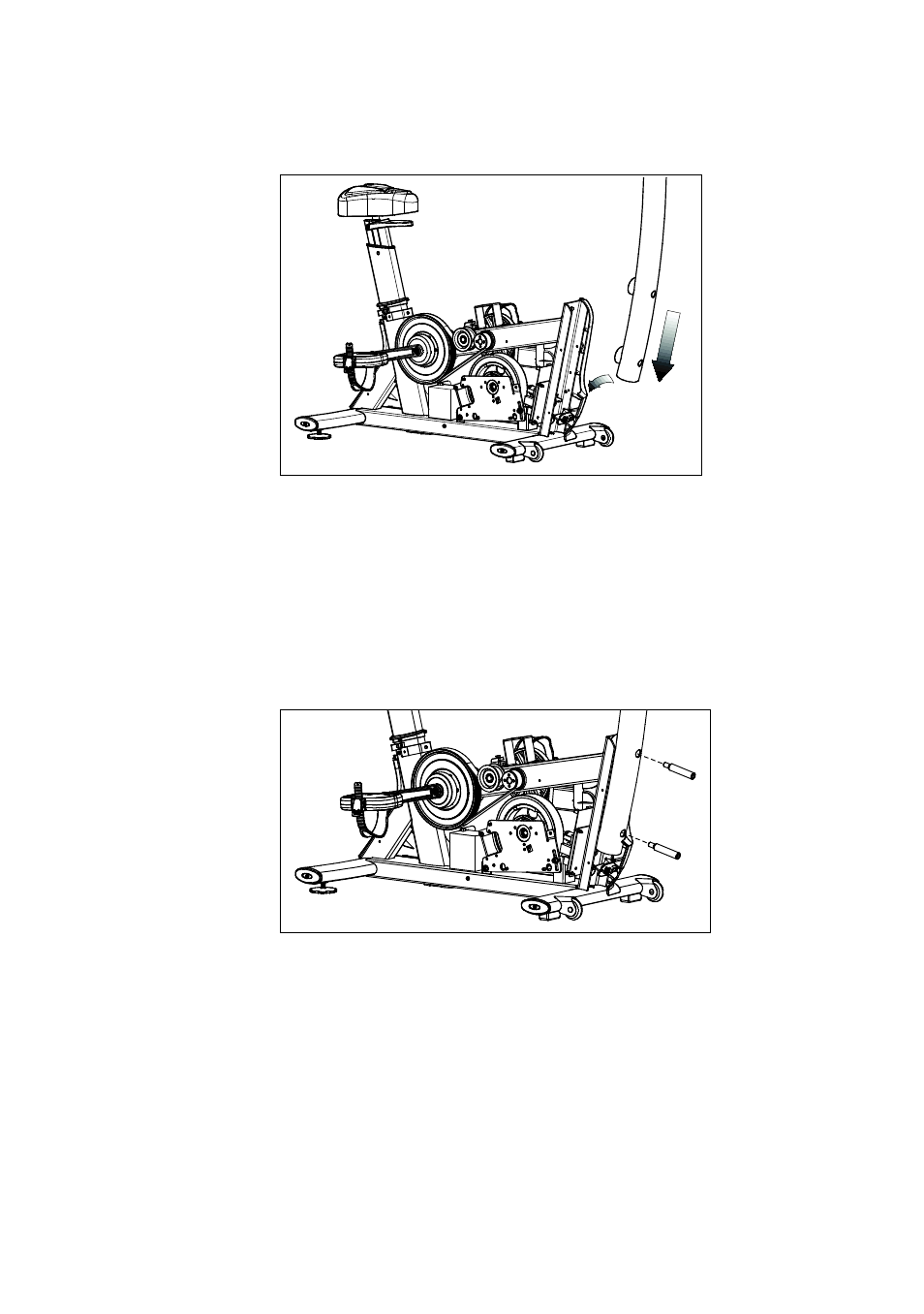

Figure 5: Upright support insertion
Important: In the following step, be extremely careful not to
trap or pinch any of the cables between the mounting screws
and their seats.
6. Insert the two upright support mounting screws through
the openings on the support and into the screw holes on
the body assembly. Tighten the mounting screws
completely using a ³₈-inch hex wrench.
Figure 6: Bolting the upright support into place
Important: In the following two steps, be extremely careful
not to trap or pinch any of the cables between the bike frame
and any of the covers.
7. Reposition the left side cover on the body assembly, then
reattach and tighten the #10 x 1-inch self-tapping screws
holding it in place.
8. Repeat the previous step to reinstall the top and rear
covers.
