Your New PYLE PPA s eries P .A.
Amplifier gives you the power and

versatility you need in a professional

sound system.

TABLE OF CONTENTS

1

Features and Controls,

2

Installation Guidelines

2

Input Connections

2

Connecting a CD, DVD or tape player or tuner

2

Connecting an equalizer or signal processor

2

Stereo or Mono Inputs

2

Speaker connecitons

3

Bridged Mode Operation

3

Connecting to standard AC power

3

Mounting the amplifier

3

Turning the amplifier on

3

Using the power LED meter

The a mplifier's wid e frequency

r espo n s e makes it s uitab l e f o r

a mplifying music o r vocal program

material. It can be used for live bands,
offic e paging syst ems, public

announcements, or a variety of other
installations.

3

Using the channel1 and channel2 output level controls

3

About the internal clip circuitry

4

Specifications
Limited warranty

Please read this manual throughly before you attempt to set up and use the amplifier. It contains a

range of installation suggestions as well as instructions to ensure safe usage. Installed properly, you
can expect years of trouble-free service from this product.

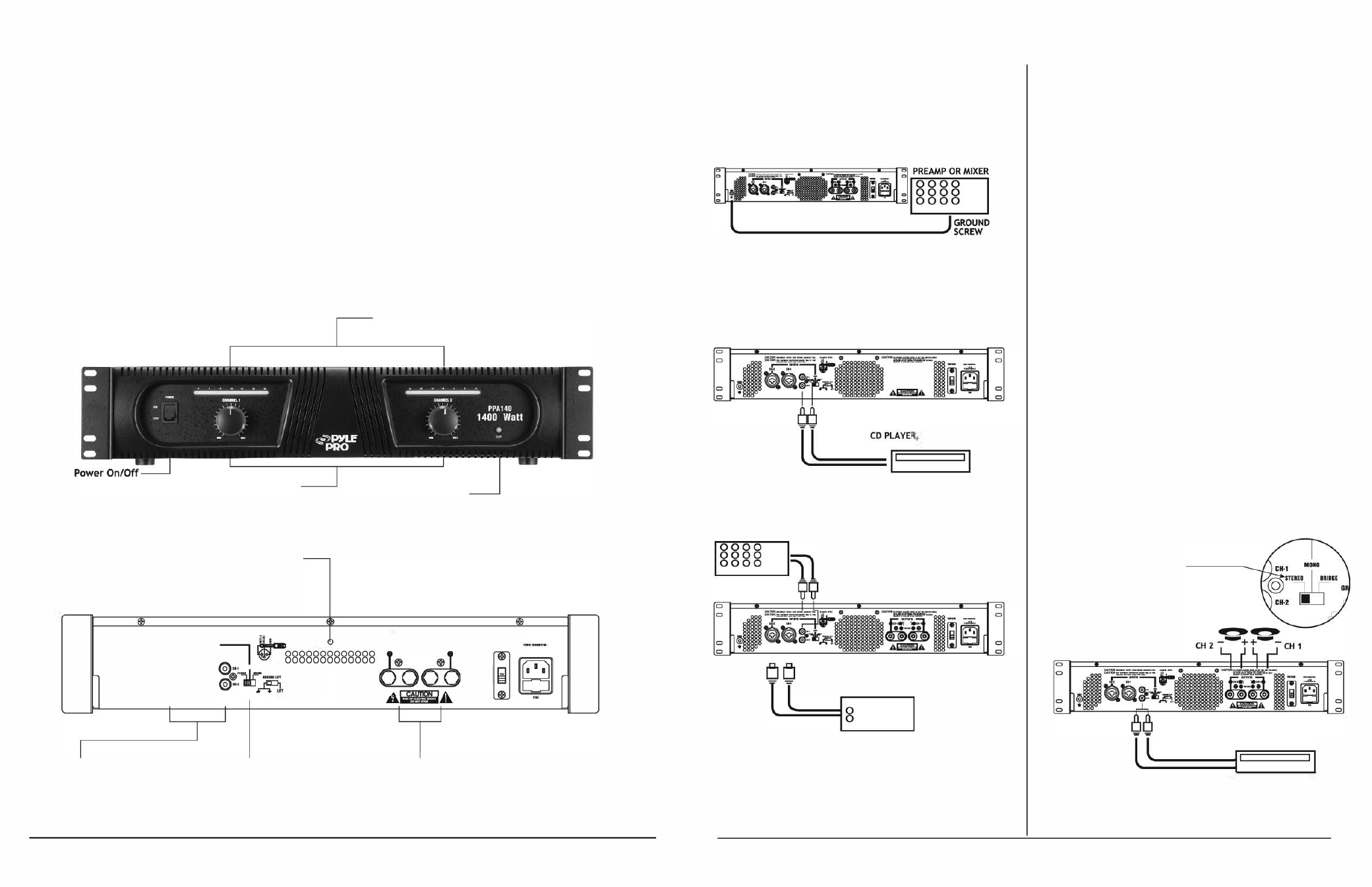

FEATURES AND CONTROLS

Channel 1 and Channel 2 Power LED Display

Indicate the output signal level for each channel.

FRONT PANEL, PPA140

Clip Indicator

Channel 1 and Channel 2
Output Level Controls

Lets you adjust the sound levels

for each channel.

These indicator illuminates when the
associated channel has been overloaded.

Fan Cooling

Cooling system is automatically activated
whenever amplifier is turned on. This forced
air cooling system rapidly exhausts interior
heat, reducing operating temperature and
aiding performance.

REAR PANEL, PPA140

C)

C)

C)

C)

CAunON:._�a�

•• ,_._,�_,�

.",

•• ,�.

@

@

CAunON'ro��_oo�

__ __

000

cAunoN:===f��f._OI'''''

0000 0000

i:=���ERlJ.' 000

0000

r--

INPUTS

00000000000

r-

OUTPUTS

--,

000

VO"AS'

00000

CH·2

CH·'

CH.2.�

�.CH.'

000

00000

QQ

000

00000

_

0000000000000

." ....

000

@§§§§§ � �

§§§§§§§§§§§§§

0

0

©

0

§§§

+

8888

0

0000000000000

000

000

08888888880

888

�"

IIlMlloMI'M"

Input Jacks
Let you connect a variety of audio
input sources via the balanced

(XLR/6.35mm phone jack

combinations) or unbalanced (RCA)
inputs.

Stereo/Mono Switch

Lets you select conventional

stereo operation with a

stereo input signal or bridged

mono input mode.

Speaker terminals
Permits hookup of A
stereo pair of speakers
or a bridged speaker via
the wire terminals.

1-PYLE PPA Amplifier Owner's Manual

C)

C)

C)

C)

INSTALLATION GUIDELINES

Connecting the GND (Ground) screw terminal
Connecting a mixer or preamplifier may cause excessive
noise or hum in the amplifier output. To prevent this,
connect one end of a low-capacitance shielded wire to the

amplifier's ground screw (on the rear panel). Then connect

the other end of this wire to the ground terminal on the
mixer or preamplifier enclosure.

LOW CAPACITANCE SHIELOEO WIRE

Input connections
These amplifiers accept a broad range of input sources,
including Compact Disc (CD) players; DVD, Cassette, Reel­
to-Reel or other tape players; Radio Tuners; Equalizers;

Signal Processors.

Connecting a CD or DVD or tape player or tuner

In a normal installation, one would use the RCA JACKS for

connecting a CD player, DVD, tape player or tuner.

...

��··

•... , ..

o 0 0 0

use

RCA

jacks

DVD , TAPE PLAYER

OR TUNER

Connecting an equalizer or external signal processor
Connect the processor's OUT to the amplifier's INPUT
connectors.

EQORMIXER

EQORMIXER

0000

8 8 8

use

XLR/6.35

mm

combo jacks

-OR-

Stereo or Mono Inputs
Your PYLE PPA amplifier can be operated in Stereo, Mono
or Bridged mode, depending on the input source. If the

input signal is mono, slide the Stereo/Mono/Bridged selector

switch to MONO and the signal will be routed through both
channels. If you wish to run the amplifier in bridged output

mode, slide the switch to Bridged.

Speaker connections
You can connect 4 Ohm, 8 Ohm or 16 Ohm speakers to
Channel 1 and/or Channel 2 of the amplifier, total speaker
impedance must not be lower than 4 Ohms per channel for

Stereo and Parallel Mono modes, and 8 Ohm for Mono Bridge

mode. If you connect two pairs of speakers, be sure to
follow these guidelines:

Speakers which are connected to the same channel are

part of a pair, and must be of the same impedance.

Speakers connected to different channels are NOT part

of a pair, and can be of different impedances.

1. Prepare the speaker wire by removing about 1 inch of

insulation from the end of the speaker wire you intend to
connect to the amplifier. Then twist the exposed wire to
secure all the wire strands.

NOTE: Use 16-gauge speaker wire for lengths up t025
feet; 14-gauge wire for lengths over 25 feet. It is
recommended that you use the shortest length of wire
possible.

2. Connect the speaker wires to the speaker's positive and
negative terminals.

NOTE: Most speaker terminals are either color-coded
or have a mark that indicates the terminal's polarity.

Usually positive terminals are red or have a plus symbol

(+),

and negative terminals are black or have a minus

symbol

(

-

)

.

3. Connect the speaker wires to the amplifier's left and

right speaker terminals according to the terminal color
polarity.

STEREO OPERATION

SWITCH IN "STEREO" POSITION

NOTE: The total speaker load
must be at least 4 Ohms per
channel in this mode.

STEREO SIGNAL SOURCE

CAUTION! Do not use

balanced and unbalanced

inputs simultaneously!!

PYLE PPA Amplifier Owner's Manual - 2
