EATON Powerware ® Energy Management System (EMS) Upgrade Kit User’s Guide
S
164201724 Rev 1 www.powerware.com 49
Chapter 4
Communication
This section describes the communication features of the Energy
Management System (EMS) Upgrade Kit (EMS−UGK):
S
Serial port (Service)
S
X−Slot card (Power Xpert Gateway Series 1000 Card)
S
Relay output contacts (Alarm Relay)
S
Programmable signal inputs (Building Alarms)
Figure 20 shows the location of the communication features.
Serial Port
(Service)
NOTE See Figure 22
on page 52 for
terminal details.
Building
Alarms
Alarm
Relay
Power Xpert Gateway
Series 1000 Card

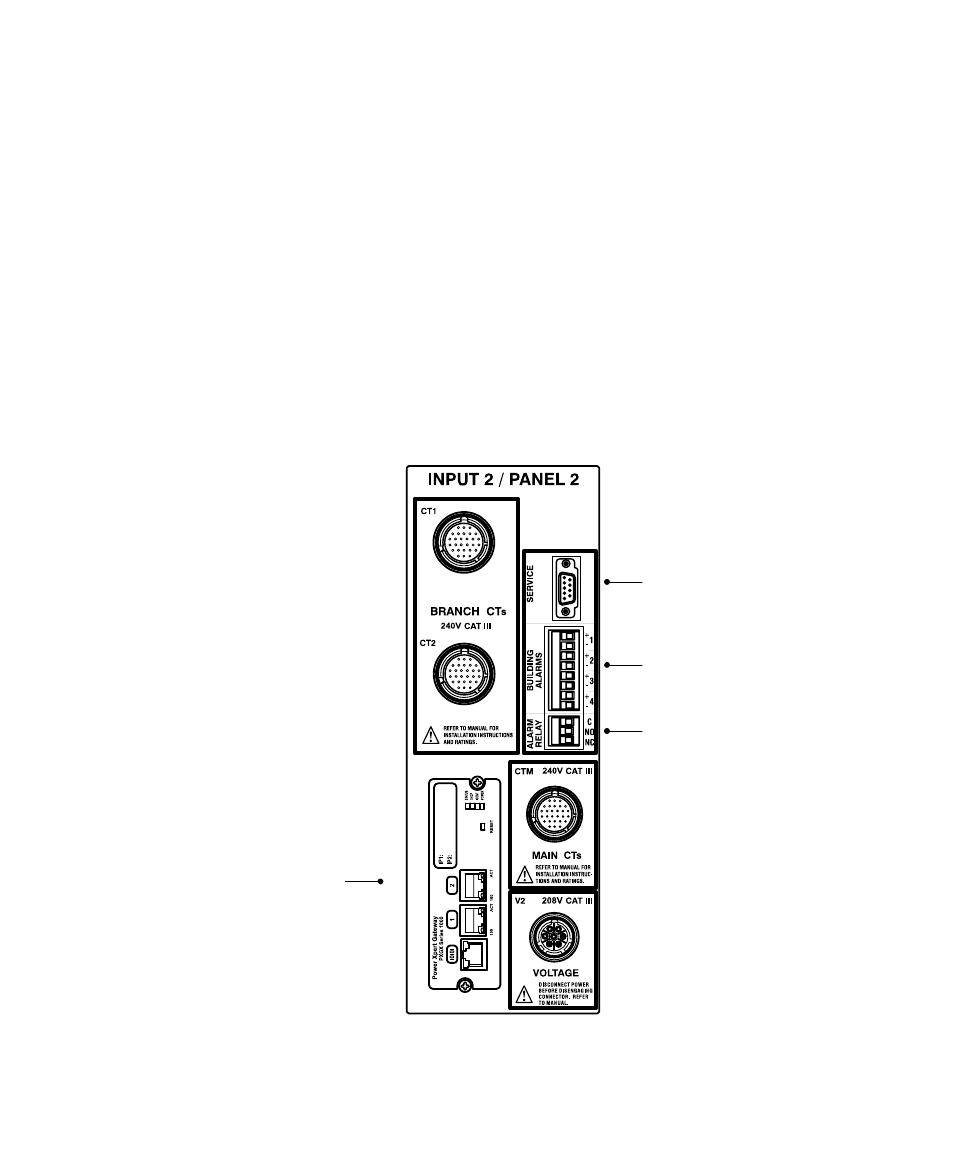

Figure 20. Communication Features (EMS−UGK−LV Model with Dual Panel Option Shown)
