INSTALLATION
EATON Powerware ® Energy Management System (EMS) Upgrade Kit User’s Guide
S
164201724 Rev 1 www.powerware.com 11
3. Attach the mounting bracket to the wall with appropriate wall
anchors (not supplied). See the mounting template in Figure 3.
Verify that at least two wall anchors attach to studs within the wall.
376.5 mm
(14.82")
152.4 mm
(6.00")
152.4 mm
(6.00")
226.0 mm
(8.90")
283.5 mm
(11.16")
16.8 mm
(0.66")
∅ 12.7 mm
(0.50") TYP ∅ 5.3 mm
(0.21") TYP

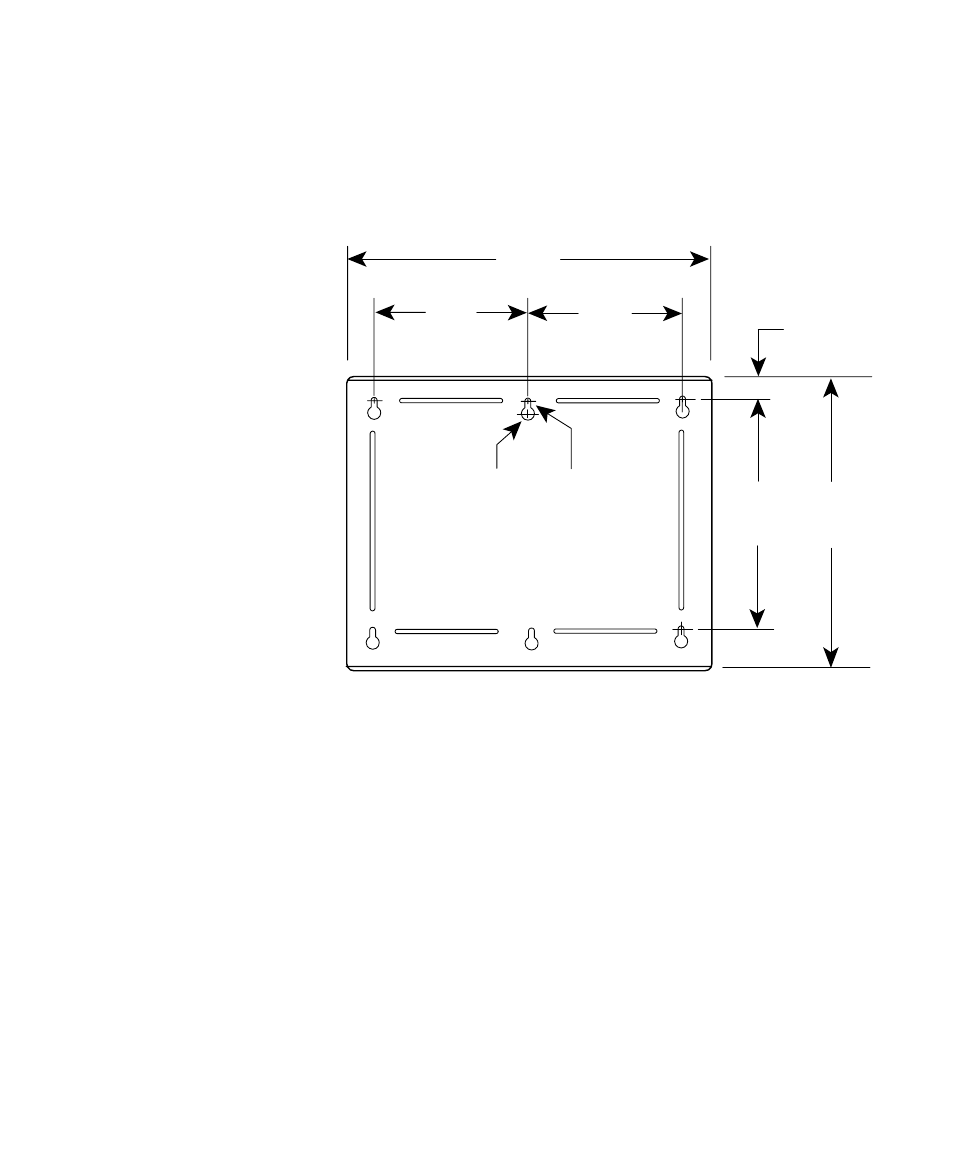

Figure 3. Mounting Template
4. Slide the loosened front screws on the electronics module into the
slots on the mounting bracket.
5. Verify all screw holes are aligned. Reinstall the four screws
removed in Step 2, but do not fully tighten. See Figure 2.
6. If installing the optional conduit box, continue to Step 7. Otherwise,
proceed to Step 11.
7. Remove the front plate from each conduit box. Retain the plates
and screws for later reinstallation. See Figure 4.
