OPERATION
EATON Powerware ® Energy Management System (EMS) Upgrade Kit User’s Guide
S
164201724 Rev 1 www.powerware.com 39
Display Functions
The LCD displays the Eaton Powerware logo. Press any button to
activate the mimic screen and menu options (see Figure 19). The mimic
screen shows a real−time graphical representation of the operating
status of the system. At the top of the screen, an information line cycles
through displays of information such as the date and time and any active
alarms or events.
To select a menu option, press the button below the option name.
When available:
S
Use the and buttons to scroll through a listing of information.
S
Use the and buttons to select another item on the screen to
view or change.
S
Use the
+
or
—
button to increase or decrease a selected value.
S
Press the button to return to the previous menu.
NOTE After making configuration changes, you can save your changes immediately by
pressing the Reset button on the Power Xpert Gateway Card installed in the X−Slot
communication bay. The card resets automatically after five minutes.
The backlit LCD automatically dims after a long period of inactivity. Press
any button to restore the screen.
EATON EMS−UGK
PROFILE
ME-
TER
EVENT
S
SET-
UP
000.0
000.0
000.0
000.0
000.0
000.0
Input 2 / Panel 2 Input 1 / Panel 1 Unit Name
EMS
PROFILE METER EVENTS SETUP

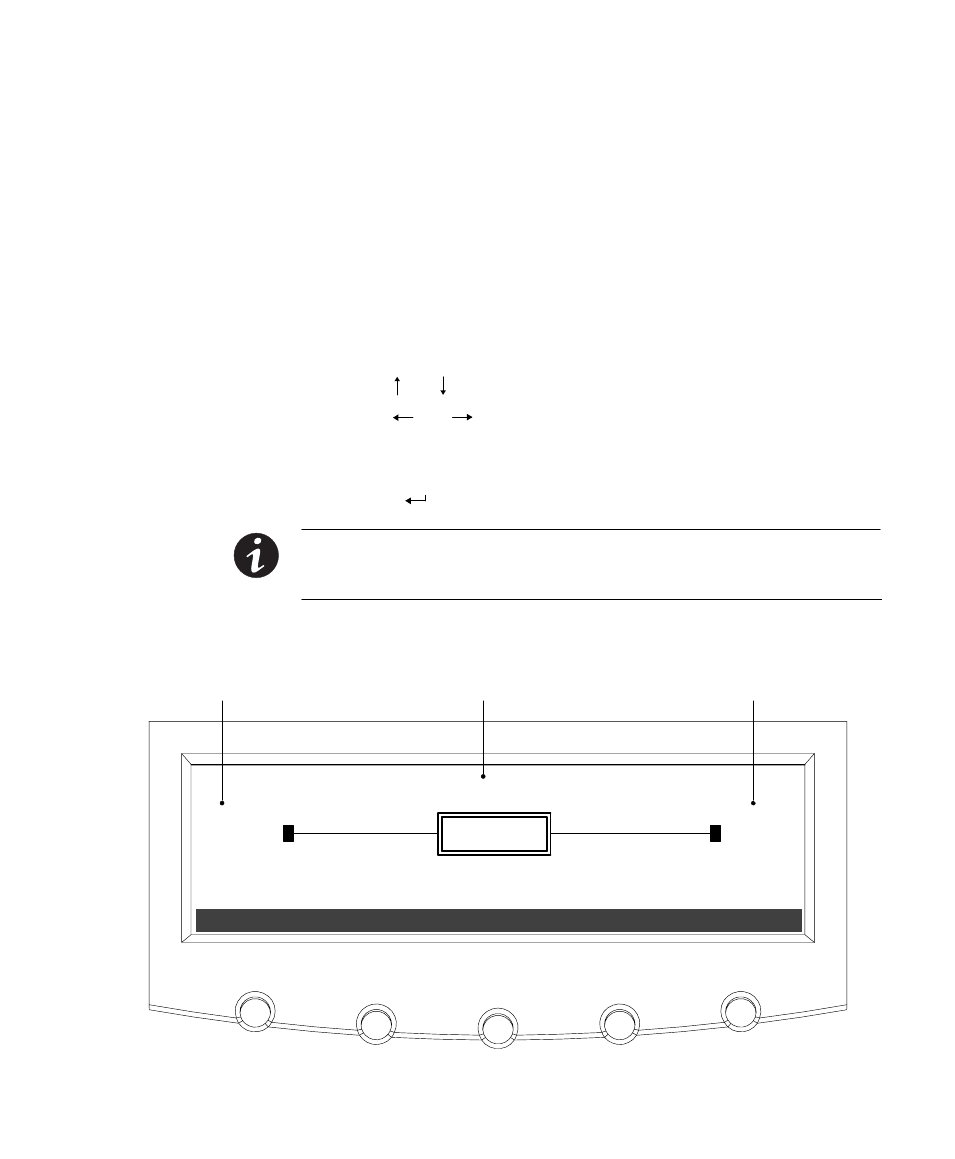

Figure 19. EMS−UGK Mimic Screen and Main Menu
