INSTALLATION
EATON Powerware ® Energy Management System (EMS) Upgrade Kit User’s Guide
S
164201724 Rev 1 www.powerware.com 10
Installing the Hardware
NOTE Review the wiring planning requirements in Step 3 on page 14 as an aid to locating
an appropriate site for the EMS−UGK.
To install the EMS−UGK on a wall:
1. Verify that the wall on which the EMS−UGK is to be mounted meets
the recommendations listed in Table 1.
Table 1. Wall Specifications (Customer−Supplied Components)
Component Specification
Wall surface and
wall anchors Sufficient to support the weight of the EMS−UGK and installed
cables (see Table 12 on page 57 for weight specifications)
Clearance around
electronics module Above: 102 mm (4") [152 mm (6") recommended]
Below: 102 mm (4")
Sides: 152 mm (6")
2. Loosen the four front screws, and remove the four rear screws.
Remove the mounting bracket from the electronics module. Retain
the bracket and four removed screws. See Figure 2.
M4 10 screws
(8 places)

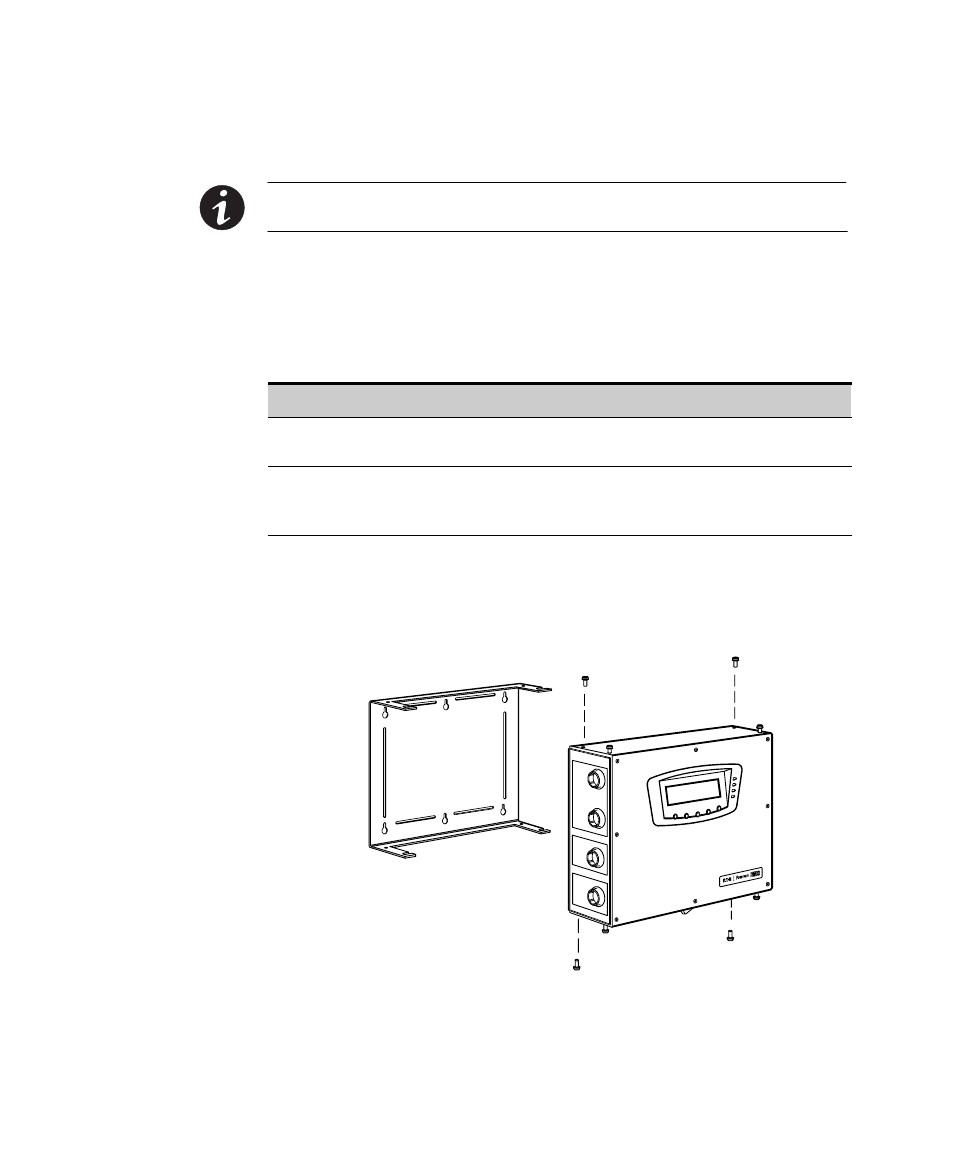

Figure 2. Mounting Bracket and Electronics Module (with Optional Display)
