Power supply
Using the BP-90 type battery pack
O Do not pull the rubber cap forcefully.
O
When mounting the battery case, take care not to
pinch the connecting cord.
4

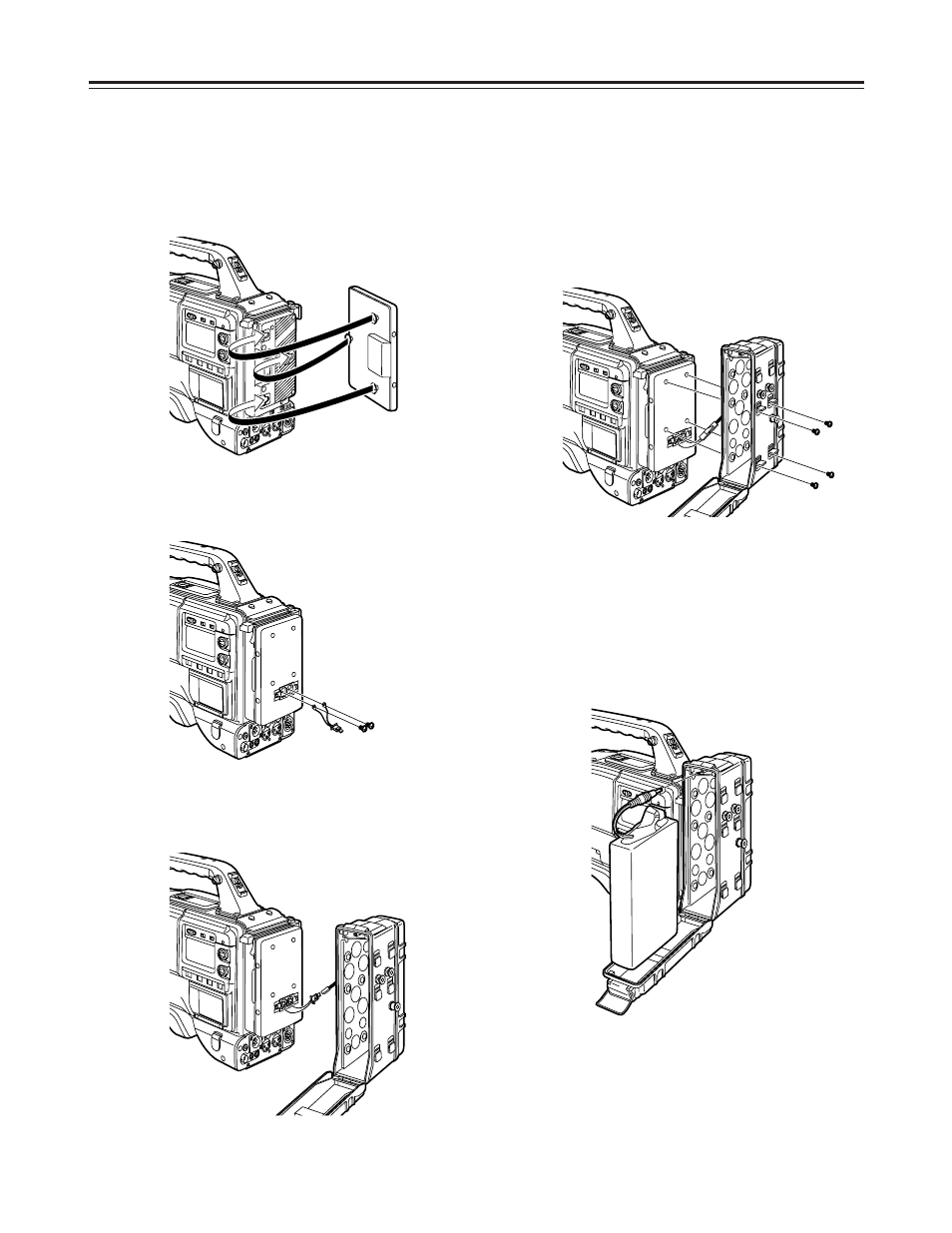

Attach the AU-M402H battery case.
Open the battery case cover, and raise it above the
rubber cap: screw holes will now be visible.
Tighten the screws using a screwdriver, then
attach the case to the NP/BP adapter plate and
tighten the screws fully.
5
Connect the plug on the battery pack to the
connector inside the case, and insert the battery
pack.
Before connecting or disconnecting the plug, be
absolutely sure to turn off the unit’s power.
3
Connect these connectors with the connector on
the AU-MA402H battery case.
1
Attach the NP/BP adapter plate.
Insert it in the direction shown by the arrows, and
slide it into place.
2
Attach the connectors provided with the NP/BP
adapter plate to the positions shown in the figure.
