6.3 OPERATING LINE LOOPBACK (LL)
The Line Loopback (LL) test checks the operation of the local Model
2707/I, and is performed separately on each unit.

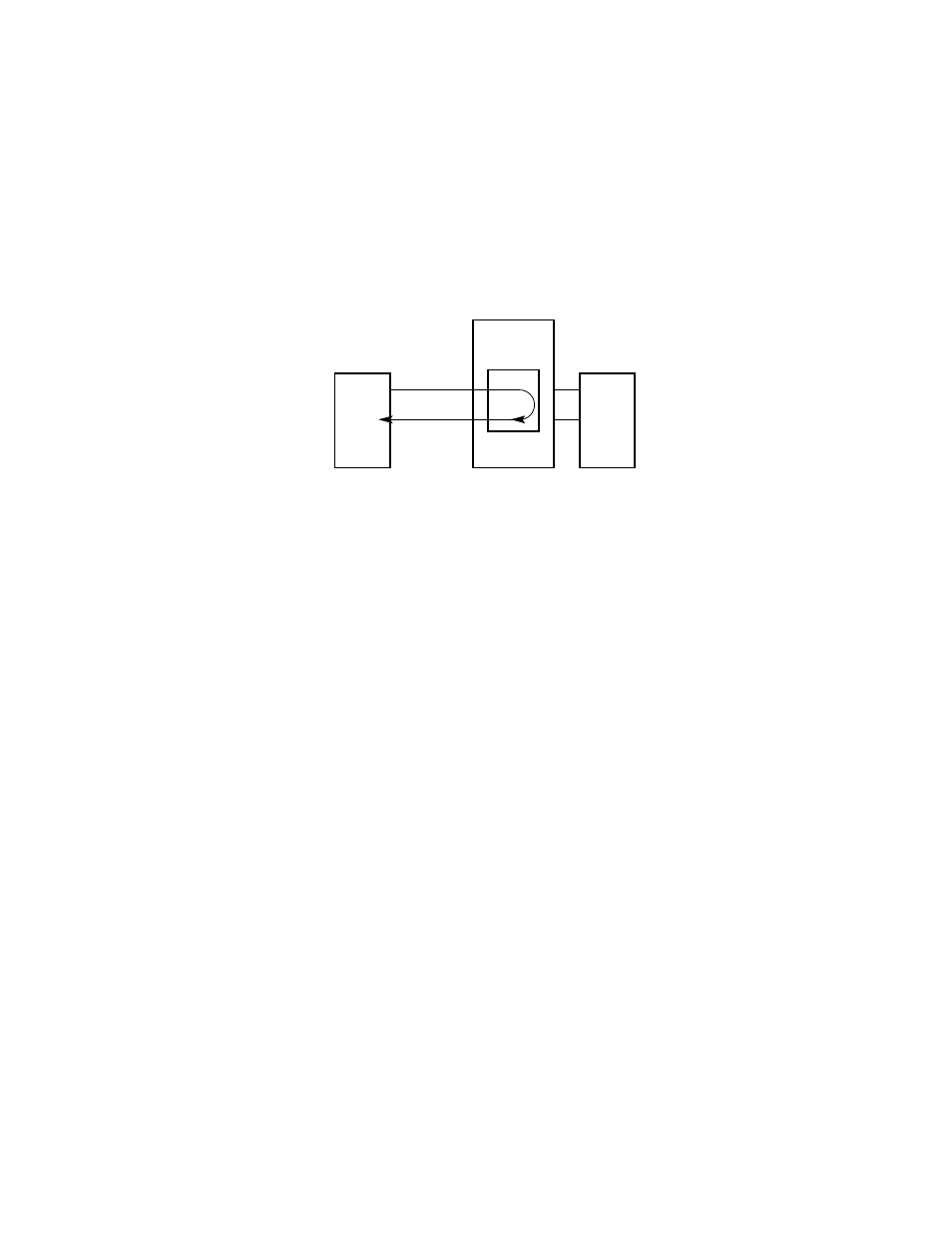

Figure 12. Line loopback for a network termination application
To perform an LL test, set DIP switch S1-2 to On . The TM LED will be lit
while the unit is in loopback test mode.
Model
2707/I
Network
Clocking
Cable Span
2 Mbps G.703
Network
G.703 NTU
Model 2707/I
Clock/
Data
Clock/
Data
Data
Ethernet
Device
