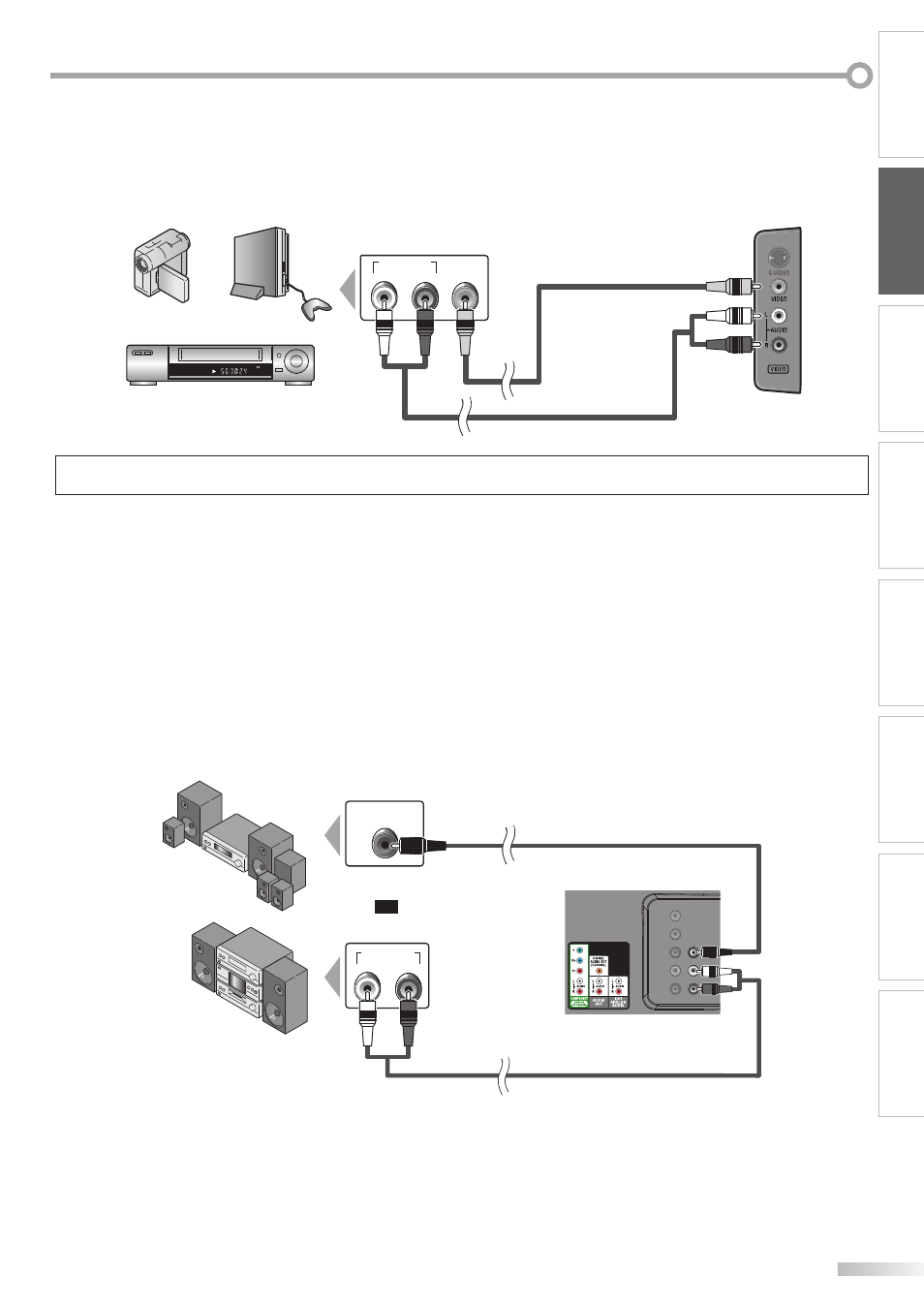

[Video Connection]
Video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit’s Video Input jack, connect audio cables to the Audio L/R jacks below the Video connector.
When the audio jack of the video device is monaural, connect an audio cable to the Audio L Input jack.
e.g.)
AUDIO OUT
R L
VIDEO
OUT
STEREO STAND-BY
Note:
• If you connect to the S-Video Input jack and the Video Input jack at the same time, the S-Video connection will have priority.
[Audio Output Connection]
 Digital (for digital broadcasting and DVD functions only)
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
Use a digital audio coaxial cable to connect the unit to external digital audio devices.
 Analog (for both analog and digital broadcasting)
If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio.
Use an audio cable to connect the unit to external analog audio devices.
e.g.)
DIGITAL AUDIO
COAXIAL IN
AUDIO IN
R L
Dolby Digital
decoder
digital audio coaxial cable
rear of this unit
stereo system
or
audio cables
camcorder video game
VCR
video cable
audio cables
side of this unit
