14
EN
P
REPARATION

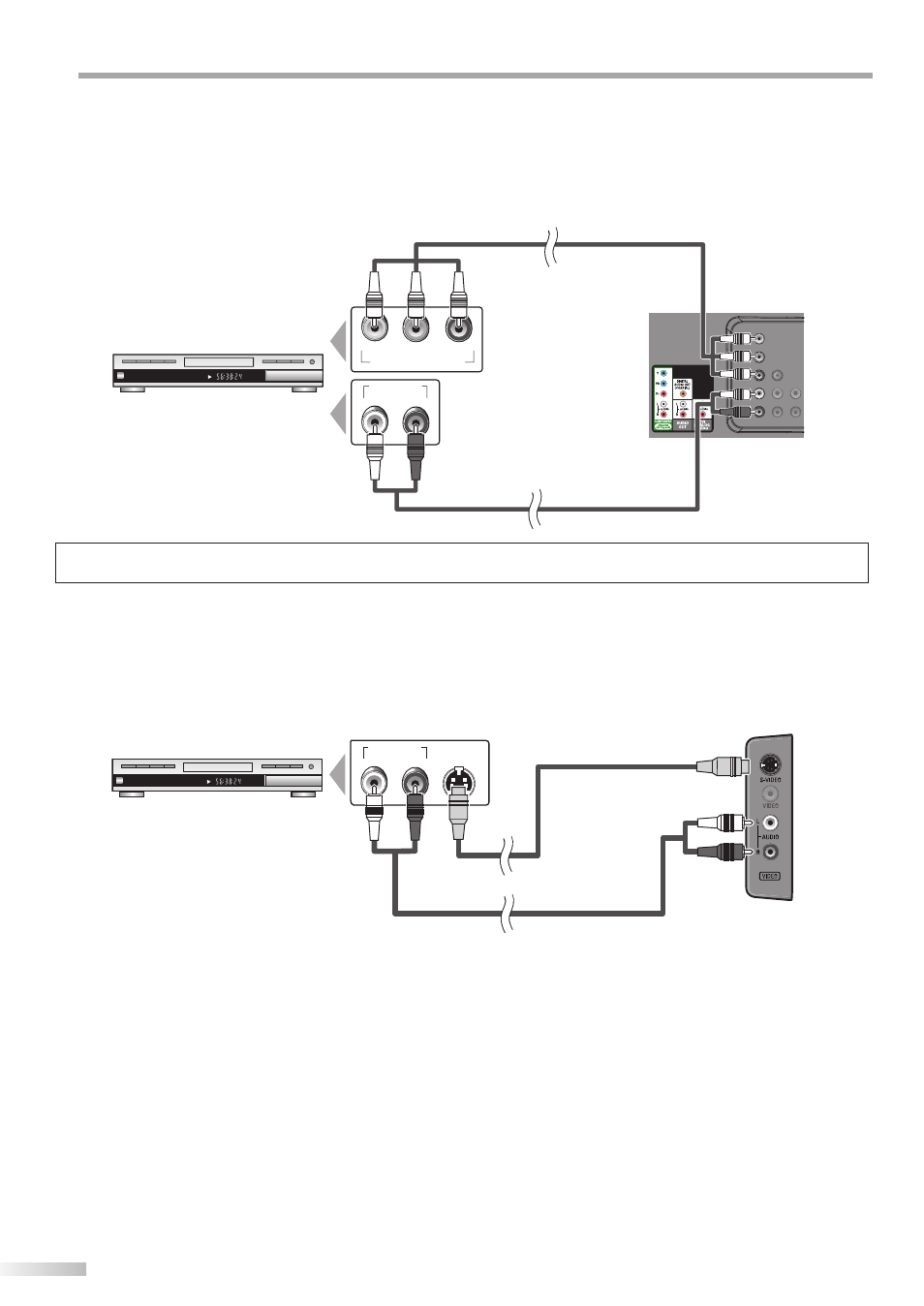

[Component video Connection]
Component video connection offers better picture quality for video devices connected to the unit.
If you connect to the unit’s Component video Input jack, connect audio cables to the Audio L/R jacks below the
Component video connector.
e.g.)
COMPONENT VIDEO OUT
Pr/Cr Pb/Cb Y
AUDIO OUT
R L
CHAPTER 15
REPEAT A-B
TITLE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
[S-Video Connection]
S-Video connection offers good picture quality for video devices connected to the unit.
If you connect to the unit’s S-Video Input jack, connect audio cables to the Audio L/R jacks below the Video connector.
e.g.)
CHAPTER 15
REPEAT A-B TITLE 5
AUDIO OUT
R L
S-VIDEO
OUT
(red) (blue) (green)
BD/DVD recorder with
the component video output jack
component video cables
(red / blue / green)
audio cables
rear of this unit
BD/DVD recorder, camcorder and
VCR with the S-Video output jack
S-Video cable
audio cables
side of this unit
(red) (red) (red)
(blue) (blue) (blue)
(green) (green) (green)
