 External Device Connection

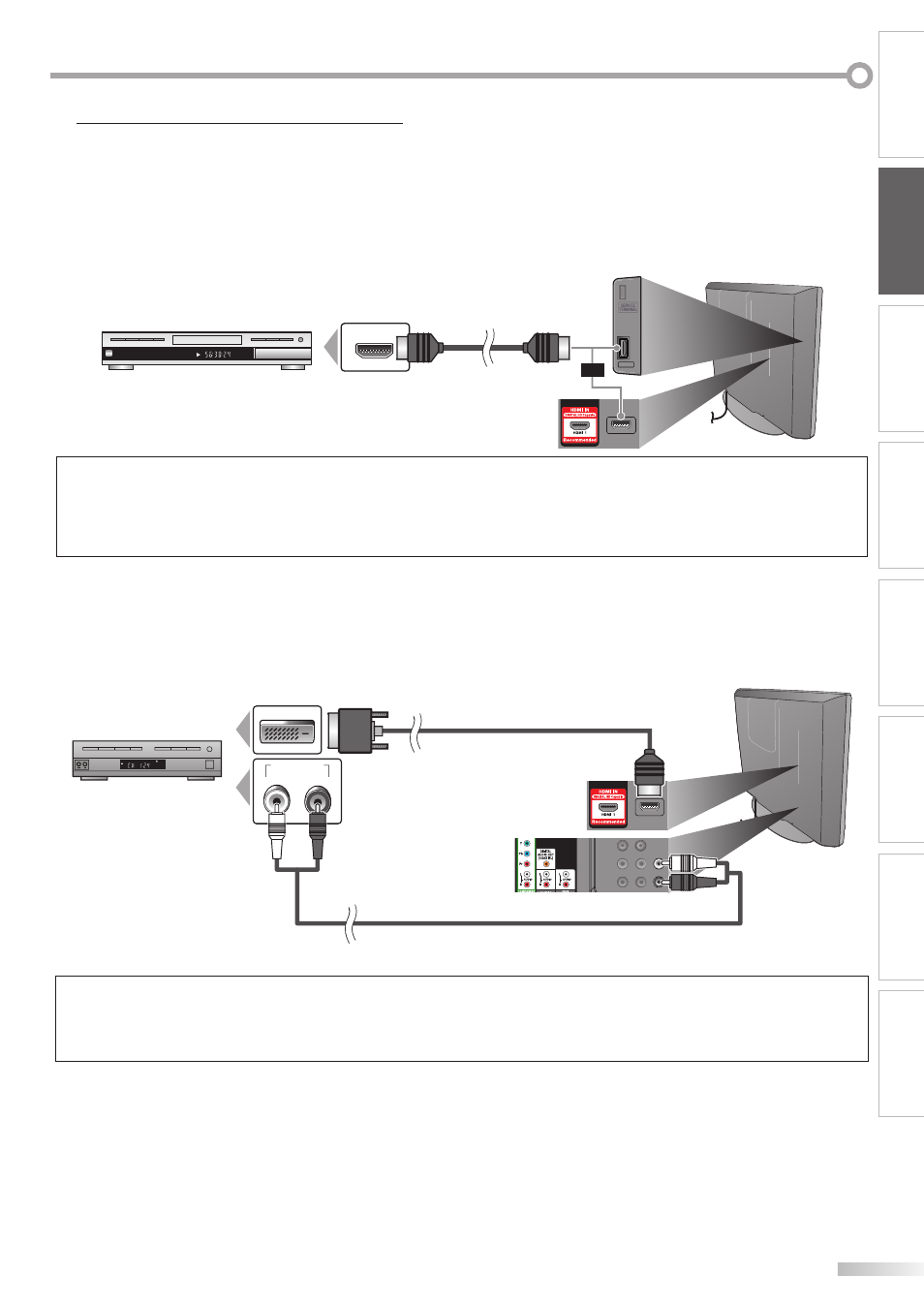

[HDMI Connection]
HDMI connection offers the highest picture quality.
HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio
through a single cable.
e.g.)
HDMI 2 HDMI 2
SERVICE
TERMINAL
HDMI OUT
CHAPTER 15
REPEAT A-B
TITLE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select “PCM” for the digital audio of the device you connected or check the HDMI audio setting.
There may be no audio output if you select “Bitstream”, etc.
• This unit only accepts signals in compliance with EIA861.
[HDMI-DVI Connection]
Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.
e.g.)
DVI OUT
AUDIO OUT
R L
STEREO
PCM
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• HDMI-DVI connection requires separate audio connections as well.
• Audio signals are converted from digital to analog for this connection.
• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B.
HDMI cable
BD/DVD recorder
with the HDMI output jack
side or
rear of this unit
To HDMI1
input jack only
HDMI-DVI conversion cable
cable receiver or satellite box
with the DVI output jack
audio cables
rear of this unit
or
