Clutch System
n

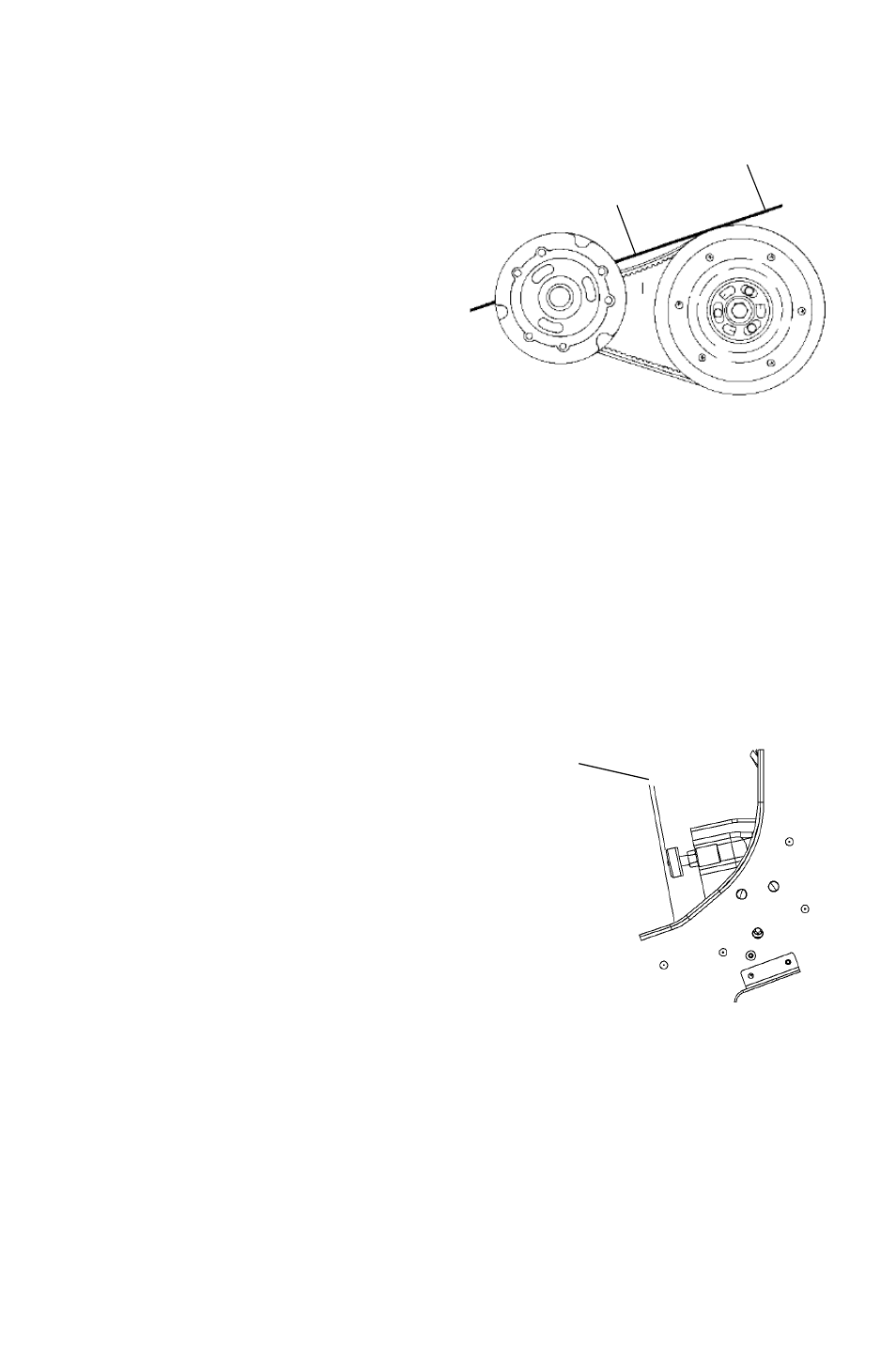

Drive Belt Deflection
Measure belt deflection with both
clutches at rest and in their full
neutral position.
Place a straight edge (1) on the
belt and apply downward pressure
while measuring at point 2. This
measurement should be 1 1/4I
(3.2 cm).
Drive Belt Adjustment
1. Install the L-wrench into the open threaded hole in the outer sheave
of the clutch (see page 83). Turn the wrench clockwise slightly to
remove pressure from the sheaves.
2. Loosen the 7/16I jam nut.
3. Using a 1/8I Allen wrench, turn the set screw inward (clockwise) to
increase the distance between the sheaves or outward (counter-
clockwise) to decrease the distance.
4. Tighten the jam nut. Store the L-wrench in the tool kit.
Torque Stop
Periodically check torque stop
clearance. With clutches in
proper alignment, the torque
stop clearance should be
.010I-.030I (.25-.75 mm)
from the engine case.
Adjust if necessary, and lock
the jam nut.
1
2
.010
I
-.030
I
(.25-.75 mm)
