Page - 4 - Installation Manual
Features
Congratulations on the purchase of your new Premier Mounts Polaris™ Universal Projector Mount. The
projector mount can be configured for ceiling installations. The Polaris™ features our exclusive MagnaGuide™
Technology which assists the installer for quicker installation times and peace of mind.

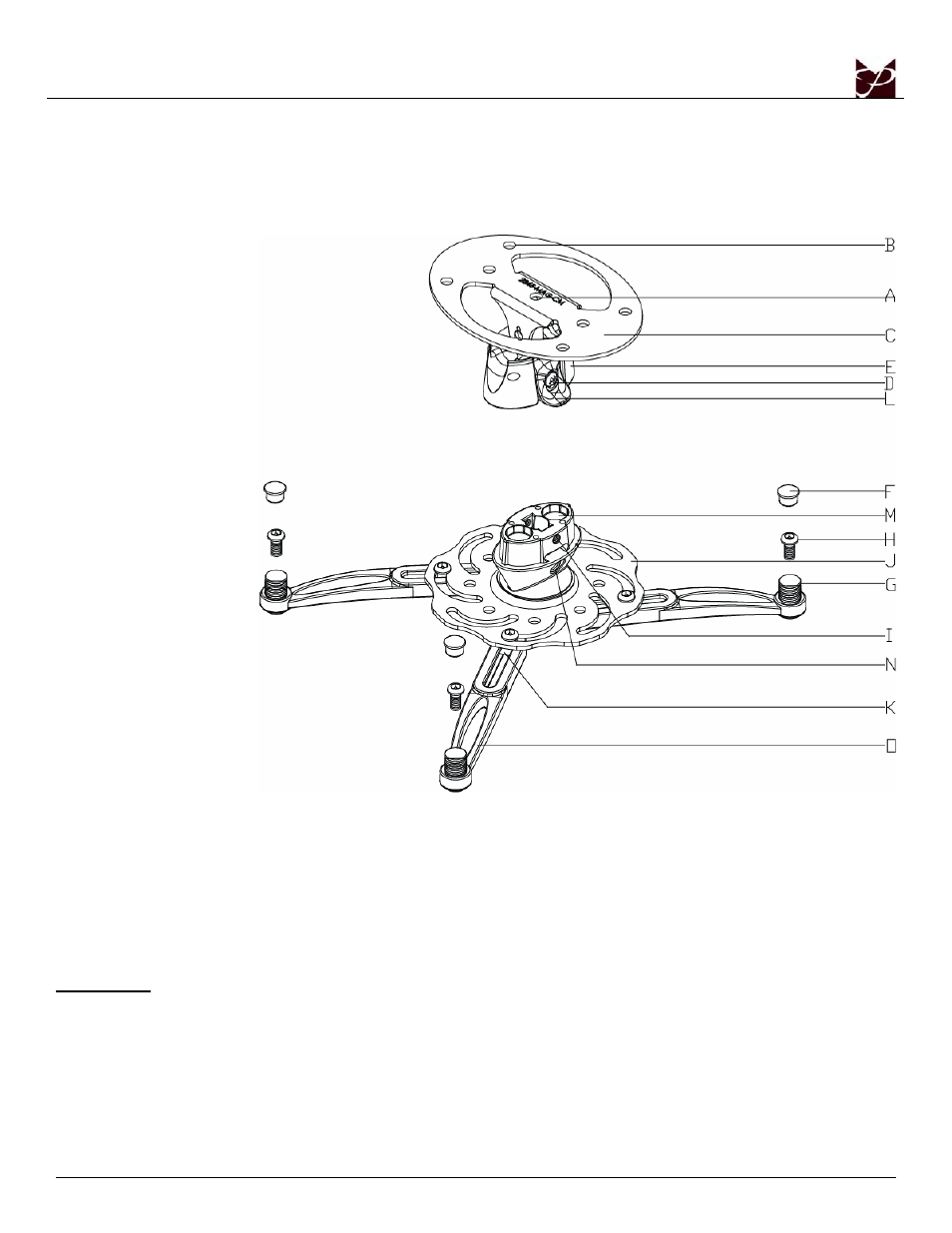

A Single Wooden Stud
Mounting Points
B Solid Structure
Mounting Points
C Ceiling Plate
D M4 x 12mm Security
Screw and Star Washer
E MagnaGuide™ - Upper
Assembly
F Barrel Cap
G Leveling Barrel
H Mounting Hardware
I MagnaGuide™-Lower
Assembly
J Projector Plate
K M6 Square Nut
L
M
N
O Locking Tab
Magnets
Radial Glide™ Set
Screw
Mounting Leg
Selecting the Proper Mounting Hardware
1. Invert the projector and locate the mounting points.
2. Test each size of the screws provided.
3. The correct screws should thread easily into the mounting point and not pull out when pressure is applied.
WARNING: DO NOT OVERTIGHTEN YOUR MOUNTING SCREWS TO THE PROJECTOR CHASIS.
USING THE INCORRECT SCREW DEPTH MAY CAUSE DAMAGE TO YOUR
PROJECTOR.
